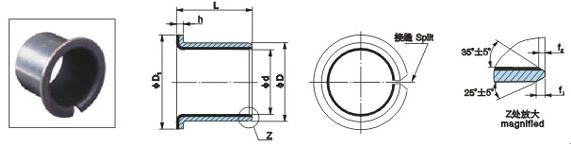

| 自润滑卷制轴承英制SF-10F3/8、SF-10F1/2、SF-10F5/8、SF-10F3/4、SF-10F7/8、SF-10F1、SF-10F1 1/4、SF-10F1 1/2、SF-10F1 3/4 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
尺寸Norminal Bearing Bore |
Recommended |
内径Installed Bearling I.D. |
法兰尺寸Nominal Flange O.D. |
法兰厚度Flange Thick-ness(h) |
轴承长度L及轴承规格 |
|
轴径Shaft Dia. |
座孔Housing Bore |
1/4 |
3/8 |
1/2 |
5/8 |
3/4 |
1 |
1 1/8 |
1 1/4 |
2 |
|
3/8 |
0.3750 0.3740 |
0.4684 0.4691 |
0.3752 0.3779 |
11/16 |
0.052 0.044 |
06/04 |
06/06 |
06/08 |
|
06/12 |
|
|
|
|
|
1/2 |
0.5000 0.4990 |
0.5834 0.5941 |
0.5002 0.5029 |
13/16 |
0.052 0.044 |
08/04 |
08/06 |
08/08 |
|
08/12 |
|
|
|
|
|
5/8 |
0.6250 0.6240 |
0.7184 0.7192 |
0.6252 0.6280 |
15/16 |
0.052 0.044 |
|
10/06 |
10/06 |
10/10 |
10/12 |
|
|
|
|
|
3/4 |
0.7500 0.7488 |
0.8747 0.8755 |
0.7502 0.7534 |
1 1/8 |
0.068 0.060 |
|
12/06 |
12/08 |
|
12/12 |
12/16 |
|
|
|
|
7/8 |
0.8750 0.8734 |
0.9997 1.0005 |
0.8752 0.8784 |
1 1/4 |
0.068 0.060 |
|
|
14/08 |
|
14/12 |
14/16 |
14/20 |
|
|
|
1 |
1.0000 0.9988 |
1.1247 1.1255 |
1.0002 1.0034 |
1 3/8 |
0.068 0.060 |
|
|
16/08 |
|
16/12 |
16/16 |
16/20 |
|
|
|
1 1/4 |
1.2500 1.2484 |
1.4058 1.4068 |
1.2502 1.2540 |
1 3/4 |
0.083 0.075 |
|
|
20/16 |
|
20/20 |
20/24 |
|
|
|
|
1 1/2 |
1.5000 4.4984 |
1.6558 1.6568 |
1.5002 1.5040 |
2 |
0.083 0.075 |
|
|
24/16 |
|
24/24 |
24/32 |
|
|
|
|
1 3/4 |
1.7500 1.7484 |
1.9371 1.9381 |
1.7502 1.7548 |
2 3/8 |
0.098 0.090 |
|
|
28/16 |
|
28/24 |
28/32 |
|
|
| |
|
|
|
|
|
|
|
