| 滚针轴承NAO6X17X10、NAO9X22X12、NAO12X24X20、NAO12X24X12、NAO12X28X12、NAO12X28X13、NAO15X28X13、NAO15X32X12、NAO17X30X13、、NAO17X35X16、NAO20X37X16、NAO20X35X17、NAO25X40X17、NAO25X42X16、NAO25X42X32 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
 |
 |
| 轴径Shaft Diameter |
轴承型号Bearing Designation
|
重量Mass
近似Approx |

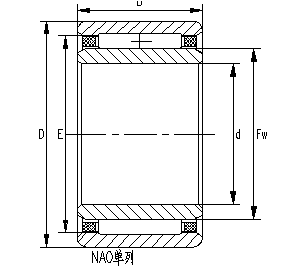

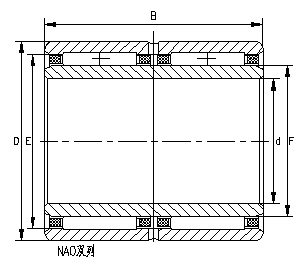

外形尺寸
Borndary Dimensions |
基本额定负荷
Basic Load Rating |
极限转速
Limiting Speed |
| d |
D |
B |
F |
E |
动 Cr
Dynamic |
静 Cor
Static |
油润滑
Oil |
| mm |
g |
mm |
N |
rpm |
| 6 |
NAO 6×17×10 TN |
13 |
6 |
17 |
10 |
10 |
13 |
3950 |
5000 |
17080 |
| 9 |
NAO 9×22×12 TN |
22 |
9 |
22 |
12 |
12 |
18 |
8800 |
7900 |
12090 |
| 12 |
NAO 12×24×13 |
29 |
12 |
24 |
13 |
16 |
20 |
8000 |
16000 |
15020 |
| NAO 12×24×20 |
43 |
12 |
24 |
20 |
16 |
20 |
10300 |
16800 |
20000 |
| NAO 12×28×12 |
38.6 |
12 |
28 |
12 |
16 |
22 |
9850 |
10500 |
19000 |
| 15 |
NAO 15×28×13 |
27.8 |
15 |
28 |
13 |
20 |
24 |
7800 |
10300 |
20600 |
| NAO 15×32×12 |
48.1 |
15 |
32 |
12 |
20 |
26 |
10400 |
14020 |
20000 |
| 17 |
NAO 17×30×13 |
39 |
17 |
30 |
13 |
22 |
26 |
9860 |
15000 |
20000 |
| NAO 17×35×16 |
70 |
17 |
35 |
16 |
22 |
29 |
16800 |
20050 |
10090 |
| 20 |
NAO 20×35×17 |
72 |
20 |
35 |
17 |
25 |
29 |
12600 |
20200 |
16000 |
| NAO 20×37×16 |
81 |
20 |
37 |
16 |
25 |
32 |
10000 |
18000 |
12700 |
| 25 |
NAO 25×40×17 |
78.9 |
25 |
40 |
17 |
30 |
35 |
10600 |
24000 |
10500 |
| NAO 25×42×16 |
83 |
25 |
42 |
16 |
30 |
37 |
13100 |
23500 |
10500 |
| *NAO 25×42×32 |
189 |
25 |
42 |
32 |
30 |
37 |
26500 |
47000 |
10500 |
| 30 |
NAO 30×45×13 |
73 |
30 |
45 |
13 |
35 |
40 |
11200 |
25000 |
11207 |
| NAO 30×45×17 |
100 |
30 |
45 |
17 |
35 |
40 |
12800 |
28500 |
11207 |
| *NAO 30×45×26 |
150 |
30 |
45 |
26 |
35 |
40 |
17500 |
32900 |
11207 |
| NAO 30×47×16 |
99.8 |
30 |
47 |
16 |
35 |
42 |
14400 |
17500 |
11207 |
| NAO 30×47×18 |
109 |
30 |
47 |
18 |
35 |
42 |
20000 |
33000 |
11207 |
| NAO 35×52×18 |
172 |
30 |
52 |
18 |
37 |
44 |
18000 |
25500 |
10900 |
| 35 |
NAO 35×50×17 |
103 |
35 |
50 |
17 |
40 |
45 |
20800 |
40506 |
10900 |
| NAO 35×55×20 |
175 |
35 |
55 |
20 |
40 |
47 |
28500 |
41000 |
10000 |
| NAO 35×57×20.5 |
206 |
35 |
57 |
20.5 |
42 |
50 |
26000 |
49000 |
10000 |
| 40 |
NAO 40×55×17 |
118 |
40 |
55 |
17 |
45 |
50 |
12500 |
36000 |
9000 |
| NAO 40×65×20 |
269 |
40 |
65 |
20 |
50 |
58 |
35000 |
61200 |
8000 |
| 50 |
NAO 50×68×20 |
219 |
50 |
68 |
20 |
55 |
60 |
24500 |
62000 |
7500 |
| NAO 50×78×20 |
400 |
50 |
78 |
20 |
60 |
68 |
33500 |
65000 |
6500 |
| 70 |
NAO 70×100×30 |
829 |
70 |
100 |
30 |
80 |
88 |
52600 |
129000 |
4000 |
| 75 |
NAO 75×105×25 |
676 |
75 |
105 |
25 |
85 |
93 |
42000 |
106000 |
3900 |
| 80 |
*NAO 80×110×30 |
892 |
80 |
110 |
30 |
90 |
98 |
49020 |
112000 |
4200 |
| 90 |
NAO 90×120×30 |
1004 |
90 |
120 |
30 |
100 |
108 |
51000 |
128000 |
3900 | |
|
|
|
|
|
|
|
