外球面轴承带座NAP305、NAP306、NAP307、NAP308、NAP309、NAP310、NAP311、NAP312、NAP313、NAP314、NAP315、NAP316、NAP317、NAP318、NAP319、NAP320 |
|
| 生产厂家: | 南京哈宁轴承制造有限公司 |
| | | 公司地址: | 江苏省南京市莫愁路195号 |
| | | 联系电话: | 025-86629730 |
| | | 公司传真: | 025-52300551 |
| | | 联 系 人: | 刘长岭 |
| | | 联系邮件: | lcl@8767.com |
| | | 产品价格: | ¥.00 |
| | | 网上报价: | ¥.00 |
| |
|
|
带座轴承代号 |
轴径 |

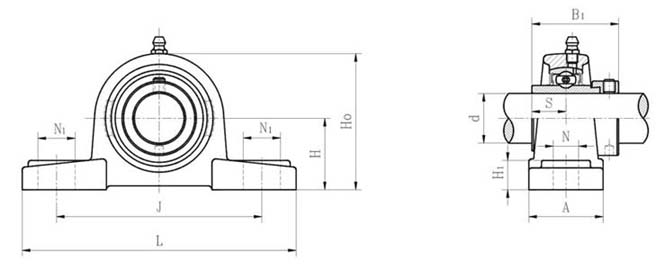

外形尺寸(mm) |
螺栓规格 |
轴承代码 |
座代号 |
重量(kg) |
d |
H |
L |
J |
A |
N |
N1 |
H1 |
H0 |
S |
B1 |
(in.) |
(mm) |
NAP314-44 |
2-3/4 |
|
95 |
335 |
260 |
90 |
25 |
38 |
33 |
176 |
32.5 |
85.7 |
M22 |
NA314-44 |
P314 |
12 |
NAP314 |
|
70 |
95 |
360 |
280 |
93 |
27 |
40 |
35 |
198 |
37.3 |
100 |
M22 |
NA314 |
P314 |
12 |
NAP315 |
|
75 |
100 |
380 |
290 |
100 |
27 |
40 |
35 |
198 |
37.3 |
100 |
M22 |
NA315 |
P315 |
15 |
NAP305-14 |
7/8 |
|
45 |
173 |
132 |
45 |
17 |
20 |
15 |
85 |
16.7 |
46.8 |
M14 |
NA305-14 |
P305 |
1.4 |
NAP305-15 |
15/16 |
|
45 |
173 |
132 |
45 |
17 |
20 |
15 |
85 |
16.7 |
46.8 |
M14 |
NA305-15 |
P305 |
1.4 |
NAP305 |
|
25 |
45 |
173 |
132 |
45 |
17 |
20 |
15 |
85 |
16.7 |
46.8 |
M14 |
NA305 |
P305 |
1.4 |
NAP305-16 |
1 |
|
45 |
173 |
132 |
45 |
17 |
20 |
15 |
85 |
16.7 |
46.8 |
M14 |
NA305-16 |
P305 |
1.4 |
NAP306-18 |
1-1/8 |
|
50 |
180 |
140 |
50 |
17 |
20 |
15 |
95 |
17.5 |
50 |
M14 |
NA306-18 |
P306 |
1.9 |
NAP306 |
|
30 |
50 |
180 |
140 |
50 |
17 |
20 |
15 |
95 |
17.5 |
50 |
M14 |
NA306 |
P306 |
1.9 |
NAP306-19 |
1-3/16 |
|
50 |
180 |
140 |
50 |
17 |
20 |
15 |
95 |
17.5 |
50 |
M14 |
NA306-19 |
P306 |
1.9 |
NAP307-20 |
1-1/4 |
|
56 |
210 |
160 |
56 |
17 |
25 |
19 |
106 |
18.3 |
51.6 |
M14 |
NA307-20 |
P307 |
2.9 |
NAP307-21 |
1-5/16 |
|
56 |
210 |
160 |
56 |
17 |
25 |
19 |
106 |
18.3 |
51.6 |
M14 |
NA307-21 |
P307 |
2.9 |
NAP307-22 |
1-3/8 |
|
56 |
210 |
160 |
56 |
17 |
25 |
19 |
106 |
18.3 |
51.6 |
M14 |
307-22 |
P307 |
2.9 |
NAP307 |
|
35 |
56 |
210 |
160 |
56 |
17 |
25 |
19 |
106 |
18.3 |
51.6 |
M14 |
NA307 |
P307 |
2.9 |
NAP308-24 |
1-1/2 |
|
60 |
218 |
170 |
62 |
18 |
25 |
19 |
116 |
19.8 |
57.1 |
M14 |
NA30824 |
P308 |
3.1 |
NAP308-25 |
1-9/16 |
|
60 |
18 |
170 |
62 |
18 |
25 |
19 |
116 |
19.8 |
57.1 |
M14 |
NA308-25 |
P308 |
3.1 |
NAP308 |
|
40 |
60 |
218 |
170 |
62 |
18 |
25 |
19 |
116 |
19.8 |
57.1 |
M14 |
NA308 |
P308 |
3.1 |
NAP309-26 |
1-5/8 |
|
67 |
244 |
190 |
66 |
20 |
26 |
23 |
129 |
19.8 |
58.7 |
M16 |
NA309-26 |
P309 |
4.3 |
NAP309-27 |
1-11/16 |
|
67 |
244 |
190 |
66 |
20 |
26 |
23 |
129 |
19.8 |
58.7 |
M16 |
NA309-27 |
P309 |
4.3 |
NAP309-28 |
1-3/4 |
|
67 |
244 |
190 |
66 |
20 |
26 |
23 |
129 |
19.8 |
58.7 |
M16 |
NA309-28 |
P309 |
4.3 |
NAP309 |
|
45 |
67 |
244 |
190 |
66 |
20 |
26 |
23 |
129 |
19.8 |
58.7 |
M16 |
NA309 |
P309 |
4.3 |
NAP310-30 |
1-7/8 |
|
75 |
271 |
212 |
74 |
20 |
30 |
26 |
143 |
24.6 |
66.6 |
M16 |
NA310-30 |
P310 |
6.0 |
NAP310-31 |
1-15/16 |
|
75 |
271 |
212 |
74 |
20 |
30 |
26 |
143 |
24.6 |
66.6 |
M16 |
NA310-31 |
P310 |
6.0 |
NAP310 |
|
50 |
75 |
271 |
212 |
74 |
20 |
30 |
26 |
143 |
24.6 |
66.6 |
M16 |
NA310 |
P310 |
4.3 |
NAP311-32 |
2 |
|
80 |
300 |
236 |
80 |
20 |
32 |
29 |
154 |
27.8 |
73 |
M16 |
NA311-32 |
P311 |
7.7 |
NAP311-34 |
2-1/8 |
|
80 |
300 |
236 |
80 |
20 |
32 |
29 |
154 |
27.8 |
73 |
M16 |
NA311-34 |
P311 |
7.7 |
NAP311 |
|
55 |
80 |
300 |
236 |
80 |
20 |
32 |
29 |
154 |
27.8 |
73 |
M16 |
NA311 |
P311 |
7.7 |
NAP311-35 |
2-3/16 |
|
80 |
300 |
236 |
80 |
20 |
32 |
29 |
154 |
27.8 |
73 |
M16 |
NA311-35 |
P311 |
7.7 |
NAP312-36 |
2-1/4 |
|
85 |
325 |
250 |
85 |
23 |
35 |
31 |
164 |
29.5 |
79.4 |
M20 |
NA312-36 |
P312 |
9.7 |
NAP312 |
|
60 |
85 |
325 |
250 |
85 |
23 |
35 |
31 |
164 |
29.5 |
79.4 |
M20 |
NA312 |
P312 |
9.7 |
NP312-38 |
2-3/8 |
|
85 |
325 |
250 |
85 |
23 |
35 |
31 |
164 |
29.5 |
79.4 |
M20 |
NAP312-38 |
P312 |
9.7 |
NAP312-39 |
2-7/16 |
|
85 |
325 |
250 |
85 |
23 |
35 |
31 |
164 |
29.5 |
79.4 |
M20 |
NA312-39 |
P312 |
9.7 |
NAP312-39 |
2-7/16 |
|
85 |
325 |
250 |
85 |
23 |
35 |
31 |
164 |
29.5 |
79.4 |
M20 |
NA312-39 |
P312 |
9.7 |
NAP313-40 |
2-1/2 |
|
90 |
335 |
260 |
90 |
25 |
38 |
33 |
176 |
32.5 |
85.7 |
M20 |
NA313-40 |
P313 |
11 |
NAP313 |
|
65 |
90 |
335 |
260 |
90 |
25 |
38 |
33 |
176 |
32.5 |
85.7 |
M20 |
NA313 |
P313 |
11 |
NAP315-48 |
3 |
|
100 |
380 |
290 |
100 |
27 |
40 |
35 |
198 |
37.3 |
100 |
M22 |
NA315-48 |
P315 |
15 |
NAP316 |
|
80 |
106 |
400 |
300 |
105 |
27 |
40 |
37 |
210 |
40.5 |
106.4 |
M22 |
NA316 |
P316 |
19 |
NAP317-52 |
3/1-4 |
|
112 |
420 |
320 |
110 |
33 |
45 |
40 |
220 |
42 |
109.5 |
M27 |
NA317-52 |
P317 |
21 |
NAP317 |
|
85 |
112 |
420 |
320 |
110 |
33 |
45 |
40 |
220 |
42 |
109.5 |
M27 |
NA317 |
P317 |
21 |
NAP318-56 |
3-1/2 |
|
118 |
430 |
330 |
110 |
33 |
45 |
40 |
234 |
43.6 |
115.9 |
M27 |
NA318-56 |
P318 |
25 |
NAP318 |
|
90 |
118 |
430 |
330 |
110 |
33 |
45 |
40 |
234 |
43.6 |
115.9 |
M27 |
NA318 |
P318 |
25 |
NAP319 |
|
95 |
125 |
470 |
360 |
120 |
36 |
50 |
45 |
248 |
46.8 |
122.3 |
M30 |
NA319 |
P319 |
30 |
NAP319-60 |
3-3/4 |
|
125 |
470 |
360 |
120 |
36 |
50 |
45 |
249 |
46.8 |
122.3 |
M30 |
NA319-60 |
P319 |
30 |
NAP319-60 |
3-3/4 |
|
125 |
470 |
360 |
120 |
36 |
50 |
45 |
248 |
46.8 |
122.3 |
M30 |
NA319-60 |
P319 |
30 |
NAP320 |
|
100 |
140 |
490 |
380 |
120 |
36 |
50 |
50 |
275 |
50 |
128.6 |
M30 |
NA320 |
P320 |
37 |
NAP320-64 |
4 |
|
140 |
490 |
380 |
120 |
36 |
50 |
50 |
275 |
50 |
128.6 |
M30 |
NA320-64 |
P320 |
37 | | |
|
|
|
|
|
|
|
