外球面轴承带座SBP201G、SBP202G、SBP203G、SBP204G、SBP205G、SBP206G、SBP207G、SBP208G、SBP209G、SBP210G、SBP2G、SBP211G、SBP212G |
|
| 生产厂家: | 南京哈宁轴承制造有限公司 |
| | | 公司地址: | 江苏省南京市莫愁路195号 |
| | | 联系电话: | 025-86629730 |
| | | 公司传真: | 025-52300551 |
| | | 联 系 人: | 刘长岭 |
| | | 联系邮件: | lcl@8767.com |
| | | 产品价格: | ¥.00 |
| | | 网上报价: | ¥.00 |
| |
|
|
带座轴承代号 |
轴径 |

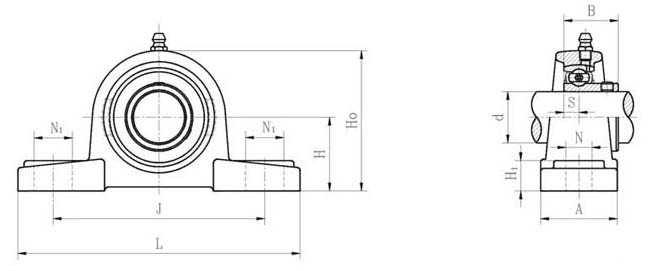

外形尺寸(mm) |
螺栓规格 |
轴承代码 |
座代号 |
重量(kg) |
可选用 |
d |
H |
L |
J |
A |
N |
N1 |
H1 |
H0 |
S |
B |
(in.) |
(mm) |
N |
N1 |
SBP201G |
|
12 |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6 |
22 |
M10 |
SB201G |
P203S |
0.63 |
-- |
-- |
SBP201-8G |
1/2 |
|
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6 |
22 |
M10 |
SB201-8G |
P203S |
0.63 |
|
|
SBP202G |
|
15 |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6 |
22 |
M10 |
SB202G |
P203S |
0.63 |
|
|
SBP202-10G |
5/8 |
|
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6 |
32 |
M10 |
SB202-10G |
P203S |
0.63 |
|
|
SBP203G |
|
17 |
30.2 |
125 |
96 |
32 |
12 |
16 |
13 |
57 |
6 |
22 |
M10 |
SB203G |
P203S |
0.63 |
|
|
SBP203-11G |
11/16 |
|
30.2 |
125 |
99 |
32 |
12 |
16 |
13 |
57 |
6 |
22 |
M10 |
SB203-11G |
P203S |
0.63 |
|
|
SBP204-12G |
3/4 |
|
33.3 |
127 |
96 |
37 |
13 |
16 |
14 |
638 |
7 |
25 |
M10 |
SB204-12G |
P204 |
0.63 |
13 |
19 |
SBP204G |
|
20 |
33.3 |
127 |
96 |
37 |
13 |
16 |
14 |
63.8 |
7 |
25 |
M10 |
SB204G |
P204 |
0.63 |
13 |
19 |
SBP205-14G |
7/8 |
|
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
69.5 |
7.5 |
27 |
M10 |
SB205-14G |
P205 |
0.83 |
|
|
SBP205-15G |
15/16 |
|
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
69.5 |
7.5 |
27 |
M10 |
SB205-15G |
P205 |
0.83 |
|
|
SBP205G |
|
25 |
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
69.5 |
7.5 |
27 |
M10 |
SB205G |
P205 |
0.83 |
|
|
SBP205-16G |
1 |
|
36.5 |
140 |
105 |
38 |
13 |
19 |
15 |
69.5 |
7.5 |
27 |
M10 |
SB205-16G |
P205 |
0.83 |
|
|
SB206-18G |
1-1/8 |
|
42.9 |
160 |
121 |
44 |
14 |
19 |
16 |
82 |
8 |
30 |
M12 |
SB206-18G |
P206 |
1.34 |
17 |
21 |
SBP206G |
|
30 |
42.9 |
160 |
121 |
44 |
14 |
19 |
16 |
82 |
8 |
30 |
M12 |
SB206G |
P206 |
1.34 |
17 |
21 |
SBP206-19G |
1-3/16 |
|
42.9 |
160 |
121 |
44 |
14 |
19 |
16 |
82 |
8 |
30 |
M12 |
SB206-19G |
P206 |
1.4 |
17 |
21 |
SBP206-20G |
1-1/4 |
|
42.9 |
10 |
121 |
44 |
14 |
19 |
16 |
82 |
8 |
30 |
M12 |
SB206-20G |
P206 |
1.34 |
17 |
21 |
SBP207-20G |
1-1/4 |
|
47.6 |
167 |
126 |
48 |
15 |
19 |
17 |
92 |
8.5 |
32 |
M12 |
SB207-20G |
P207 |
1.57 |
17 |
21 |
SBP207-21G |
1-5/16 |
|
47.6 |
167 |
126 |
48 |
15 |
19 |
17 |
92 |
8.5 |
32 |
M12 |
SB207-21G |
P207 |
1.57 |
17 |
21 |
SBP207-22G |
1-3/8 |
|
47.6 |
167 |
126 |
48 |
15 |
19 |
17 |
92 |
8.5 |
32 |
M12 |
SB207-22G |
P207 |
1.57 |
17 |
21 |
SBP207G |
|
35 |
47.6 |
167 |
126 |
48 |
15 |
19 |
17 |
92 |
8.5 |
32 |
M12 |
SB207G |
P207 |
1.57 |
17 |
21 |
SBP207-23G |
1-7/16 |
|
47.6 |
167 |
126 |
48 |
15 |
19 |
17 |
92 |
8.5 |
32 |
M12 |
SB207-23G |
P207 |
1.57 |
17 |
21 |
SBP208-24G |
1-1/2 |
|
49.2 |
180 |
136 |
52 |
15 |
21 |
18 |
98 |
9 |
34 |
M12 |
SB208-24G |
P208 |
2.04 |
17 |
23 |
SBP208-25G |
1-9/16 |
|
49.2 |
180 |
136 |
52 |
15 |
21 |
18 |
98 |
9 |
34 |
M12 |
SB208-25G |
P208 |
2.04 |
17 |
23 |
SBP208G |
|
40 |
49.2 |
180 |
136 |
52 |
15 |
21 |
18 |
98 |
9 |
34 |
M12 |
SB208G |
P208 |
2.04 |
17 |
23 |
SBP209-26G |
1-5/8 |
|
54 |
189 |
146 |
54 |
15 |
21 |
20 |
105.5 |
10.2 |
41.2 |
M12 |
SB209-26G |
P209 |
2.17 |
17 |
23 |
SBP209-27G |
1-11/16 |
|
54 |
189 |
146 |
54 |
15 |
21 |
20 |
105.5 |
10.2 |
41.2 |
M12 |
SB209-27G |
P209 |
2.17 |
17 |
23 |
SBP209-28G |
1-3/4 |
|
54 |
189 |
146 |
54 |
15 |
21 |
20 |
105.5 |
10.2 |
41.2 |
M12 |
SB209-28G |
P209 |
2.17 |
17 |
23 |
SBP209G |
|
45 |
54 |
189 |
146 |
54 |
15 |
21 |
20 |
105.5 |
10.2 |
41.2 |
M12 |
SB209G |
P209 |
2.17 |
17 |
23 |
SBP210-30G |
1-7/8 |
|
57.2 |
204 |
159 |
57 |
19 |
22 |
21 |
112.2 |
10.9 |
43.5 |
M16 |
SB210-30G |
P210 |
2.48 |
|
|
SBP210-31G |
1-15/16 |
|
57.2 |
204 |
159 |
57 |
19 |
22 |
21 |
112.2 |
10.9 |
43.5 |
M16 |
SB210-31G |
P210 |
2.48 |
|
|
SBP210G |
|
50 |
57.2 |
204 |
159 |
57 |
19 |
22 |
21 |
112.2 |
10.9 |
43.5 |
M16 |
SB210G |
P210 |
2.48 |
|
|
SBP211-32G |
2 |
|
63.5 |
217 |
172 |
60 |
19 |
22 |
22 |
124.5 |
11.8 |
45.3 |
M16 |
SB211-32G |
P211 |
3.24 |
|
|
SBP211-34G |
2-1/8 |
|
63.5 |
217 |
172 |
60 |
19 |
22 |
22 |
124.5 |
11.8 |
45.3 |
M16 |
SB211-34G |
P211 |
3.24 |
|
|
SBP211G |
|
55 |
63.5 |
217 |
172 |
80 |
19 |
22 |
22 |
124.5 |
11.8 |
45.3 |
M16 |
SB211G |
P211 |
3.24 |
|
|
SBP211-35G |
2-3/16 |
|
63.5 |
217 |
172 |
60 |
19 |
22 |
22 |
124.5 |
11.8 |
45.3 |
M16 |
SB211-35G |
P211 |
3.24 |
|
|
SBP212-36G |
2-1/4 |
|
69.9 |
238 |
186 |
66 |
19 |
25 |
24 |
137 |
14.9 |
53.7 |
M16 |
SB212-36G |
P212 |
5.26 |
|
|
SBP212G |
|
60 |
69.9 |
238 |
186 |
66 |
19 |
25 |
24 |
137 |
14.9 |
53.7 |
M16 |
SB212G |
P212 |
5.26 |
|
|
SBP212-38G |
2-3/8 |
|
69.9 |
238 |
186 |
66 |
19 |
25 |
24 |
137 |
14.9 |
53.7 |
M16 |
SB212-38G |
P212 |
5.26 |
|
|
SBP212-39G |
2-7/16 |
|
69.9 |
238 |
186 |
66 |
19 |
25 |
24 |
137 |
14.9 |
53.7 |
M16 |
SB212-39G |
P212 |
5.26 |
|
| | |
|
|
|
|
|
|
|
