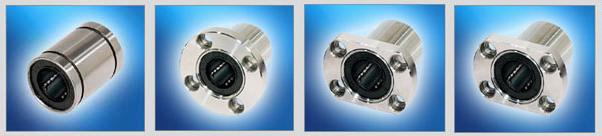

| 加长型法兰轴承SWK4L、SWK6L、SWK8L、SWK10L、SWK12L、SWK16L、SWK20L、SWK24L、SWK25L、SWK32L |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
|
| 型号 |
球列数 |
主要尺寸 |
法兰垂直度 |
径向跳动 |
基本额定负载 |
| 内径 |
外径 |
长度 |
l |
法兰 |
联接孔 |
动 c
(kgf) |
静 Co
(kgf) |
| dr |
公差 |
D |
公差 |
L |
公差 |
D1 |
K |
H |
ф |
d1 |
d2 |
h |
| SWK04L |
3 |
1/4˝
6.35 |
0
-0.010 |
0.5˝
12.7 |
0
-0.013 |
1.375˝
34.925 |
0
± 0.30 |
0.5781˝
14.684 |
1.25˝
31.75 |
1˝
25.4 |
0.2189˝
5.556 |
0.875˝
22.225 |
0.156˝
3.969 |
0.25˝
6.35 |
0.141˝
3.572 |
0.015 |
0.015 |
33 |
54 |
|
0
-0.016 |
| SWK06L |
4 |
3/8˝
9.525 |
0.625˝
15.875 |
1.5938˝
40.481 |
0.6719˝
17.066 |
1.5˝
38.1 |
1.25˝
31.75 |
0.25˝
6.35 |
1.062˝
26.988 |
0.1875˝
4.763 |
0.297˝
7.541 |
0.172˝
4.366 |
36 |
64 |
| SWK08L |
4 |
1/2˝
12.7 |
0.875˝
22.225 |
2.375˝
60.325 |
1.0625˝
26.988 |
1.75˝
44.45 |
1.375˝
34.925 |
0.25˝
6.35 |
1.312˝
33.338 |
0.1875˝
4.763 |
0.297˝
7.541 |
0.172˝
4.366 |
83 |
160 |
| SWK10L |
4 |
5/8˝
15.875 |
1.125˝
28.575 |
2.8125˝
71.438 |
1.2813˝
32.544 |
2˝
50.8 |
1.5˝
38.1 |
0.25˝
6.35 |
1.562˝
39.688 |
0.1875˝
4.763 |
0.297˝
7.541 |
0.172˝
4.366 |
125 |
240 |
| SWK12L |
4 |
3/4˝
19.05 |
0
-0.012 |
1.25˝
31.75 |
0
-0.019 |
3.0937˝
78.581 |
1.3906˝
35.322 |
2.1875˝
55.563 |
1.6875˝
42.863 |
0.3125˝
7.938 |
1.718˝
43.66 |
0.2178˝
5.556 |
0.344˝
8.731 |
0.203˝
5.159 |
0.020 |
0.020 |
140 |
280 |
| SWK16L |
5 |
1˝
25.4 |
1.5625˝
39.688 |
4.283˝
108.744 |
0
-0.40 |
1.9844˝
50.403 |
2.5˝
63.5 |
2˝
50.8 |
0.3125˝
7.938 |
2.031˝
51.594 |
0.2187˝
5.556 |
0.344˝
8.731 |
0.203˝
5.159 |
160 |
320 |
| SWK20L |
5 |
1-1/4˝
31.75 |
0
-0.015 |
2˝
50.8 |
0
-0.022 |
5˝
127 |
2.3125˝
58.738 |
3.125˝
79.375 |
2.5˝
63.5 |
0.375˝
9.525 |
2.5625˝
65.088 |
0.2812˝
7.144 |
0.406˝
0.319 |
0.2656˝
6.747 |
0.025 |
0.025 |
255 |
560 |
| SWK24L |
6 |
1-1/2˝
38.1 |
2.375˝
60.325 |
5.6875˝
144.463 |
2.5938˝
65.882 |
3.75˝
95.25 |
3˝
76.2 |
0.5˝
12.7 |
3.0625˝
77.788 |
0.344˝
8.731 |
0.5˝
12.7 |
0.328˝
8.334 |
350 |
820 |
| SWK32L |
6 |
2˝
50.8 |
3˝
76.2 |
0
-0.025 |
7.75˝
196.85 |
3.625˝
92.075 |
4.375˝
111.125 |
3.5˝
88.9 |
0.5˝
12.7 |
3.6875˝
93.662 |
0.344˝
8.731 |
0.5˝
12.7 |
0.328˝
8.334 |
0.030 |
0.030 |
620 |
1622 | | |
|
|
|
|
|
|
|
