UCTH206-20-150轴承座、UCTH207-20-230轴承座、UCTH207-21-230轴承座、UCTH207-230轴承座、UCTH207-23-230轴承座、UCTH208-24-300轴承座、UCTH208-25-300轴承座、UCTH208-300轴承座、UCTH209-26-300轴承座、UCTH209-27-300轴承座、UCTH209-28-300轴承座、UCTH209-300轴承座、UCTH210-30-300轴承座、UCTH210-31-300轴承座-南京轴承厂

UCTH206-20-150轴承座、UCTH207-20-230轴承座、UCTH207-21-230轴承座、UCTH207-230轴承座、UCTH207-23-230轴承座、UCTH208-24-300轴承座、UCTH208-25-300轴承座、UCTH208-300轴承座、UCTH209-26-300轴承座、UCTH209-27-300轴承座、UCTH209-28-300轴承座、UCTH209-300轴承座、UCTH210-30-300轴承座、UCTH210-31-300轴承座

生产厂家：

南京哈宁轴承制造有限公司

公司地址：

江苏省南京市莫愁路99号

联系电话：

025-86629730、52217447、86622491

公司传真：

025-52300551（电话：86622492、86622493）

联系人：

刘长岭 13801591302

联系邮件：

hrbn@vip.qq.com

产品价格：

~~￥.00~~

网上报价：

￥.00

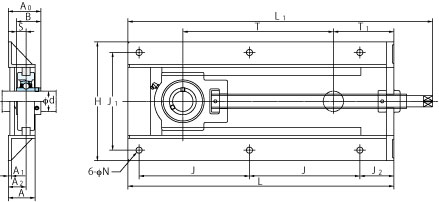

组件型号轴承座型号轴承型号轴径 H 尺寸 L 尺寸 J 尺寸基本额定负荷

Cr Cor

UCTH201-150 H204.5-150 UC201 12 mm 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 12.8 kN 6.65 kN

2877 lbf 1494 lbf

UCTH201-8-150 H204.5-150 UC201-8 1/2 in 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 12.8 kN 6.65 kN

2877 lbf 1494 lbf

UCTH202-150 H204.5-150 UC202 15 mm 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 12.8 kN 6.65 kN

2877 lbf 1494 lbf

UCTH202-10-150 H204.5-150 UC202-10 5/8 in 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 12.8 kN 6.65 kN

2877 lbf 1494 lbf

UCTH203-150 H204.5-150 UC203 17 mm 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 12.8 kN 6.65 kN

2877 lbf 1494 lbf

UCTH204-12-150 H204.5-150 UC204-12 3/4 in 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 12.8 kN 6.65 kN

2877 lbf 1494 lbf

UCTH204-150 H204.5-150 UC204 20 mm 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 12.8 kN 6.65 kN

2877 lbf 1494 lbf

UCTH205-14-150 H204.5-150 UC205-14 7/8 in 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 14 kN 7.85 kN

3147 lbf 1764 lbf

UCTH205-15-150 H204.5-150 UC205-15 15/16 in 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 14 kN 7.85 kN

3147 lbf 1764 lbf

UCTH205-150 H204.5-150 UC205 25 mm 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 14 kN 7.85 kN

3147 lbf 1764 lbf

UCTH205-16-150 H204.5-150 UC205-16 1 in 200 mm    7-7/8 in 318 mm    12-17/32 in 117 mm    4-39/64 in 14 kN 7.85 kN

3147 lbf 1764 lbf

UCTH206-18-150 H206-150 UC206-18 1-1/8 in 213 mm    8-3/8 in 336 mm    13-7/32 in 126 mm    4-31/32 in 19.5 kN 11.3 kN

4383 lbf 2540 lbf

UCTH206-150 H206-150 UC206 30 mm 213 mm    8-3/8 in 336 mm    13-7/32 in 126 mm    4-31/32 in 19.5 kN 11.3 kN

4383 lbf 2540 lbf

UCTH206-19-150 H206-150 UC206-19 1-3/16 in 213 mm    8-3/8 in 336 mm    13-7/32 in 126 mm    4-31/32 in 19.5 kN 11.3 kN

4383 lbf 2540 lbf

UCTH206-20-150 H206-150 UC206-20 1-1/4 in 213 mm    8-3/8 in 336 mm    13-7/32 in 126 mm    4-31/32 in 19.5 kN 11.3 kN

4383 lbf 2540 lbf

UCTH207-20-230 H207-230 UC207-20 1-1/4 in 213 mm    8-3/8 in 430 mm    16-15/16 in 173 mm    6-13/16 in 25.7 kN 15.4 kN

5777 lbf 3462 lbf

UCTH207-21-230 H207-230 UC207-21 1-5/16 in 213 mm    8-3/8 in 430 mm    16-15/16 in 173 mm    6-13/16 in 25.7 kN 15.4 kN

5777 lbf 3462 lbf

UCTH207-230 H207-230 UC207 35 mm 213 mm    8-3/8 in 430 mm    16-15/16 in 173 mm    6-13/16 in 25.7 kN 15.4 kN

5777 lbf 3462 lbf

UCTH207-23-230 H207-230 UC207-23 1-7/16 in 213 mm    8-3/8 in 430 mm    16-15/16 in 173 mm    6-13/16 in 25.7 kN 15.4 kN

5777 lbf 3462 lbf

UCTH208-24-300 H208.9-300 UC208-24 1-1/2 in 234 mm    9-7/32 in 523 mm    20-19/32 in 217 mm    8-35/64 in 29.1 kN 17.8 kN

6541 lbf 4001 lbf

UCTH208-25-300 H208.9-300 UC208-25 1-9/16 in 234 mm    9-7/32 in 523 mm    20-19/32 in 217 mm    8-35/64 in 29.1 kN 17.8 kN

6541 lbf 4001 lbf

UCTH208-300 H208.9-300 UC208 40 mm 234 mm    9-7/32 in 523 mm    20-19/32 in 217 mm    8-35/64 in 29.1 kN 17.8 kN

6541 lbf 4001 lbf

UCTH209-26-300 H208.9-300 UC209-26 1-5/8 in 234 mm    9-7/32 in 523 mm    20-19/32 in 217 mm    8-35/64 in 34.1 kN 21.3 kN

7666 lbf 4788 lbf

UCTH209-27-300 H208.9-300 UC209-27 1-11/16 in 234 mm    9-7/32 in 523 mm    20-19/32 in 217 mm    8-35/64 in 34.1 kN 21.3 kN

7666 lbf 4788 lbf

UCTH209-28-300 H208.9-300 UC209-28 1-3/4 in 234 mm    9-7/32 in 523 mm    20-19/32 in 217 mm    8-35/64 in 34.1 kN 21.3 kN

7666 lbf 4788 lbf

UCTH209-300 H208.9-300 UC209 45 mm 234 mm    9-7/32 in 523 mm    20-19/32 in 217 mm    8-35/64 in 34.1 kN 21.3 kN

7666 lbf 4788 lbf

UCTH210-30-300 H210-300 UC210-30 1-7/8 in 234 mm    9-7/32 in 527 mm    20-3/4 in 219 mm    8-5/8 in 35.1 kN 23.3 kN

7890 lbf 5238 lbf

UCTH210-31-300 H210-300 UC210-31 1-15/16 in 234 mm    9-7/32 in 527 mm    20-3/4 in 219 mm    8-5/8 in 35.1 kN 23.3 kN

7890 lbf 5238 lbf

UCTH210-300 H210-300 UC210 50 mm 234 mm    9-7/32 in 527 mm    20-3/4 in 219 mm    8-5/8 in 35.1 kN 23.3 kN

7890 lbf 5238 lbf

UCTH210-32-300 H210-300 UC210-32 2 in 234 mm    9-7/32 in 527 mm    20-3/4 in 219 mm    8-5/8 in 35.1 kN 23.3 kN

7890 lbf 5238 lbf

UCTH211-32-300 H211-300 UC211-32 2 in 304 mm    11-31/32 in 545 mm    21-15/32 in 230 mm    9-1/16 in 43.4 kN 29.4 kN

9756 lbf 6609 lbf

UCTH211-34-300 H211-300 UC211-34 2-1/8 in 304 mm    11-31/32 in 545 mm    21-15/32 in 230 mm    9-1/16 in 43.4 kN 29.4 kN

9756 lbf 6609 lbf

UCTH211-300 H211-300 UC211 55 mm 304 mm    11-31/32 in 545 mm    21-15/32 in 230 mm    9-1/16 in 43.4 kN 29.4 kN

9756 lbf 6609 lbf

UCTH211-35-300 H211-300 UC211-35 2-3/16 in 304 mm    11-31/32 in 545 mm    21-15/32 in 230 mm    9-1/16 in 43.4 kN 29.4 kN

9756 lbf 6609 lbf

UCTH212-36-300 H212-300 UC212-36 2-1/4 in 304 mm    11-31/32 in 571 mm    22-15/32 in 243 mm    9-9/16 in 52.4 kN 36.2 kN

11780 lbf 8138 lbf

UCTH212-300 H212-300 UC212 60 mm 304 mm    11-31/32 in 571 mm    22-15/32 in 243 mm    9-9/16 in 52.4 kN 36.2 kN

11780 lbf 8138 lbf

UCTH212-38-300 H212-300 UC212-38 2-3/8 in 304 mm    11-31/32 in 571 mm    22-15/32 in 243 mm    9-9/16 in 52.4 kN 36.2 kN

11780 lbf 8138 lbf

UCTH212-39-300 H212-300 UC212-39 2-7/16 in 304 mm    11-31/32 in 571 mm    22-15/32 in 243 mm    9-9/16 in 52.4 kN 36.2 kN

11780 lbf 8138 lbf

UCTH213-40-300 H213-300 UC213-40 2-1/2 in 332 mm    13-1/16 in 609 mm    23-31/32 in 260 mm    10-64/15 in 57.2 kN 40.1 kN

12859 lbf 9014 lbf

UCTH213-300 H213-300 UC213 65 mm 332 mm    13-1/16 in 609 mm    23-31/32 in 260 mm    10-64/15 in 57.2 kN 40.1 kN

12859 lbf 9014 lbf
