| W1、W1X、W2、W2X、W3、W3X、W4、W4X、RM1ZZ、RM1-2RS、RM2ZZ、RM2-2RS、RM3ZZ、RM3-2RS、RM4ZZ、RM4-2RS、SG10、SG15、SG15-10、SG15-1、SG20、SG20-1、SG25、SG25-1、SG35、LV20/7、LV20/8、LV202-38、LV202-40、LV201、LV202-41、LV203、LV204-57、LV204-58、RV20/7-10、RV20/8-10 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路99号 |
| | | 联系电话： | 025-86629730、52217447、86622491 |
| | | 公司传真： | 025-52300551（电话：86622492、86622493） |
| | | 联 系 人： | 刘长岭 13801591302 |
| | | 联系邮件： | hrbn@vip.qq.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|

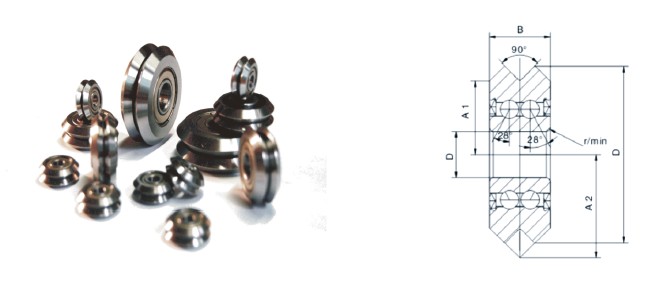

型号
Designation |
尺寸
Dimensions |
基本额定载荷
Basic Load Ratings |
重量
Mass |
| d |
D |
B |
A1 |
A2 |
r
min. |
动 Cr
Dynamic |
静 Cor
Static |
| HRBN |
EURO |
mm |
kN |
g |
| W1 |
RM1 ZZ |
4.763 |
19.56 |
7.87 |
7.93 |
11.86 |
0.3 |
2.2 |
1 |
12 |
| W1X |
RM1 2RS |
4.763 |
19.56 |
7.87 |
7.93 |
11.86 |
0.3 |
2.2 |
1 |
12 |
| W2 |
RM2 ZZ |
9.525 |
30.73 |
11.1 |
12.7 |
18.24 |
0.3 |
4.9 |
2.5 |
40 |
| W2X |
RM2 2RS |
9.525 |
30.73 |
11.1 |
12.7 |
18.24 |
0.3 |
4.9 |
2.5 |
40 |
| W3 |
RM3 ZZ |
12 |
45.72 |
15.88 |
19.05 |
26.98 |
0.6 |
9.4 |
4.9 |
136 |
| W3X |
RM3 2RS |
12 |
45.72 |
15.88 |
19.05 |
26.98 |
0.6 |
9.4 |
4.9 |
136 |
| W4 |
RM4 ZZ |
15 |
59.94 |
19.05 |
25.4 |
34.93 |
1 |
14.8 |
8.2 |
285 |
| W4X |
RM4 2RS |
15 |
59.94 |
19.05 |
25.4 |
34.93 |
1 |
14.8 |
8.2 |
285 |
|

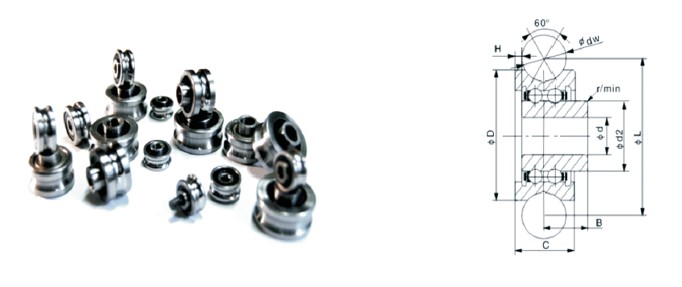

型号
Designation |
尺寸
Dimensions |
基本额定载荷
Basic Load Ratings |
钢球颗数
Ball numbers |
重量
Mass |
| Φdw |
Bore |
O.D. |
Width |
Width |
L |
D2 |
H |
r
min. |
动 Cr
Dynamic |
静 Cor
Static |
| HRBN |
mm |
kN |
g |
| SG10 |
5 |
4 |
13 |
6 |
3.5*2 |
16.08 |
5.9 |
|
0.3 |
0.85 |
1.05 |
14 |
7 |
| SG15 |
6 |
5 |
17 |
8 |
5.75 |
20.46 |
8.6 |
0.5 |
0.3 |
0.95 |
1.8 |
18 |
8 |
| SG15-10 |
10 |
5 |
17 |
8 |
5.75 |
25.5 |
8.6 |
1.2 |
0.3 |
0.95 |
1.8 |
18 |
9 |
| SG15-1 |
7 |
5 |
17 |
8 |
5.75 |
20.46 |
8.6 |
1.5 |
0.3 |
0.95 |
1.8 |
18 |
10 |
| SG20 |
8 |
6 |
24 |
11 |
7.25 |
28.62 |
11.1 |
0.7 |
0.3 |
1.75 |
3.48 |
14 |
25 |
| SG20-1 |
9 |
6 |
24 |
11 |
7.25 |
28.62 |
11.1 |
0.5 |
0.3 |
1.75 |
3.48 |
14 |
25 |
| SG25 |
10 |
8 |
30 |
14 |
8.5 |
35.77 |
13 |
0.7 |
0.3 |
2.7 |
5.18 |
14 |
49 |
| SG25-1 |
5 |
8 |
27.6 |
14 |
10 |
30.77 |
13 |
1 |
0.3 |
2.7 |
5.18 |
14 |
50 |
| SG35 |
12 |
12 |
42 |
19 |
12.5 |
48.93 |
18 |
1 |
0.5 |
5.9 |
10.6 |
14 |
136 |
|

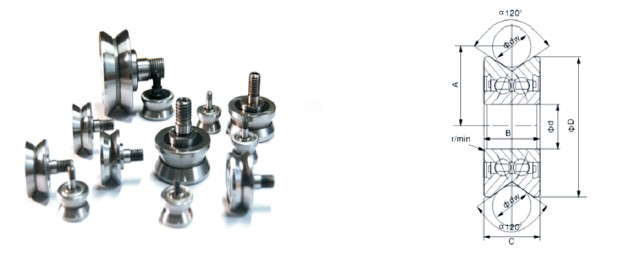

型号
Designation |
尺寸
Dimensions |
基本额定载荷
Basic Load Ratings |
重量
Mass |
| dw |
d |
D |
C |
A |
r
min. |
动 Cr
Dynamic |
静 Cor
Static |
| HRBN |
EURO |
mm |
kN |
g |
| LV 20/7 |
RV 20/7-10 |
10 |
7 |
22 |
11 |
14.5 |
0.3 |
2.45 |
1.62 |
17 |
| LV 20/8 |
RV 20/8-10 |
10 |
8 |
30 |
14 |
18.1 |
0.3 |
4.49 |
2.7 |
62 |
| LV 202-38 |
RV 202/15.38-10 |
10 |
15 |
38 |
17 |
22.25 |
0.5 |
7.29 |
4.55 |
86 |
| LV 202-40 |
RV 202/15.40-10 |
10 |
15 |
40 |
18 |
22 |
0.5 |
7.95 |
4.95 |
110 |
| LV 201 |
RV 201/12-20 |
20 |
12 |
41 |
20 |
28 |
0.3 |
8.18 |
5.1 |
130 |
| LV 202-41 |
RV 202/15.41-20 |
20 |
15 |
41 |
20 |
28 |
0.5 |
8.18 |
5.1 |
120 |
| LV 203 |
RV 203/17 |
20 |
17 |
58 |
25 |
35 |
0.5 |
16.58 |
9.2 |
325 |
| LV 204-57 |
RV 204/20.57-30 |
30 |
20 |
57 |
22 |
41 |
0.6 |
16.91 |
9.2 |
290 |
| LV 204-58 |
RV 204/20.58-30 |
30 |
20 |
58 |
25 |
41 |
0.6 |
16.79 |
9.2 |
310 | |
|
|
|
|
|
|
|
