| LR201-15-2RS导轨轴承、LR202-X-2RS导轨轴承、LR202-2RS导轨轴承、LR202-14-X-2RS导轨轴承、LR202-14-2RS导轨轴承、LR203-X-2RS导轨轴承、LR203-2RS导轨轴承、LR204-X-2RS导轨轴承、LR204-2RS导轨轴承、LR205-X-2RS导轨轴承、LR205-2RS导轨轴承、LR206-X-2RS导轨轴承、LR206-2RS导轨轴承、LR207-X-2RS导轨轴承、LR207-2RS导轨轴承 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路99号 |
| | | 联系电话： | 025-86629730、52217447、86622491 |
| | | 公司传真： | 025-52300551（电话：86622492、86622493） |
| | | 联 系 人： | 刘长岭 13801591302 |
| | | 联系邮件： | hrbn@vip.qq.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|

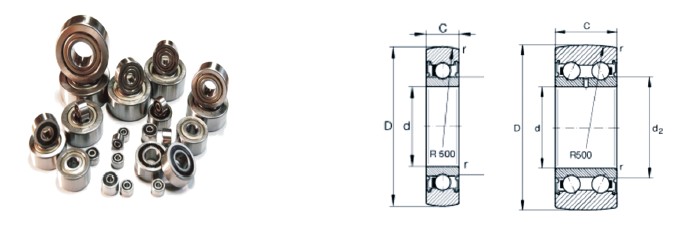

型号
Designation |
尺寸
Dimensions |
基本额定载荷
Basic Load Ratings |
极限转速
Limiting Speed |
重量
Mass |
| d |
D |
B |
C |
r
min. |
动 Cr
Dynamic |
静 Cor
Static |
| seals |
shields |
| HRBN |
mm |
kN |
*1000Rpm |
g |
| LR200-X-2RS |
10 |
32 |
9 |
9 |
0.6 |
4.35 |
2.13 |
13 |
17 |
50 |
| LR200-2RS |
10 |
32 |
9 |
9 |
0.6 |
4.35 |
2.13 |
13 |
17 |
50 |
| LR201-X-2RS |
12 |
35 |
10 |
10 |
0.6 |
5.6 |
2.7 |
12 |
15 |
50 |
| LR201-2RS |
12 |
35 |
10 |
10 |
0.6 |
5.6 |
2.7 |
12 |
15 |
50 |
| LR201-15-X-2RS |
12 |
35 |
15 |
10 |
0.6 |
5.6 |
2.7 |
12 |
15 |
70 |
| LR201-15-2RS |
12 |
35 |
15 |
10 |
0.6 |
5.6 |
2.7 |
12 |
15 |
70 |
| LR202-X-2RS |
15 |
40 |
11 |
11 |
0.6 |
6.5 |
3.3 |
11 |
13 |
70 |
| LR202-2RS |
15 |
40 |
11 |
11 |
0.6 |
6.5 |
3.3 |
11 |
13 |
70 |
| LR202-14-X-2RS |
15 |
40 |
14.4 |
11 |
0.6 |
6.5 |
3.3 |
11 |
13 |
80 |
| LR202-14-2RS |
15 |
40 |
14.4 |
11 |
0.6 |
6.5 |
3.3 |
11 |
13 |
80 |
| LR203-X-2RS |
17 |
47 |
12 |
12 |
0.6 |
8.4 |
4.4 |
9 |
12 |
110 |
| LR203-2RS |
17 |
47 |
12 |
12 |
0.6 |
8.4 |
4.4 |
9 |
12 |
110 |
| LR204-X-2RS |
20 |
52 |
14 |
14 |
1 |
10.5 |
5.6 |
8 |
10 |
150 |
| LR204-2RS |
20 |
52 |
14 |
14 |
1 |
10.5 |
5.6 |
8 |
10 |
150 |
| LR205-X-2RS |
25 |
62 |
15 |
15 |
1 |
12.5 |
7.1 |
7 |
8.5 |
230 |
| LR205-2RS |
25 |
62 |
15 |
15 |
1 |
12.5 |
7.1 |
7 |
8.5 |
230 |
| LR206-X-2RS |
30 |
72 |
16 |
16 |
1 |
16.6 |
9.6 |
5.5 |
7.5 |
330 |
| LR206-2RS |
30 |
72 |
16 |
16 |
1 |
16.6 |
9.6 |
5.5 |
7.5 |
330 |
| LR207-X-2RS |
35 |
80 |
17 |
17 |
1.1 |
20.2 |
11.9 |
4.5 |
6.3 |
400 |
| LR207-2RS |
35 |
80 |
17 |
17 |
1.1 |
20.2 |
11.9 |
4.5 |
6.3 |
400 |
| LR208-X-2RS |
40 |
85 |
18 |
18 |
1.1 |
22.8 |
13.6 |
4 |
5 |
450 |
| LR208-2RS |
40 |
85 |
18 |
18 |
1.1 |
22.8 |
13.6 |
4 |
5 |
450 |
| LR209-X-2RS |
45 |
90 |
19 |
19 |
1.1 |
22.5 |
13.7 |
3.6 |
4.5 |
500 |
| LR209-2RS |
45 |
90 |
19 |
19 |
1.1 |
22.5 |
13.7 |
3.6 |
4.5 |
500 |
| LR50/5-2RSR |
5 |
17 |
7 |
7 |
0.2 |
1.65 |
0.95 |
12 |
16 |
10 |
| LR50/6-2RSR |
6 |
19 |
9 |
9 |
0.3 |
2.65 |
1.31 |
11 |
15 |
20 |
| LR50/7-2RSR |
7 |
22 |
10 |
10 |
0.3 |
3.3 |
1.69 |
10 |
14 |
20 |
| LR50/8-2RSR |
8 |
24 |
11 |
11 |
0.3 |
4.2 |
2.36 |
10 |
14 |
30 |
| LR5000-2RS |
10 |
28 |
12 |
12 |
0.3 |
4.75 |
2.85 |
9 |
13 |
30 |
| LR5001-2RS |
12 |
30 |
12 |
12 |
0.3 |
4.95 |
3.1 |
8.5 |
11 |
30 |
| LR5002-2RS |
15 |
35 |
13 |
13 |
0.3 |
6.5 |
4.1 |
7 |
10 |
50 |
| LR5003-2RS |
17 |
40 |
14 |
14 |
0.3 |
7.7 |
5.2 |
6 |
9 |
70 |
| LR5004-2RS |
20 |
47 |
16 |
16 |
0.6 |
11.5 |
7.7 |
5.5 |
8 |
120 |
| LR5005-2RS |
25 |
52 |
16 |
16 |
0.6 |
11.6 |
8.1 |
4.7 |
7 |
150 |
| LR5006-2RS |
30 |
62 |
19 |
19 |
1 |
17.2 |
11.1 |
4 |
6 |
250 |
| LR5007-2RS |
35 |
68 |
20 |
20 |
1 |
17.6 |
13.1 |
4 |
5.3 |
300 |
| LR5200-2RS |
10 |
32 |
14 |
14 |
0.6 |
6.8 |
4.05 |
8 |
11 |
70 |
| LR5200-X-2Z |
10 |
32 |
14 |
14 |
0.6 |
6.8 |
4.05 |
8 |
11 |
70 |
| LR5200-2Z |
10 |
32 |
14 |
14 |
0.6 |
6.8 |
4.05 |
8 |
11 |
70 |
| LR5201-2RS |
12 |
35 |
15.9 |
15.9 |
0.6 |
8.6 |
5.1 |
7.5 |
10 |
80 |
| LR5201-X-2Z |
12 |
35 |
15.9 |
15.9 |
0.6 |
8.6 |
5.1 |
7.5 |
10 |
80 |
| LR5201-2Z |
12 |
35 |
15.9 |
15.9 |
0.6 |
8.6 |
5.1 |
7.5 |
10 |
80 |
| LR5202-2RS |
15 |
40 |
15.9 |
15.9 |
0.6 |
9.8 |
6.2 |
7 |
10 |
110 |
| LR5202-X-2Z |
15 |
40 |
15.9 |
15.9 |
0.6 |
9.8 |
6.2 |
7 |
10 |
110 |
| LR5202-2Z |
15 |
40 |
15.9 |
15.9 |
0.6 |
9.8 |
6.2 |
7 |
10 |
110 |
| LR5203-2RS |
17 |
47 |
17.5 |
17.5 |
0.6 |
12.6 |
8.2 |
5.5 |
7.5 |
170 |
| LR5203-X-2Z |
17 |
47 |
17.5 |
17.5 |
0.6 |
12.6 |
8.2 |
5.5 |
7.5 |
170 |
| LR5203-2Z |
17 |
47 |
17.5 |
17.5 |
0.6 |
12.6 |
8.2 |
5.5 |
7.5 |
170 |
| LR5204-2RS |
20 |
52 |
20.6 |
20.6 |
1 |
15.8 |
10.5 |
5 |
7 |
230 |
| LR5204-X-2Z |
20 |
52 |
20.6 |
20.6 |
1 |
15.8 |
10.5 |
5 |
7 |
230 |
| LR5204-2Z |
20 |
52 |
20.6 |
20.6 |
1 |
15.8 |
10.5 |
5 |
7 |
230 |
| LR5205-2RS |
25 |
62 |
20.6 |
20.6 |
1 |
18.5 |
13 |
4.5 |
6.5 |
340 |
| LR5205-X-2Z |
25 |
62 |
20.6 |
20.6 |
1 |
18.5 |
13 |
4.5 |
6.5 |
340 |
| LR5205-2Z |
25 |
62 |
20.6 |
20.6 |
1 |
18.5 |
13 |
4.5 |
6.5 |
340 |
| LR5206-2RS |
30 |
72 |
23.8 |
23.8 |
1 |
24.6 |
21.4 |
3.5 |
5 |
510 |
| LR5206-X-2Z |
30 |
72 |
23.8 |
23.8 |
1 |
24.6 |
21.4 |
3.5 |
5 |
510 |
| LR5206-2Z |
30 |
72 |
23.8 |
23.8 |
1 |
24.6 |
21.4 |
3.5 |
5 |
510 |
| LR5207-2RS |
35 |
80 |
27 |
27 |
1.1 |
30.5 |
22.4 |
2.8 |
3.9 |
660 |
| LR5207-X-2Z |
35 |
80 |
27 |
27 |
1.1 |
30.5 |
22.4 |
2.8 |
3.9 |
660 |
| LR5207-2Z |
35 |
80 |
27 |
27 |
1.1 |
30.5 |
22.4 |
2.8 |
3.9 |
660 |
| LR5208-2RS |
40 |
85 |
30.2 |
30.2 |
1.1 |
34.5 |
25.5 |
2.5 |
3.5 |
750 |
| LR5208-X-2Z |
40 |
85 |
30.2 |
30.2 |
1.1 |
34.5 |
25.5 |
2.5 |
3.5 |
750 |
| LR5208-2Z |
40 |
85 |
30.2 |
30.2 |
1.1 |
34.5 |
25.5 |
2.5 |
3.5 |
750 |
| LR5302-2RS |
15 |
47 |
19 |
19 |
1 |
14.6 |
9.2 |
6.5 |
10 |
150 |
| LR5302-2Z |
15 |
47 |
19 |
19 |
1 |
14.6 |
9.2 |
6.5 |
10 |
150 |
| LR5303-2RS |
17 |
52 |
22.2 |
22.2 |
1 |
17.2 |
11.1 |
4.7 |
6.5 |
210 |
| LR5303-2Z |
17 |
52 |
22.2 |
22.2 |
1 |
17.2 |
11.1 |
4.7 |
6.5 |
210 |
| LR5304-2RS |
20 |
62 |
22.2 |
22.2 |
1.1 |
21.1 |
14.5 |
4.5 |
6.5 |
340 |
| LR5304-2Z |
20 |
62 |
22.2 |
22.2 |
1.1 |
21.1 |
14.5 |
4.5 |
6.5 |
340 |
| LR5305-2RS |
25 |
72 |
25.4 |
25.4 |
1.1 |
27.5 |
19.5 |
3.9 |
5.5 |
500 |
| LR5305-2Z |
25 |
72 |
25.4 |
25.4 |
1.1 |
27.5 |
19.5 |
3.9 |
5.5 |
500 |
| LR5306-2RS |
30 |
80 |
30.2 |
30.2 |
1.1 |
36.5 |
26.5 |
3.1 |
4.3 |
670 |
| LR5306-2Z |
30 |
80 |
30.2 |
30.2 |
1.1 |
36.5 |
26.5 |
3.1 |
4.3 |
670 |
| LR5307-2RS |
35 |
90 |
34.9 |
34.9 |
1.5 |
44.5 |
33 |
2.5 |
3.6 |
970 |
| LR5307-2Z |
35 |
90 |
34.9 |
34.9 |
1.5 |
44.5 |
33 |
2.5 |
3.6 |
970 |
| LR5308-2RS |
40 |
100 |
36.5 |
36.5 |
1.5 |
56 |
42 |
2.3 |
3.3 |
1200 |
| LR5308-2Z |
40 |
100 |
36.5 |
36.5 |
1.5 |
56 |
42 |
2.3 |
3.3 |
1200 | |
|
|
|
|
|
|
|
