| GJZ15滚动花键套、GJZ20滚动花键套、GJZ25滚动花键套、GJZA25滚动花键套、GJZ30T滚动花键套、GJZ32滚动花键套、GJZA32滚动花键套、GJZ40滚动花键套、GJZA40滚动花键套、GJZ50滚动花键套、GJZA50滚动花键套、GJZ60滚动花键套、GJZ70滚动花键套、GJZ85滚动花键套 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路99号 |
| | | 联系电话： | 025-86629730、52217447、86622491 |
| | | 公司传真： | 025-52300551（电话：86622492、86622493） |
| | | 联 系 人： | 刘长岭 13801591302 |
| | | 联系邮件： | hrbn@vip.qq.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|

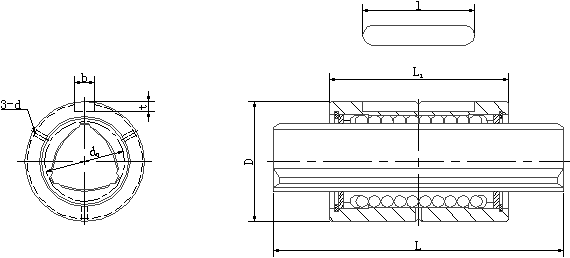

规格型号 |
公称轴径d0 |
外径D |
套长度L1 |
轴最大长度L |
键槽宽度b |
键槽深度t |
键槽长度l |
油孔d |
基本定额扭矩 |
|
动扭矩CT N-m |
静扭矩C0T N-m |
|
GJZ15 |
15 |
23 |
0 |
40 |
0 |
300 |
3.5H8 |
2 |
0 |
20 |
2 |
27 |
45 |
|
-0.013 |
-0.3 |
-0.3 |
|
GJZ20 |
20 |
30 |
0 |
50 |
0 |
500 |
4H8 |
2.5 |
0.1 |
26 |
3 |
64 |
90 |
|
-0.013 |
-0.3 |
0 |
|
GJZ25 |
25 |
38 |
0 |
60 |
0 |
700 |
5H8 |
3 |
0.2 |
36 |
3 |
134 |
184 |
|
-0.016 |
-0.3 |
0 |
|
GJZA25 |
25 |
38 |
0 |
70 |
0 |
700 |
5H8 |
3 |
0.2 |
36 |
3 |
152 |
225 |
|
-0.016 |
-0.3 |
0 |
|
GJZ30T |
30 |
45 |
0 |
70 |
0 |
1000 |
6H8 |
3 |
0.2 |
40 |
3 |
238 |
317 |
|
-0.016 |
-0.3 |
0 |
|
GJZ32 |
32 |
48 |
0 |
70 |
0 |
1000 |
8H8 |
4 |
0.2 |
40 |
3 |
238 |
317 |
|
-0.016 |
-0.3 |
0 |
|
GJZA32 |
32 |
48 |
0 |
80 |
0 |
1000 |
8H8 |
4 |
0.2 |
40 |
3 |
272 |
388 |
|
-0.016 |
-0.3 |
0 |
|
GJZ40 |
40 |
60 |
0 |
90 |
0 |
1200 |
10H8 |
5 |
0.2 |
56 |
4 |
523 |
670 |
|
-0.019 |
-0.3 |
0 |
|
GJZA40 |
40 |
60 |
0 |
100 |
0 |
1200 |
10H8 |
5 |
0.2 |
56 |
4 |
607 |
837 |
|
-0.019 |
-0.3 |
0 |
|
GJZ50 |
50 |
75 |
0 |
100 |
0 |
1200 |
14H8 |
5.5 |
0.2 |
60 |
4 |
956 |
1146 |
|
-0.019 |
-0.3 |
0 |
|
GJZA50 |
50 |
75 |
0 |
112 |
0 |
1200 |
14H8 |
5.5 |
0.2 |
60 |
4 |
1130 |
1473 |
|
-0.019 |
-0.3 |
0 |
|
GJZ60 |
60 |
90 |
0 |
127 |
0 |
1200 |
16H8 |
6 |
0.2 |
70 |
4 |
1631 |
2262 |
|
-0.022 |
-0.3 |
0 |
|
GJZ70 |
70 |
100 |
0 |
135 |
0 |
1200 |
18H8 |
6 |
0.1 |
68 |
4 |
2617 |
3597 |
|
-0.022 |
-0.3 |
0 |
|
GJZ85 |
85 |
120 |
0 |
155 |
0 |
1200 |
20H8 |
7 |
0.1 |
80 |
5 |
4139 |
5635 |
|
-0.013 |
-0.3 |
0 | |
|
|
|
|
|
|
|
