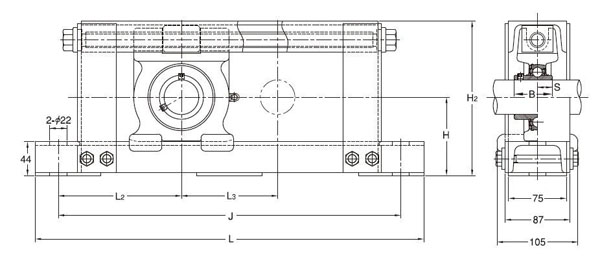

轴经	轴承	主 要 寸 法 (mm)								安装	轴承	基本額定符合		軸承座	框架	重量
	轴承座									螺丝		kn
mm	框架型号	H	H2	L	J	L2	L3	B	S	尺寸	型号	Cr	C0r	型号	型号	kg
65	UCTL313+WL500	145	285	940	880	190	500	75	30	M18	UC313	92.5	59.7	TL313	WL313-500	38.3
65	UCTL313+WL600	145	285	1040	980	190	600	75	30	M18	UC313	92.5	59.7	TL313	WL313-600	40.6
65	UCTL313+WL700	145	285	1140	1080	190	700	75	30	M18	UC313	92.5	59.7	TL313	WL313-700	42.9
65	UCTL313+WL800	145	285	1240	1180	190	800	75	30	M18	UC313	92.5	59.7	TL313	WL313-800	45.3
65	UCTL313+WL900	145	285	1340	1280	190	900	75	30	M18	UC313	92.5	59.7	TL313	WL313-900	47.6
70	UCTL314+WL500	150	295	960	900	200	500	78	33	M18	UC314	104	68	TL314	WL314-500	10.8
70	UCTL314+WL600	150	295	1060	1000	200	600	78	33	M18	UC314	104	68	TL314	WL314-600	43.1
70	UCTL314+WL700	150	295	1160	1100	200	700	78	33	M18	UC314	104	68	TL314	WL314-700	45.4
70	UCTL314+WL800	150	295	1260	1200	200	800	78	33	M18	UC314	104	68	TL314	WL314-800	47.8
70	UCTL314+WL900	150	295	1360	1300	200	900	78	33	M18	UC314	104	68	TL314	WL314-900	50.1
75	UCTL315+WL500	155	305	980	920	210	500	82	32	M18	UC315	114	76.9	TL315	WL315-500	43.6
75	UCTL315+WL600	155	305	1080	1020	210	600	82	32	M18	UC315	114	76.9	TL315	WL315-600	45.9
75	UCTL315+WL700	155	305	1180	1120	210	700	82	32	M18	UC315	114	76.9	TL315	WL315-700	48.3
75	UCTL315+WL800	155	305	1280	1220	210	800	82	32	M18	UC315	114	76.9	TL315	WL315-800	50.6
75	UCTL315+WL900	155	305	1380	1320	210	900	82	32	M18	UC315	114	76.9	TL315	WL315-900	52.9
80	UCTL316+WL500	160	315	1000	940	220	500	86	34	M18	UC316	123	86.4	TL316	WL316-500	45.1
80	UCTL316+WL600	160	315	1100	1040	220	600	86	34	M18	UC316	123	86.4	TL316	WL316-600	47.4
80	UCTL316+WL700	160	315	1200	1140	220	700	86	34	M18	UC316	123	86.4	TL316	WL316-700	49.7
80	UCTL316+WL800	160	315	1300	1240	220	800	86	34	M18	UC316	123	86.4	TL316	WL316-800	52
80	UCTL316+WL900	160	315	1400	1340	220	900	86	34	M18	UC316	123	86.4	TL316	WL316-900	54.4
85	UCTL317+WL500	165	325	1020	960	230	500	96	40	M18	UC317	132	96.5	TL317	WL317-500	49.8
85	UCTL317+WL600	165	325	1120	1060	230	600	96	40	M18	UC317	132	96.5	TL317	WL317-600	52.1
85	UCTL317+WL700	165	325	1220	1160	230	700	96	40	M18	UC317	132	96.5	TL317	WL317-700	54.4
85	UCTL317+WL800	165	325	1320	1260	230	800	96	40	M18	UC317	132	96.5	TL317	WL317-800	56.7
85	UCTL317+WL900	165	325	1420	1360	230	900	96	40	M18	UC317	132	96.5	TL317	WL317-900	59
90	UCTL318+WL500	170	335	1050	990	245	500	96	40	M18	UC318	143	107.2	TL318	WL318-500	53.1
90	UCTL318+WL600	170	335	1150	1090	245	600	96	40	M18	UC318	143	107.2	TL318	WL318-600	55.4
90	UCTL318+WL700	170	335	1250	1190	245	700	96	40	M18	UC318	143	107.2	TL318	WL318-700	57.7
90	UCTL318+WL800	170	335	1350	1290	245	800	96	40	M18	UC318	143	107.2	TL318	WL318-800	60.1
90	UCTL318+WL900	170	335	1450	1390	245	900	96	40	M18	UC318	143	107.2	TL318	WL318-900	62.4
