| E8轴承内径8X24X7角接触球轴承、E9轴承内径9X28X8角接触球轴承、E10轴承内径10X28X8角接触球轴承、E11轴承内径11X32X7角接触球轴承、E12轴承内径12X32X7角接触球轴承、E13轴承内径13X30X7角接触球轴承、E15轴承内径15X35X8角接触球轴承、BO15轴承内径15X40X10角接触球轴承、L17轴承内径17X40X10角接触球轴承 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路99号 |
| | | 联系电话： | 025-86629730、52217447、86622491 |
| | | 公司传真： | 025-52300551（电话：86622492、86622493） |
| | | 联 系 人： | 刘长岭 13801591302 |
| | | 联系邮件： | hrbn@vip.qq.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
Basic Load Ratings(Kgf) |
Boundary Dimensions(mm) |
Limiting Speeds(rpm) |

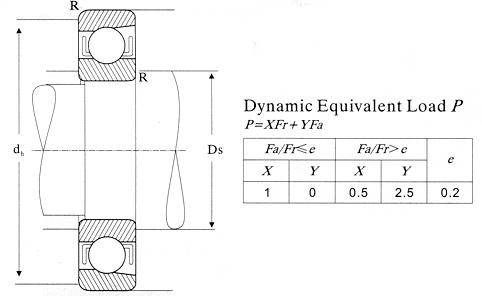

Abutment and Fillet
Dimension(mm) |
Mass(kg) |
|
Eseries |
EN Series |
d |
D |
B,T |
r |
r1 |
Dynamic
C |
Static
C |
Oil |
Ds(min) |
dh(max) |
R(max) |
|
E4 |
EN4 |
4 |
16 |
5 |
0.3 |
0.2 |
168 |
26 |
40000 |
5.6 |
14.4 |
0.15 |
0.005 |
|
E5 |
EN5 |
5 |
16 |
5 |
0.3 |
0.2 |
168 |
26 |
40000 |
6.6 |
14.4 |
0.15 |
0.005 |
|
E6 |
EN6 |
6 |
21 |
7 |
0.5 |
0.3 |
254 |
40 |
36000 |
8.5 |
18.5 |
0.3 |
0.011 |
|
E7 |
EN7 |
7 |
22 |
7 |
0.5 |
0.3 |
254 |
40 |
36000 |
9.5 |
19.5 |
0.3 |
0.013 |
|
E8 |
EN8 |
8 |
24 |
7 |
0.5 |
0.3 |
350 |
58 |
34000 |
10.5 |
21.5 |
0.3 |
0.016 |
|
E9 |
EN9 |
9 |
28 |
8 |
0.5 |
0.3 |
465 |
79 |
30000 |
11.5 |
25.5 |
0.3 |
0.024 |
|
E10 |
EN10 |
10 |
28 |
8 |
0.5 |
0.3 |
465 |
79 |
30000 |
12.5 |
25.5 |
0.3 |
0.023 |
|
E11 |
EN11 |
11 |
32 |
7 |
0.5 |
0.3 |
450 |
78 |
28000 |
13.5 |
29.5 |
0.3 |
0.029 |
|
E12 |
EN12 |
12 |
32 |
7 |
0.5 |
0.3 |
450 |
78 |
28000 |
14.5 |
29.5 |
0.3 |
0.028 |
|
E13 |
EN13 |
13 |
30 |
7 |
0.5 |
0.3 |
450 |
78 |
28000 |
15.5 |
27.5 |
0.3 |
0.022 |
|
- |
EN14 |
14 |
35 |
8 |
0.5 |
0.3 |
590 |
106 |
24000 |
16.5 |
32.5 |
0.3 |
0.035 |
|
E15 |
EN15 |
15 |
35 |
8 |
0.5 |
0.3 |
590 |
106 |
24000 |
17.5 |
32.5 |
0.3 |
0.034 |
|
BO15 |
- |
15 |
40 |
10 |
1 |
0.6 |
750 |
139 |
18000 |
20 |
35 |
0.6 |
0.060 |
|
- |
EN16 |
16 |
38 |
10 |
0.7 |
0.4 |
705 |
127 |
20000 |
19.5 |
34.5 |
0.4 |
0.048 |
|
L17 |
- |
17 |
40 |
10 |
1 |
0.5 |
750 |
139 |
18000 |
22 |
35 |
0.6 |
0.055 |
|
- |
EN17 |
17 |
44 |
11 |
1 |
0.6 |
750 |
138 |
18000 |
22 |
39 |
0.6 |
0.078 |
|
BO17 |
- |
27 |
44 |
11 |
1 |
0.6 |
750 |
138 |
18000 |
22 |
39 |
0.6 |
0.075 |
|
- |
EN18 |
18 |
40 |
9 |
0.7 |
0.4 |
515 |
97 |
20000 |
21.0 |
36.5 |
0.4 |
0.050 |
|
E19 |
EN19 |
19 |
40 |
9 |
0.7 |
0.4 |
515 |
97 |
20000 |
22.0 |
36.5 |
0.4 |
0.048 |
|
E20 |
EN20 |
20 |
47 |
12 |
1.5 |
1 |
1120 |
218 |
18000 |
26 |
41 |
1 |
0.080 | |
|
|
|
|
|
|
|
