轴径Shaft Diameter	轴承型号		外形尺寸								基本额定负荷				极限转速	重量Mass
	Bearing Designation		Borndary Dimensions								Basic Load Rating				Limiting Speed

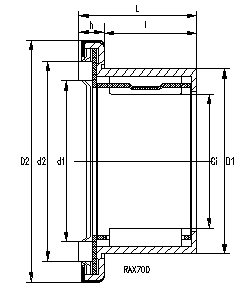

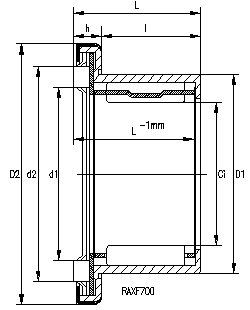

	RAX700系列	RAXF700系列	Ci	D1	D2 msx	l	h	L	d1	d2	径向Radial		轴向Axial
											动Dyn. Cr	静Stat. Cor	动Dyn. Ca	静Stat. Coa
mm	轴承型号		mm								N				rpm	g
5	RAX705	--	5	9	15.5	7.7	3.3	11	7.2	11.2	1720	1560	2520	5080	25000	4.5	--
12	RAX712	RAXF712	12	18	27.5	10	4.2	14.2	15	22.6	5040	5760	5520	14100	13000	16.5	17.5
14	RAX714	RAXF714	14	20	29.5	10	4.2	14.2	17	24.6	5520	6800	5920	16000	11500	18	20
15	RAX715	RAXF715	15	21	31.5	10	4.2	14.2	19	26.6	5920	7440	6240	17600	10500	20	22
18	RAX718	RAXF718	18	24	33.5	14	4.2	18.2	21	28.6	9200	14100	7200	18400	10000	27	30
20	RAX720	RAXF720	20	26	36.5	14	4.2	18.2	22	31.6	9760	15600	9400	31200	9000	31	35
25	RAX725	RAXF725	25	33	45.5	18	4.2	22.2	30	39.6	16400	25600	10900	40600	7200	55	60
30	RAX730	RAXF730	30	38	50.5	18	4.2	22.2	35	44.7	17800	30000	11900	54000	6300	63	70
35	RAX735	RAXF735	35	43	56.5	18	4.2	22.2	39	50.9	19600	36000	15500	70400	5500	75	84
40	RAX740	RAXF740	40	48	61.5	18	4.2	22.2	43	54.9	20900	40800	16300	76800	5000	86	96
45	RAX745	RAXF745	45	52	66.5	18	4.2	22.2	48	59.9	19800	44000	17400	87200	4500	88	99
