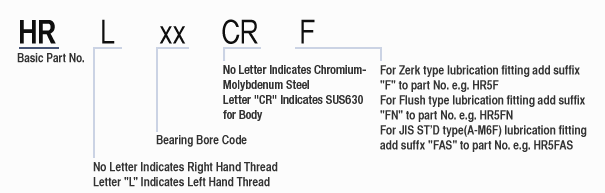

Dimensions in mm

MINEBEA PART No.	øB H7	øD ±0.5	W 0 -0.13	H ±0.13	F ±0.5	TH JIS CL2	L ±0.7	øN ±0.5	øP ±0.5	C +0.2 -0.7	S ±0.25	α DEG
HR3	3	16	7	5.25	30	M3×0.5	16	7	9	3.5	8	18
HR4	4	18	9.5	7.75	32	M4×0.7		8.5	11		10	16
HR5	5	20.5	11	8.75	35	M5×0.8	19	10.8	15	4.5	12	15
HR6	6				37	M6×1.0
HR8	8	23		8.25	41	M8×1.25	22	12.5	17	6.5	14	14
HR10	10	26	12.5	10.75	46	M10×1.5	24	14	19		15	8
HR12	12	34	16	13.25	57	M12×1.75	32	18.5	24		20	10
HR14	14	36	17	14.25	60	M14×2.0	33	19		7.5		8
HR15	15	38	18		62		34	20	25	8.5	21	11
HR16	16	39	19	15.25	63.5	M16×2.0	35	22	27	9.5	23	10
HR17	17	41	20		68	M16×1.5	37	23	28	9.5	24	12
HR18	18	43		16.3	74	M18×1.5	40	24	30	10	26	10
HR20	20	45	22		76	M20×1.5	41	25				13
HR22	22	52		19.3	85	M22×1.5	47	28	36	12	30	6
HR25	25	70	35	25.3	105	M24×2.0	54	42	50	14	43	15
HR28	28	75			110	M27×2.0	58	44	56	15	47	14
HR30	30	78	37	26.3	120	M30×2.0	62	48	60	16	51

Dimensions in mm

MINEBEA PART No.	øO (REF)	SøDB (REF)	Static Limit load kN		Static Ultimate Load kN	Fatigue Load*2 kN	Approx. Weight g
			Radial	Axial*1
HR3	5.2	8.73	22.45	2.94	30.89	5.14	29
HR4	5.8	11.11	34.71	3.53	43.34	7.15	35
HR5	7.8	13.49	27.94	5.09	34.91	5.78	40
HR6
HR8	10.9	15.48	34.02	5.58	43.44	7.06	51
HR10	12.2	17.46	37.65	6.76	47.07	7.84	73
HR12	15.4	22.22	78.06	8.33	97.57	16.18	150
HR14	18.9	25.4	82.96	9.02	103.65	17.25	165
HR15	19	26.19	95.32	9.31	119.15	19.8	189
HR16	19.2	26.99	100.71	9.7	125.81	20.98	218
HR17	20.4	28.58	101.4	10.29	126.7	21.08	241
HR18			120.62	12.16	150.72	25.1	283
HR20	22.9	31.75	121.3	12.84	151.61	25.2	330
HR22	27.1	34.92	156.21	15.1	195.25	32.55	580
HR25	32.3	47.62	300.08	20.88	378.04	63.05	1230
HR28	36.8	50.8	283.7	23.24	354.6	59.13	1620
HR30	40.4	54.77	271.93	24.81	339.89	56.68	1930
