滚轮型号			重量	尺寸 (mm)						载荷		疲劳极限载荷	极限转速
哈宁轴承	德国	欧洲	≈(g)	D	d	B	C	R	Rs	Cw(N)	Cow(N)	Puw(N)	nD seals	nD shields
LR 604 NPP	LR604NPP		10	13	4	4	4	-	0.2	860	350	7	24000	35000
LR 604 NPPU	LR604NPPU		10	13	4	4	4	500	0.2	860	350	7	24000	35000
LR 604 KDD	LR604KDD		10	13	4	4	4	-	0.2	860	350	7	24000	35000
LR 604 KDDU	LR604KDDU		10	13	4	4	4	500	0.2	860	350	7	24000	35000
LR 605 NPP	LR605NPP		10	16	5	5	5	-	0.2	1190	490	10	23000	33000
LR 605 NPPU	LR605NPPU		10	16	5	5	5	500	0.2	1190	490	10	23000	33000
LR 605 KDD	LR605KDD		10	16	5	5	5	-	0.2	1190	490	10	23000	33000
LR 605 KDDU	LR605KDDU		10	16	5	5	5	500	0.2	1190	490	10	23000	33000
LR 606 NPP	LR606NPP		10	19	6	6	6	-	0.3	1740	700	40	22000	31000
LR 606 NPPU	LR606NPPU		10	19	6	6	6	500	0.3	1740	700	40	22000	31000
LR 606 KDD	LR606KDD		10	19	6	6	6	-	0.3	1740	700	40	22000	31000
LR 606 KDDU	LR606KDDU		10	19	6	6	6	500	0.3	1740	700	40	22000	31000
LR 607 NPP	LR607NPP		10	22	7	6	6	-	0.3	2130	870	46	20000	29000
LR 607 NPPU	LR607NPPU		10	22	7	6	6	500	0.3	2130	870	46	20000	29000
LR 607 KDD	LR607KDD		10	22	7	6	6	-	0.3	2130	870	46	20000	29000
LR 607 KDDU	LR607KDDU		10	22	7	6	6	500	0.3	2130	870	46	20000	29000
LR 608 NPP	LR608NPP		20	24	8	7	7	-	0.3	2750	1250	58	19000	28000
LR 608 NPPU	LR608NPPU		20	24	8	7	7	500	0.3	2750	1250	58	19000	28000
LR 608 KDD	LR608KDD		20	24	8	7	7	-	0.3	2750	1250	58	19000	28000
LR 608 KDDU	LR608KDDU		20	24	8	7	7	500	0.3	2750	1250	58	19000	28000
LR 6000 NPP	LR6000NPP		20	28	10	8	8	-	0.3	3650	1700	52	17000	24000
LR 6000 NPPU	LR6000NPPU		20	28	10	8	8	500	0.3	3650	1700	52	17000	24000
LR 6000 KDD	LR6000KDD		20	28	10	8	8	-	0.3	3650	1700	52	17000	24000
LR 6000 KDDU	LR6000KDDU		20	28	10	8	8	500	0.3	3650	1700	52	17000	24000
LR 6001 NPP	LR6001NPP		30	30	12	8	8	-	0.3	4300	2100	77	16000	22000
LR 6001 NPPU	LR6001NPPU		30	30	12	8	8	500	0.3	4300	2100	77	16000	22000
LR 6001 KDD	LR6001KDD		30	30	12	8	8	-	0.3	4300	2100	77	16000	22000
LR 6001 KDDU	LR6001KDDU		30	30	12	8	8	500	0.3	4300	2100	77	16000	22000

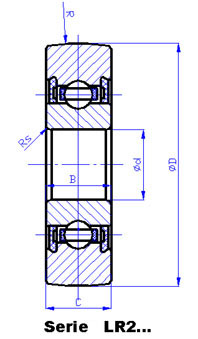

LR 200 NPP	LR200NPP		50	32	10	9	9	-	0.6	4350	2130	88	13000	17000
LR 200 NPPU	LR200NPPU	361200R	50	32	10	9	9	500	0.6	4350	2130	88	13000	17000
LR 200 KDD	LR200KDD		50	32	10	9	9	-	0.6	4350	2130	88	13000	17000
LR 200 KDDU	LR200KDDU		50	32	10	9	9	500	0.6	4350	2130	88	13000	17000
LR 201 NPP	LR201NPP		50	35	12	10	10	-	0.6	5600	2700	112	12000	15000
LR 201 NPPU	LR201NPPU	361201R	50	35	12	10	10	500	0.6	5600	2700	112	12000	15000
LR 201 KDD	LR201KDD		50	35	12	10	10	-	0.6	5600	2700	112	12000	15000
LR 201 KDDU	LR201KDDU		50	35	12	10	10	500	0.6	5600	2700	112	12000	15000
LR 201-15 NPP	LR201RR	LR 201 RR	70	35	12	15	10	-	0.6	5600	2700	112	12000	15000
LR 201-15 NPPU	LR201RRU	LR 201 RRU	70	35	12	15	10	500	0.6	5600	2700	112	12000	15000
LR 201-15KDD			70	35	12	15	10	-	0.6	5600	2700	112	12000	15000
LR 201-15 KDDU			70	35	12	15	10	500	0.6	5600	2700	112	12000	15000
LR 202 NPP	LR202NPP		70	40	15	11	11	-	0.6	6500	3300	136	11000	13000
LR 202 NPPU	LR202NPPU	361202R	70	40	15	11	11	500	0.6	6500	3300	136	11000	13000
LR 202 KDD	LR202KDD		70	40	15	11	11	-	0.6	6500	3300	136	11000	13000
LR 202 KDDU	LR202KDDU		70	40	15	11	11	500	0.6	6500	3300	136	11000	13000
LR 202-14 NPP	LR202RR	LR 202 RR	80	40	15	14.4	11	-	0.6	6500	3300	136	11000	13000
LR 202-14 NPPU	LR202RRU	LR 202 RRU	80	40	15	14.4	11	500	0.6	6500	3300	136	11000	13000
LR 202-14KDD			80	40	15	14.4	11	-	0.6	6500	3300	136	11000	13000
LR 202-14 KDDU			80	40	15	14.4	11	500	0.6	6500	3300	136	11000	13000
LR 203 NPP	LR203NPP		110	47	17	12	12	-	0.6	8400	4400	183	9000	12000
LR 203 NPPU	LR203NPPU	361203R	110	47	17	12	12	500	0.6	8400	4400	183	9000	12000
LR 203 KDD	LR203KDD		110	47	17	12	12	-	0.6	8400	4400	183	9000	12000
LR 203 KDDU	LR203KDDU		110	47	17	12	12	500	0.6	8400	4400	183	9000	12000
LR 204 NPP	LR204NPP		150	52	20	14	14	-	1	10500	5600	233	8000	10000
LR 204 NPPU	LR204NPPU	361204R	150	52	20	14	14	500	1	10500	5600	233	8000	10000
LR 204 KDD	LR204KDD		150	52	20	14	14	-	1	10500	5600	233	8000	10000
LR 204 KDDU	LR204KDDU		150	52	20	14	14	500	1	10500	5600	233	8000	10000
LR 205 NPP	LR205NPP		230	62	25	15	15	-	1	12500	7100	291	7000	8500
LR 205 NPPU	LR205NPPU	361205R	230	62	25	15	15	500	1	12500	7100	291	7000	8500
LR 205 KDD	LR205KDD		230	62	25	15	15	-	1	12500	7100	291	7000	8500
LR 205 KDDU	LR205KDDU		230	62	25	15	15	500	1	12500	7100	291	7000	8500
LR 206 NPP	LR206NPP		330	72	30	16	16	-	1	16600	9600	391	5500	7500
LR 206 NPPU	LR206NPPU	361206R	330	72	30	16	16	500	1	16600	9600	391	5500	7500
LR 206 KDD	LR206KDD		330	72	30	16	16	-	1	16600	9600	391	5500	7500
LR 206 KDDU	LR206KDDU		330	72	30	16	16	500	1	16600	9600	391	5500	7500
LR 207 NPP	LR207NPP		400	80	35	17	17	-	1.1	20200	11900	490	4500	6300
LR 207 NPPU	LR207NPPU	361207R	400	80	35	17	17	500	1.1	20200	11900	490	4500	6300
LR 207 KDD	LR207KDD		400	80	35	17	17	-	1.1	20200	11900	490	4500	6300
LR 207 KDDU	LR207KDDU		400	80	35	17	17	500	1.1	20200	11900	490	4500	6300
LR 208 NPP	LR208NPP		450	85	40	18	18	-	1.1	22800	13600	530	4000	5000
LR 208 NPPU	LR208NPPU		450	85	40	18	18	500	1.1	22800	13600	530	4000	5000
LR 208 KDD	LR208KDD		450	85	40	18	18	-	1.1	22800	13600	530	4000	5000
LR 208 KDDU	LR208KDDU		450	85	40	18	18	500	1.1	22800	13600	530	4000	5000
LR 209 NPP	LR209NPP		500	90	45	19	19	-	1.1	22500	13700	564	3600	4500
LR 209 NPPU	LR209NPPU		500	90	45	19	19	500	1.1	22500	13700	564	3600	4500
LR 209 KDD	LR209KDD		500	90	45	19	19	-	1.1	22500	13700	564	3600	4500
LR 209 KDDU	LR209KDDU		500	90	45	19	19	500	1.1	22500	13700	564	3600	4500

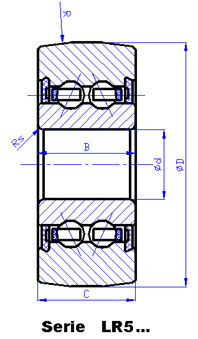

LR 50/5 NPP	LR50/5NPP		10	17	5	7	7	-	0.2	1650	950	39	12000	16000
LR 50/5 NPPU	LR50/5NPPU		10	17	5	7	7	500	0.2	1650	950	39	12000	16000
LR 50/5 KDD	LR50/5KDD		10	17	5	7	7	-	0.2	1650	950	39	12000	16000
LR 50/5 KDDU	LR50/5KDDU		10	17	5	7	7	500	0.2	1650	950	39	12000	16000
LR 50/6 NPP	LR50/6NPP		20	19	6	9	9	-	0.3	2650	1310	54	11000	15000
LR 50/6 NPPU	LR50/6NPPU		20	19	6	9	9	500	0.3	2650	1310	54	11000	15000
LR 50/6 KDD	LR50/6KDD		20	19	6	9	9	-	0.3	2650	1310	54	11000	15000
LR 50/6 KDDU	LR50/6KDDU		20	19	6	9	9	500	0.3	2650	1310	54	11000	15000
LR 50/7 NPP	LR50/7NPP		20	22	7	10	10	-	0.3	3300	1690	69	10000	14000
LR 50/7 NPPU	LR50/7NPPU		20	22	7	10	10	500	0.3	3300	1690	69	10000	14000
LR 50/7 KDD	LR50/7KDD		20	22	7	10	10	-	0.3	3300	1690	69	10000	14000
LR 50/7 KDDU	LR50/7KDDU		20	22	7	10	10	500	0.3	3300	1690	69	10000	14000
LR 50/8 NPP	LR50/8NPP		30	24	8	11	11	-	0.3	4200	2360	120	10000	14000
LR 50/8 NPPU	LR50/8NPPU		30	24	8	11	11	500	0.3	4200	2360	120	10000	14000
LR 50/8 KDD	LR50/8KDD		30	24	8	11	11	-	0.3	4200	2360	120	10000	14000
LR 50/8 KDDU	LR50/8KDDU		30	24	8	11	11	500	0.3	4200	2360	120	10000	14000
