| K15X19X13滚针轴承、K15X19X17滚针轴承、K15X19X24ZW滚针轴承、K15X20X13滚针轴承 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路99号 |
| | | 联系电话： | 025-86629730、52217447、52251441 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 13801591302 |
| | | 联系邮件： | hrbn@vip.qq.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
轴 径
Shaft
Diameter |
轴承型号
Bearing Designation |
重量
Mass
近似
Approx |
外形尺寸
Boundary Dimensions |
基本额定负荷
Basic Load Rating |
极限转速
Limiting
Speed |
|
现行的
Current |
原型号
Original Code |

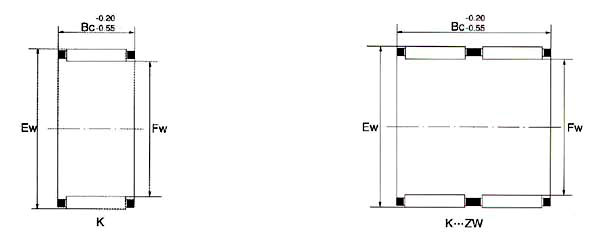

Fw |
Ew |
Bc |
动Cr
Dynamic |
静Cor
Static |
油润滑
Oil |
| mm |
g |
mm |
N |
rpm |
| 15 |
K15X19X13 |
39241/15 |
7 |
15 |
19 |
13 |
8300 |
9800 |
22000 |
| K15X19X17 |
59241/15 |
8.8 |
15 |
19 |
17 |
10300 |
15000 |
22000 |
| K15X19X24 ZW |
79241/15 |
10.5 |
15 |
19 |
24 |
12800 |
20100 |
22000 |
| K15X20X13 |
29242/15 |
8.9 |
15 |
20 |
13 |
9700 |
11000 |
22000 |
| K15X21X12 |
19243/15 |
10 |
15 |
21 |
12 |
10000 |
13000 |
22000 |
| K15X21X15 |
39242/15 |
13 |
15 |
21 |
15 |
13800 |
16000 |
22000 |
| K15X21X21 |
|
18.2 |
15 |
21 |
21 |
18000 |
24000 |
22000 |
| 16 |
K16X20X10 |
29241/16 |
5.7 |
16 |
20 |
10 |
7600 |
9700 |
22000 |
| K16X20X13 |
39241/16 |
7.1 |
16 |
20 |
13 |
8700 |
11300 |
22000 |
| K16X20X17 |
59241/16 |
9.2 |
16 |
20 |
17 |
11200 |
16300 |
22000 |
| K16X21X10 |
19242/16 |
3.7 |
16 |
21 |
10 |
9000 |
12000 |
22000 |
| K16X22X12 |
19243/16 |
10.4 |
16 |
22 |
12 |
11000 |
12000 |
21000 |
| K16X22X13 |
|
11.9 |
16 |
22 |
13 |
12000 |
13400 |
21000 |
| K16X22X16 |
|
13.7 |
16 |
22 |
16 |
14300 |
17000 |
21000 |
| K16X22X20 |
49243/16 |
16.7 |
16 |
22 |
20 |
18000 |
22300 |
21000 |
| K16X23X14 |
19244/16 |
20 |
16 |
23 |
14 |
19000 |
21000 |
19000 |
| K16X24X20 |
19245/16 |
24.9 |
16 |
24 |
20 |
21100 |
23000 |
20000 |
| 17 |
K17X21X10 |
29241/17 |
5.6 |
17 |
21 |
10 |
7900 |
10100 |
21000 |
| K17X21X13 |
39241/17 |
7.5 |
17 |
21 |
13 |
10000 |
14100 |
21000 |
| K17X21X17 |
59241/17 |
9.5 |
17 |
21 |
17 |
12000 |
17400 |
21000 |
| K17X23X14 |
29243/17 |
11.5 |
17 |
23 |
14 |
11000 |
15000 |
21000 |
| 18 |
K18X22X10 |
29241/18 |
6.1 |
18 |
22 |
10 |
8200 |
9900 |
20000 |
| K18X22X13 |
39241/18 |
7.7 |
18 |
22 |
13 |
9000 |
12100 |
20000 |
| K18X22X17 |
59241/18 |
10.8 |
18 |
22 |
17 |
11900 |
17600 |
20000 |
| K18X24X12 |
19243/18 |
11.6 |
18 |
24 |
12 |
11200 |
12900 |
20000 |
| K18X24X13 |
|
12.6 |
18 |
24 |
13 |
12900 |
14900 |
20000 |
| K18X24X13.5 |
|
13 |
18 |
24 |
13.5 |
12900 |
14900 |
20000 |
| K18X24X20 |
49243/18 |
19 |
18 |
24 |
20 |
20000 |
26500 |
20000 |
| K18X25X14 |
|
14.9 |
18 |
25 |
14 |
16500 |
18800 |
20000 |
| K18X25X22 |
|
24.9 |
18 |
25 |
22 |
22900 |
28400 |
20000 |
| K18X26X14 |
|
19 |
18 |
26 |
14 |
18000 |
20000 |
18000 |
| K18X28X16 |
19244/18 |
24 |
18 |
28 |
16 |
19000 |
18400 |
19000 |
| 19 |
K19X23X13 |
|
8.2 |
19 |
23 |
13 |
9300 |
13000 |
20000 |
| K19X23X17 |
|
11.1 |
19 |
23 |
17 |
12000 |
18600 |
20000 |
| 20 |
K20X24X10 |
29241/20 |
6.5 |
20 |
24 |
10 |
8700 |
12100 |
19000 |
| K20X24X12 |
|
8 |
20 |
24 |
12 |
9600 |
13800 |
19000 |
| K20X24X13 |
39241/20 |
8.9 |
20 |
24 |
13 |
9600 |
13800 |
19000 |
| K20X24X17 |
29241/20 |
11.2 |
20 |
24 |
17 |
12400 |
20000 |
19000 |
| K20X26X12 |
19243/20 |
13.2 |
20 |
26 |
12 |
13100 |
15700 |
19000 | |
|
|
|
|
|
|
|
