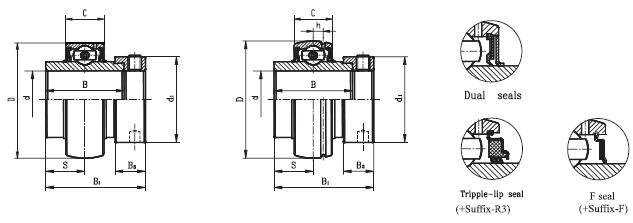

轴承代码	轴径		外形尺寸(mm)/(in.)								偏心套代号	基本额定载荷 (N)		重量(kg)
	d		D	C	B	S	B1	B3	h	d1		Dynamic Cr	Static Cor
	(in.)	(mm)
CHC202S		15	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A202S	9550	4780	0.22
CHC202-10S	5/8		40	14	27.8	13.9	37.3	13.5	3.5	28.6	A202-10S	9550	4780	0.21
CHC203S		17	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A203S	9550	4780	0.20
CHC203-11S	11/16		40	14	27.8	13.9	37.3	13.5	3.5	28.6	A203-11S	9550	4780	0.19
CHC204-12	3/4		47	16	34	17	43.5	13.5	4.4	33.3	A204-12	12800	6650	0.23
CHC204		20	47	16	34	17	43.5	13.5	4.4	33.3	A204-12	12800	6650	0.22
CHC205-15	15/16		52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205-15	14000	7880	0.27
CHC205		25	52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205	14000	7880	0.25
CHC205-16	1		52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205-16	14000	7880	0.24
CHC206		30	62	19	36.4	18.2	48.3	15.9	5	44.5	A206	19500	11200	0.41
CHC206-19	1-3/16		62	19	36.4	18.2	48.3	15.9	5	44.5	A206-19	19500	11200	0.40
CHC206-20	1-1/4		62	19	36.4	18.2	48.3	15.9	5	44.5	A206-20	19500	11200	0.38
CHC207-21	1-5/16		72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-21	25700	15200	0.65
CHC207-22	1-3/8		72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-22	25700	15200	0.61
CHC207		35	72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207	25700	15200	0.60
CHC207-23	1-7/16		72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-23	25700	15200	0.58
CHC208-25	1-9/16		80	21	42.8	21.4	56.3	18.3	6.3	60.3	A208-25	29600	18200	0.79
CHC208		40	80	21	42.8	21.4	56.3	18.3	6.3	60.3	A208	29600	18200	0.78
CHC209-27	1-11/16		85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209-27	31850	20800	0.91
CHC209-28	1-3/4		85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209-28	31850	20800	0.87
CHC209		45	85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209	31850	20800	0.85
CHC210-31	1-15/16		90	23	49.2	24.6	62.7	18.3	6.5	69.9	A210-31	35100	23200	1.04
CHC210		50	90	23	49.2	24.6	62.7	18.3	6.5	69.9	A210	35100	23200	1.01
CHC211-34	2-1/8		100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211-34	43550	29200	1.44
CHC211		55	100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211	43550	29200	1.39
CHC211-35	2-3/16		100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211-35	43550	29200	1.36
CHC212		60	110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212	47800	32800	1.87
CHC212-38	2-3/8		110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212-38	47800	32800	1.85
CHC212-39	2-7/16		110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212-39	47800	32800	1.76
CHC213		65	120	28	68.2	34.1	85.7	23.5	8	86	A213	57200	40000	2.41
CHC214		70	125	30	68.2	34.1	85.7	23.5	9	96.8	A214	60800	45000	2.57
CHC215-48	3		130	30	74.6	37.3	92.1	23.9	9	102	A215-48	66000	49500	2.74
CHC201-8S	1/2		40	14	27.8	13.9	37.3	13.5	3.5	28.6	A201-8S	9550	4780	0.23
CHC201-8	1/2		47	16	34	17	43.5	13.5	4.4	33.3	A201-8	12800	6650	0.27
CHC202		15	47	16	34	17	43.5	13.5	4.4	33.3	A202	12800	6650	0.26
CHC202-10	5/8		47	16	34	17	43.5	13.5	4.4	33.3	A202-10	12800	6650	0.25
