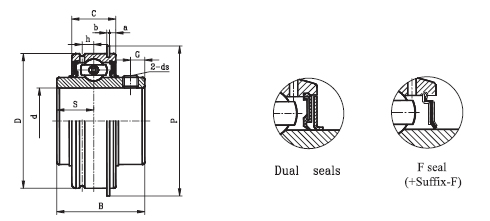

轴承代码	轴径		外形尺寸(mm)/(in.)										基本额定载荷 (N)		重量(kg)
	d		D	B	C	S	a	b	p	G	h	ds	Dynamic Cr	Static Cor
	(in.)	(mm)
ER201		12	47	31	15.9	12.7	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
ER201-8	1/2		47	31	15.9	12.7	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
ER202		15	47	31	15.9	12.7	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
ER202-10	5/8		47	31	15.9	12.7	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
ER203		17	47	31	15.9	12.7	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
ER203-11	11/16		47	31	15.9	12.7	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
ER204-12	3/4		47	31	15.9	12.7	2.38	1.07	52.7	4.7	4.4	1/4-28UNF	12800	6650	0.24
ER204		20	47	31	15.9	12.7	2.38	1.07	52.7	4.7	4.4	M6X1	12800	6650	0.24
ER205-14	7/8		52	34	19	14.3	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
ER205-15	15/16		52	34	19	14.3	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
ER205		25	52	34	19	14.3	2.38	1.07	57.9	5.5	4.5	M6X1	14000	7880	0.27
ER205-16	1		52	34.9	19	14.3	2.38	1.07	57.9	5.5	4.5	1/4-28UNF	14000	7880	0.27
ER206-18	1-1/8		62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
ER206		30	62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	M6X1	19500	11200	0.39
ER206-19	1-3/16		62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
ER206-20	1-1/4		62	38.1	22.2	15.9	3.18	1.65	67.7	5.5	5.3	1/4-28UNF	19500	11200	0.39
ER207-20	1-1/4		72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
ER207-21	1-5/16		72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
ER207-22	1-3/8		72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
ER207		35	72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	M8X1	25700	15200	0.61
ER207-23	1-7/16		72	42.9	23.8	17.5	3.18	1.65	78.6	6.5	5.8	5/16-24UNF	25700	15200	0.61
ER208-24	1-1/2		80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	5/16-24UNF	29600	18200	0.81
ER208-25	1-9/16		80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	5/16-24UNF	29600	18200	0.81
ER208		40	80	49.2	27.8	19	3.18	1.65	86.6	8	6.3	M8X1	29600	18200	0.81
ER209-26	1-5/8		85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.90
ER209-27	1-11/16		85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.90
ER209-28	1-3/4		85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	5/16-24UNF	31850	20800	0.90
ER209		45	85	49.2	27.8	19	3.18	1.65	91.6	8	7.5	M8X1	31850	20800	0.90
ER210-30	1-7/8		90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	3/8-24UNF	35100	23200	0.96
ER210-31	1-15/16		90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	3/8-24UNF	35100	23200	0.96
ER210		50	90	51.6	28.6	19	3.18	2.41	96.5	9	6.8	M10X1.25	35100	23200	0.96
ER211-32	2		100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
ER211-34	2-1/8		100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
ER211		55	100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	M10X1.25	43550	29200	1.41
ER211-35	2-3/16		100	55.6	30.2	22.2	3.18	2.41	106.5	9	7.6	3/8-24UNF	43550	29200	1.41
ER212-36	2-1/4		110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
ER212		60	110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	M10X1.25	47800	32800	1.95
ER212-38	2-3/8		110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
ER212-39	2-7/16		110	65.1	31.8	25.4	3.18	2.41	116.6	10.5	8.4	3/8-24UNF	47800	32800	1.95
ER214-40	2-1/2		125	74.6	35	30.2	3.96	2.77	134.7	12	9	7/16-20UNF	60800	45000	2.52
ER214-43	2-11/16		125	74.6	35	30.2	3.96	2.77	134.7	12	9	7/16-20UNF	60800	45000	2.52
ER214		70	125	74.6	35	30.2	3.96	2.77	134.7	12	9	M12X1.25	60800	45000	2.52
ER215-46	2-7/8		130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	7/16-20UNF	66000	49500	2.89
ER215-47	2-15/16		130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	7/16-20UNF	66000	49500	2.89
ER215		75	130	77.8	38.1	33.3	3.96	2.77	139.7	12	9.5	M12X1.25	66000	49500	2.89
