| FF0801.5-3南京滚珠丝杆、FF0802-3南京滚珠丝杆、FF0802.5-3南京滚珠丝杆、FF0803-3南京滚珠丝杆、FF1001.5-3南京滚珠丝杆、FF1002-3南京滚珠丝杆、FF1002.5-3南京滚珠丝杆、FF1003-3南京滚珠丝杆、FF1201.5-3南京滚珠丝杆 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730、52217447、52251441 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 13801591302 |
| | | 联系邮件： | hrbn@vip.qq.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|

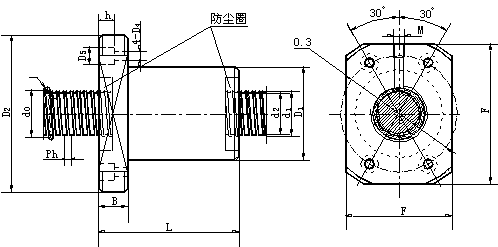

规格代号 |
公称
直径
do |
公称
导程
Pho |
丝杠
外径
d1 |
钢球
直径
Dw |
丝杠
底径
d2 |
循环
圈数 |
基本额定负荷 |
刚度
Kc
N/μm |
螺母安装连接尺寸 |
动载荷
Ca(KN) |
静载荷
Coa(KN) |
|
D1 |
D2 |
L |
D3 |
B |
h |
D4 |
D5 |
F |
H |
M |
|
FF0801.5-3 |
8 |
1.5 |
8 |
1.2 |
7.1 |
3 |
1.4 |
2.3 |
|
16 |
32 |
25 |
23 |
6 |
3.5 |
3.4 |
6.5 |
20 |
29 |
2.5 |
|
FF0802-3 |
8 |
2 |
8 |
1.588 |
6.7 |
3 |
1.8 |
2.7 |
|
16 |
32 |
27 |
23 |
6 |
3.5 |
3.4 |
6.5 |
20 |
29 |
2.5 |
|
FF0802.5-3 |
8 |
2.5 |
8 |
2 |
6.5 |
3 |
2.3 |
3.1 |
|
16 |
32 |
30 |
23 |
6 |
3.5 |
3.4 |
6.5 |
20 |
29 |
2.5 |
|
FF0803-3 |
8 |
3 |
8 |
2 |
6.5 |
3 |
2.3 |
3.1 |
|
16 |
32 |
27 |
23 |
6 |
3.5 |
3.4 |
6.5 |
20 |
29 |
2.5 |
|
FF1001.5-3 |
10 |
1.5 |
9.8 |
1.2 |
8.9 |
3 |
1.6 |
3.1 |
|
18 |
38 |
27 |
27 |
8 |
4.5 |
4.5 |
8 |
24 |
34 |
2.5 |
|
FF1002-3 |
10 |
2 |
9.8 |
1.588 |
8.5 |
3 |
2.2 |
3.8 |
|
18 |
38 |
29 |
27 |
8 |
4.5 |
4.5 |
8 |
24 |
34 |
2.5 |
|
FF1002.5-3 |
10 |
2.5 |
9.5 |
2 |
7.9 |
3 |
2.8 |
4.4 |
|
18 |
38 |
32 |
27 |
8 |
4.5 |
4.5 |
8 |
24 |
34 |
2.5 |
|
FF1003-3 |
10 |
3 |
9.5 |
2 |
7.9 |
3 |
2.8 |
4.3 |
|
18 |
38 |
27 |
27 |
8 |
4.5 |
4.5 |
8 |
24 |
34 |
2.5 |
|
FF1201.5-3 |
12 |
1.5 |
11.8 |
1.2 |
10.9 |
3 |
1.7 |
3.9 |
|
20 |
40 |
27 |
29 |
8 |
4.5 |
4.5 |
8 |
25 |
36 |
2.5 |
|
FF1202-3 |
12 |
2 |
11.9 |
1.588 |
10.7 |
3 |
2.5 |
4.9 |
|
20 |
40 |
29 |
29 |
8 |
4.5 |
4.5 |
8 |
25 |
36 |
2.5 |
|
FF1202.5-3 |
12 |
2.5 |
11.7 |
2 |
10.2 |
3 |
3.2 |
5.6 |
|
20 |
40 |
33 |
29 |
8 |
4.5 |
4.5 |
8 |
25 |
36 |
2.5 |
|
FF1203-3 |
12 |
3 |
11.3 |
2.381 |
9.5 |
3 |
3.8 |
6.2 |
|
20 |
43 |
36 |
32 |
8 |
4.5 |
4.5 |
8 |
27 |
38 |
2.5 |
|
FF1602-4 |
16 |
2 |
15.9 |
1.588 |
14.7 |
4 |
2.9 |
7.0 |
|
25 |
47 |
35 |
35 |
10 |
5.5 |
5.5 |
9.5 |
30 |
43 |
6 |
|
FF1602.5-4 |
16 |
2.5 |
15.7 |
2 |
14.2 |
4 |
3.8 |
8.1 |
|
25 |
47 |
33 |
35 |
10 |
5.5 |
5.5 |
9.5 |
30 |
43 |
6 |
|
FF1603-4 |
16 |
3 |
15.3 |
2.381 |
13.5 |
4 |
4.7 |
9.2 |
|
25 |
47 |
38 |
35 |
10 |
5.5 |
5.5 |
9.5 |
30 |
43 |
6 |
|
FF2002-4 |
20 |
2 |
19.9 |
1.588 |
18.7 |
4 |
3.2 |
9.2 |
|
30 |
52 |
35 |
40 |
10 |
5.5 |
5.5 |
9.5 |
32 |
47 |
6 |
|
FF2002.5-4 |
20 |
2.5 |
19.7 |
2 |
18.2 |
4 |
4.3 |
10.7 |
|
30 |
52 |
33 |
40 |
10 |
5.5 |
5.5 |
9.5 |
32 |
47 |
6 |
|
FF2003-4 |
20 |
3 |
19.3 |
2.381 |
17.5 |
4 |
5.3 |
12.2 |
|
30 |
52 |
38 |
40 |
10 |
5.5 |
5.5 |
9.5 |
32 |
47 |
6 | |
|
|
|
|
|
|
|
