FFZL2004-3南京滚珠丝杆、FFZL2005-3南京滚珠丝杆、FFZL2505-3南京滚珠丝杆、FFZL2506-3南京滚珠丝杆、FFZL3205-3南京滚珠丝杆、FFZL3206-3南京滚珠丝杆、FFZL4006-3南京滚珠丝杆、FFZL4008-3南京滚珠丝杆、FFZL4010-3南京滚珠丝杆、FFZL4012-3南京滚珠丝杆 |
|
| 生产厂家: | 南京哈宁轴承制造有限公司 |
| | | 公司地址: | 江苏省南京市莫愁路195号 |
| | | 联系电话: | 025-86629730、52217447、52251441 |
| | | 公司传真: | 025-52300551 |
| | | 联 系 人: | 刘长岭 13801591302 |
| | | 联系邮件: | hrbn@vip.qq.com |
| | | 产品价格: | ¥.00 |
| | | 网上报价: | ¥.00 |
| |
|
规格 代号 |
公称 直径 |
公称 导程 |
丝杠 外径 |
钢球 直径 |
丝杠 底径 |
循环 圈数 |
基本 额定负荷 |
刚度 Kc N/μm |

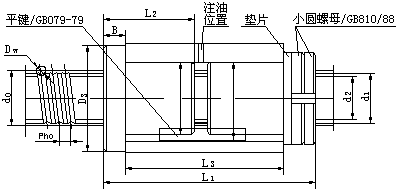

螺母安装连接尺寸 |
小圆螺母 GB810-88 |
平键 GB1096-79 |
动载荷 Ca(KN) |
静载荷 Coa(KN) |
D1(h6) |
D3 |
L1 |
L2 |
L3 |
B |
T |
FFZL2004-3 |
20 |
4 |
19.3 19.1 |
2.381 3 |
17.5 16.9 |
3 |
5.3 7.3 |
12.1 15.4 |
519 |
30 |
45 |
70 |
28 |
44 |
6 |
32 |
M30×1.5 |
4×4×30 |
FFZL2005-3 |
20 |
5 |
19.5 |
3.5 |
16.9 |
3 |
9.1 |
18.3 |
536 |
34 |
48 |
81 |
34 |
55 |
6 |
36.5 |
M33×1.5 |
5×5×40 |
FFZL2505-3 |
25 |
5 |
24.5 |
3.5 |
21.9 |
3 |
10.2 |
23.6 |
657 |
42 |
58 |
84 |
34.5 |
55 |
8 |
44.5 |
M42×1.5 |
5×5×40 |
FFZL2506-3 |
25 |
6 |
24 |
3.969 |
20.9 |
3 |
11.3 |
23.7 |
636 |
45 |
62 |
95 |
41 |
66 |
8 |
48 |
M45×1.5 |
6×6×45 |
FFZL3205-3 |
32 |
5 |
31.5 |
3.5 |
28.9 |
3 |
11.7 |
31.4 |
826 |
50 |
68 |
88 |
37 |
55 |
8 |
52.5 |
M48×1.5 |
5×5×40 |
FFZL3206-3 |
32 |
6 |
30.9 |
3.969 |
27.9 |
3 |
13 |
32.1 |
839 |
50 |
68 |
99 |
41 |
66 |
8 |
53 |
M48×1.5 |
6×6×45 |
FFZL4006-3 |
40 |
6 |
38.9 |
3.969 |
35.9 |
3 |
15.1 |
43.8 |
1017 |
60 |
80 |
101 |
42 |
66 |
10 |
63 |
M60×2 |
6×6×45 |
FFZL4008-3 |
40 |
8 |
38.6 |
5 |
34.9 |
3 |
19.8 |
51 |
1004 |
60 |
80 |
119 |
52 |
84 |
10 |
64 |
M60×2 |
8×7×55 |
FFZL4010-3 |
40 |
10 |
39.5 |
7.144 |
34.4 |
3 |
30 |
66.3 |
973 |
65 |
85 |
140 |
62 |
102 |
13 |
68 |
M64×2 |
6×6×60 |
FFZL4012-3 |
40 |
12 |
38 |
7.144 |
32.7 |
3 |
24.9 |
70.7 |
909 |
65 |
85 |
161 |
75 |
121 |
15 |
68 |
M64×2 |
6×6×60 |
FFZL5006-4 |
50 |
6 |
48.9 |
3.969 |
45.9 |
4 |
21.7 |
76.3 |
1558 |
72 |
95 |
117 |
50 |
78 |
10 |
75.5 |
M72×2 |
8×7×55 |
FFZL5008-4 |
50 |
8 |
48.6 |
5 |
44.9 |
4 |
28.7 |
89.3 |
1756 |
75 |
95 |
144 |
64 |
102 |
12 |
79 |
M72×2 |
12×8×80 |
FFZL5010-4 |
50 |
10 |
49.5 |
7.144 |
44.3 |
4 |
46 |
124.2 |
1874 |
75 |
95 |
167 |
76 |
124 |
13 |
79 |
M72×2 |
12×8×100 |
FFZL5012-4 |
50 |
12 |
48 |
7.144 |
42.7 |
4 |
44.7 |
117 |
1137 |
75 |
95 |
191 |
89 |
146 |
15 |
79 |
M72×2 |
12×8×120 |
FFZL6008-4 |
60 |
8 |
58.6 |
5 |
54.9 |
4 |
33 |
121.1 |
2018 |
85 |
110 |
144 |
64 |
102 |
12 |
89 |
M85×2 |
12×8×80 |
FFZL6310-4 |
63 |
10 |
62.5 |
7.144 |
57.3 |
4 |
51.5 |
160.6 |
2023 |
90 |
115 |
168 |
77 |
124 |
14 |
95 |
M90×2 |
16×10×100 |
FFZL6312-4 |
63 |
12 |
61 |
7.144 |
55.7 |
4 |
50.3 |
153.3 |
2049 |
90 |
115 |
195 |
90 |
150 |
15 |
95 |
M90×2 |
16×10×100 |
FFZL8010-4 |
80 |
10 |
79.5 |
7.144 |
74.3 |
4 |
58.1 |
311.4 |
2479 |
110 |
135 |
180 |
79 |
127 |
15 |
116 |
M110×2 |
20×12×100 |
FFZL8012-4 |
80 |
12 |
78 |
7.144 |
72.7 |
4 |
58.3 |
211 |
2566 |
110 |
135 |
204 |
91 |
150 |
16 |
116 |
M110×2 |
20×12×100 | |
|
|
|
|
|
|
|
