TC411轴承、TC512轴承、TC613轴承、TC815轴承、TCl018轴承、TCl220轴承、TCl423轴承、TCl427轴承、TCl525轴承、TCl828轴承、TCl931轴承 |
|
| 生产厂家: | 南京哈宁轴承制造有限公司 |
| | | 公司地址: | 江苏省南京市莫愁路195号 |
| | | 联系电话: | 025-86629730、52217447、52251441 |
| | | 公司传真: | 025-52300551 |
| | | 联 系 人: | 刘长岭 13801591302 |
| | | 联系邮件: | hrbn@vip.qq.com |
| | | 产品价格: | ¥.00 |
| | | 网上报价: | ¥.00 |
| |
|

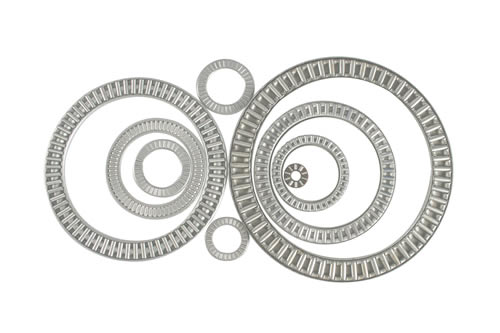

推力平面滚针轴承英制型号垫圈、轴圈、座圈 -> TC TRA TRB TRC TRD系列
轴径 Shaft Diameter |
轴承型号 Bearing
Designation |
外形尺寸 BoundaryDimensions |
基本额定负荷 BasicLoadRating |
极限转速 Limiting Speed |
垫圈 TRA TRB TRC TRD |
dw /d |
Dg/D |
Dw |
动 Dynamic |
静 Static |
油润滑 Oil |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
N |
rpm |
|
|
|
|
|
|
|
|
|
|
|
|
1/4 |
TC411 |
0.250 |
6.35 |
0.687 |
17.45 |
0.0781 |
1.984 |
1370 |
3000 |
16000 |
411 |
5/16 |
TC512 |
0.312 |
7.49 |
0.750 |
19.05 |
0.0781 |
1.984 |
1560 |
3650 |
15000 |
512 |
3/8 |
TC613 |
0.375 |
9.52 |
0.812 |
20.62 |
0.0781 |
1.984 |
1620 |
4000 |
15000 |
613 |
1/2 |
TC815 |
0.500 |
12.70 |
0.937 |
23.80 |
0.0781 |
1.984 |
1920 |
5300 |
13000 |
815 |
5/8 |
TCl018 |
0.625 |
15.88 |
1.125 |
28.58 |
0.0781 |
1.984 |
2170 |
6600 |
11000 |
1018 |
3/4 |
TCl220 |
0.750 |
19.05 |
1.250 |
31.75 |
0.0781 |
1.984 |
2410 |
8000 |
9500 |
1220 |
7/8 |
TCl423 |
0.875 |
22.22 |
1.437 |
36.50 |
0.0781 |
1.984 |
2900 |
10500 |
8500 |
1423 |
TCl427 |
0.875 |
22.22 |
1.687 |
42.85 |
0.0781 |
1.984 |
4400 |
18600 |
7500 |
1427 |
1 |
TCl525 |
1.000 |
25.40 |
1.562 |
39.67 |
0.0781 |
1.984 |
3150 |
12100 |
7500 |
1525 |
11/8 |
TCl828 |
1.125 |
28.58 |
1.750 |
44.45 |
0.0781 |
1.984 |
3850 |
16300 |
6500 |
1828 |
13/16 |
TCl931 |
1.188 |
30.16 |
1.937 |
49.20 |
0.0781 |
1.984 |
4500 |
20500 |
6000 |
1931 |
11/4 |
TC2013 |
1.250 |
31.75 |
1.937 |
49.20 |
0.0781 |
1.984 |
4500 |
20500 |
6000 |
2013 |
13/8 |
TC2233 |
1.375 |
34.92 |
2.062 |
52.37 |
0.0781 |
1.984 |
4600 |
21600 |
5500 |
2233 |
11/2 |
TC2435 |
1.500 |
38.10 |
2.187 |
55.55 |
0.0781 |
1.984 |
4850 |
23700 |
5000 |
2435 |
13/4 |
TC2840 |
1.750 |
44.45 |
2.500 |
63.50 |
0.0781 |
1.984 |
5600 |
30000 |
4500 |
2840 |
2 |
TC3244 |
2.000 |
50.80 |
2.750 |
69.85 |
0.0781 |
1.984 |
5800 |
32500 |
4000 |
3244 |
21/4 |
TC3648 |
2.250 |
57.15 |
3.000 |
76.20 |
0.0781 |
1.984 |
6000 |
35000 |
3600 |
3648 |
21/2 |
TC4052 |
2.500 |
63.50 |
3.250 |
82.55 |
0.0781 |
1.984 |
6200 |
37500 |
3300 |
4052 |
3 |
TC4860 |
3.000 |
76.20 |
3.750 |
95.25 |
0.0781 |
1.984 |
6600 |
42500 |
2800 |
4860 |
31/4 |
TC5266 |
3.250 |
82.55 |
4.125 |
104.78 |
0.1250 |
3.175 |
10900 |
61000 |
2600 |
5266 |
41/8 |
TC6681 |
4.125 |
104.78 |
6.062 |
128.57 |
0.1250 |
3.175 |
14200 |
92000 |
2100 |
6681 | |
|
|
|
|
|
|
|
