Housing No.		Shaft Dia	Dimensions(mm)																Housing Wt (kg)		Bearing No.	Adapter Sleeve	Locating Ring

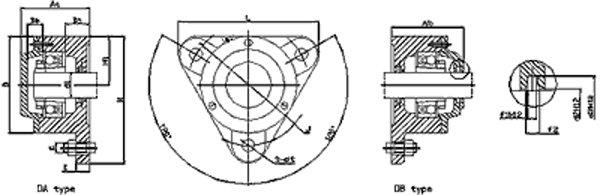

DA	DB	d1 (mm)	Aa	Ab	g	Ba	Bb	D	H	H1	J	L	S	f1 H12	f2	d2 H12	d3 H12	G	DA	DB			Number	QTY
722505DA	722505DB	20	51.5	56.5	10	15	12.5	75	100	38	96	110	11.5	3	4.2	21.5	31	M10	1.48	1.55	1205EK 2205EK 22205EK	H205 H305 H305	FRB5/52 ZW42x52 ZW42x52	1 1 1
722506DA	722506DB	25	57	59.5	12	16	15	86	117	44	116	130	11.5	4	5.4	26.5	38	M10	2	2.1	1206EK 2206EK 22206EK	H206 H306 H306	FRB6/62 ZW50x62 ZW50x62	1 1 1
722507DA	722507DB	30	59.5	63.5	12	16	14.5	97	130	48.5	130	145	14	4	5.4	31.5	43	M12	2.9	3	1207EK 2207EK 22207EK	H207 H307 H307	FRB8/72 ZW65x72 ZW65x72	1 1 1
722508DA	722508DB	35	64	65.5	12	17	18	108	143	54	140	160	14	4	5.4	36.5	48	M12	3.43	3.48	1208EK 2208EK 22208EK	H208 H308 H308	FRB7/80 ZW70x80 ZW70x80	1 1 1
722509DA	722509DB	40	64.5	69.5	12	19	16.5	113	160	60	160	180	14	4	5.4	41.5	53	M12	4.3	4.45	1209EK 2209EK 22209EK	H209 H309 H309	FRB6/85 ZW75x85 ZW75x85	1 1 1
722510DA	722510DB	45	68.5	73	15	22	17.5	118	160	60	160	180	14	4	5.4	46.5	58	M12	4.2	4.3	1210EK 2210EK 22210EK	H210 H310 H310	FRB5/90 ZW80x90 ZW80x90	1 1 1
722511DA	722511DB	50	75.5	81.5	15	24	19.5	128	172	65	170	192	14	5	6.8	51.5	67	M12	5.25	5.45	1211EK 2211EK 22211EK	H211 H311 H311	FRB6/100 ZW85x100 ZW85x100	1 1 1
722512DA	722512DB	55	77	82	15	23	19	142	189	72	180	210	14	5	6.8	56.5	72	M12	6.8	7.15	1212EK 2212EK 22212EK	H212 H312 H312	FRB8/110 ZW90x110 ZW90x110	1 1 1
722513DA	722513DB	60	80	86	15	22	20	152	203	78	190	225	14	5	6.8	62	77	M12	7.65	7.8	1213EK 2213EK 22213EK	H213 H313 H313	FRB10/120 FRB2/120 FRB2/120	1 1 1
