| 剖分式轴承座SN3122、SN3124、SN3126、SN3128、SN3130、SN3132、SSN3122、SSN3124、SSN3126、SSN3128、SSN3130、SSN3132 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
Housing No. |
Shaft
dia
d1 |

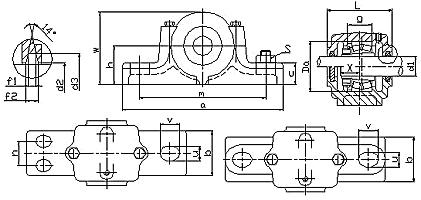

Dimensions(mm) |
Housing
Wt
(kg) |
Bearing
No. |
Adapter
Sleeve |
Locating Ring |
Housing
No. |
|
D
H8 |
a |
b |
c |
g
H12 |
h
h12 |
L |
W |
m |
n |
u |
v |
f1
H13 |
f2 |
S |
d2
H12 |
d3
H12 |
|
(2) |
(4) |
Number |
Q
T
Y |
|
SN3122 |
SSN3122 |
100 |
180 |
380 |
110 |
40 |
66 |
112 |
160 |
218 |
320 |
60 |
26 |
32 |
8 |
10.8 |
M24 |
M16 |
102 |
125 |
17 |
23122K |
H3122 |
SR180x10 |
1 |
SSN3122 |
|
SN3124 |
SSN3124 |
110 |
200 |
410 |
120 |
45 |
72 |
125 |
175 |
240 |
350 |
70 |
26 |
32 |
8 |
10.7 |
M24 |
M16 |
113 |
135 |
20 |
23124K |
H3124 |
SR200x10 |
1 |
SSN3124 |
|
SN3126 |
SSN3126 |
115 |
210 |
410 |
120 |
45 |
74 |
140 |
185 |
270 |
350 |
70 |
26 |
32 |
8 |
10.7 |
M24 |
M16 |
118 |
140 |
25 |
23126K |
H3126 |
SR210x10 |
1 |
SSN3126 |
|
SN3128 |
SSN3128 |
125 |
225 |
445 |
130 |
50 |
78 |
150 |
175 |
285 |
380 |
70 |
28 |
36 |
9 |
12.2 |
M24 |
M20 |
128 |
154 |
30 |
23128K |
H3128 |
SR225x10 |
1 |
SSN3128 |
|
SN3130 |
SSN3130 |
135 |
250 |
500 |
150 |
50 |
90 |
150 |
205 |
305 |
420 |
80 |
33 |
42 |
9 |
12.2 |
M30 |
M24 |
138 |
164 |
38 |
23130K |
H3130 |
SR250x10 |
1 |
SSN3130 |
|
SN3132 |
SSN3132 |
140 |
270 |
530 |
160 |
60 |
96 |
160 |
220 |
325 |
450 |
90 |
33 |
42 |
10 |
13.7 |
M30 |
M24 |
143 |
173 |
46 |
23132K |
H3132 |
SR270x10 |
1 |
SSN3132 | |
|
|
|
|
|
|
|
