| AGW15SB滑块|HIWIN滑块轴承、AGW15CB滑块|HIWIN滑块轴承、AGW20SB滑块|HIWIN滑块轴承、AGW20CB滑块|HIWIN滑块轴承 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730、52217447、52251441 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 13801591302 |
| | | 联系邮件： | hrbn@vip.qq.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
 |
|

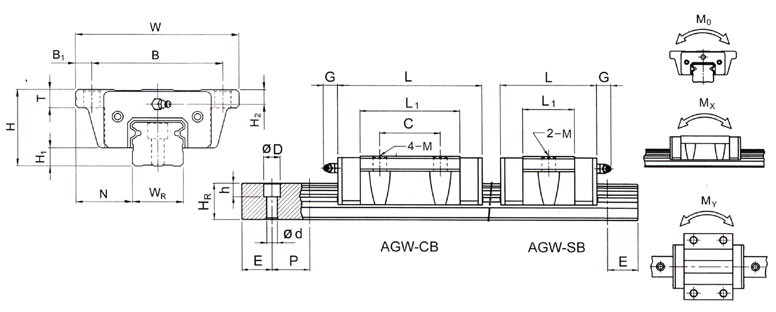

型号
|
组件尺寸
(mm) |
滑块尺寸
(mm) |
滑轨尺寸
(mm) |
|
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
G |
M |
T |
H2 |
WR |
HR |
D |
h |
d |
P |
E |
|
AGW 15SB |
24 |
5 |
18.5 |
52 |
41 |
5.5 |
- |
22.8 |
41 |
5.7 |
Ø4.5 |
7 |
5.5 |
15 |
13.5 |
6 |
4.5 |
3.5 |
60 |
20 |
|
AGW 15CB |
26 |
38.7 |
56.9 |
|
AGW 20SB |
28 |
6 |
19.5 |
59 |
49 |
5 |
- |
26.2 |
48 |
12 |
Ø5.5 |
9 |
6 |
20 |
15.5 |
9.5 |
8.5 |
6 |
60 |
20 |
|
AGW 20CB |
32 |
44.1 |
65.9 |
|
AGW 25SB |
33 |
7 |
25 |
73 |
60 |
6.5 |
- |
34.5 |
58.7 |
12 |
Ø7 |
10 |
7 |
23 |
18.5 |
11 |
9 |
7 |
60 |
20 |
|
AGW 25CB |
35 |
58.3 |
82.5 |
|
AGW 30SB |
42 |
10 |
31 |
90 |
72 |
9 |
- |
36.6 |
66.4 |
12 |
Ø9 |
9 |
8 |
28 |
24 |
11 |
9 |
7 |
80 |
20 |
|
AGW 30CB |
40 |
65.2 |
95 | |
| |
|
型号 |
滑轨的
固定螺栓尺寸
(mm) |
基本动
额定负荷
C(kgf) |
基本静
额定负荷
C0(kgf) |
容许静力矩 |
重量 |
|
MR
(kgf-m) |
MP
(kgf-m) |
MY
(kgf-m)) |
滑块
(kg) |
滑轨
(kg/m) |
|
AGW 15SB |
M3×16 |
440 |
590 |
4.8 |
2.3 |
2.3 |
0.15 |
1.43 |
|
AGW 15CB |
640 |
1010 |
8.3 |
6.3 |
6.3 |
0.23 |
|
AGW 20SB |
M5×16 |
650 |
920 |
10.1 |
4.5 |
4.5 |
0.24 |
2.16 |
|
AGW 20CB |
970 |
1450 |
15.9 |
10.4 |
10.4 |
0.36 |
|
AGW 25SB |
M6×20 |
1080 |
1330 |
16.7 |
7.8 |
7.8 |
0.44 |
2.95 |
|
AGW 25CB |
1550 |
2290 |
28.7 |
21.1 |
21.1 |
0.68 |
|
AGW 30SB |
M6×25 |
1550 |
2030 |
30.8 |
14.0 |
14.0 |
0.72 |
4.76 |
|
AGW 30CB |
2470 |
3390 |
51.3 |
35.5 |
35.5 |
1.16 | | |
|
|
|
|
|
|
|
