| 剖分式轴承座SN605、SN606、SN607、SN608、SN609、SN610、SN611、SN612、SN613、SN614、SN615、SN616、SN617、SN618、SN619、SN620、SN622、SN624、SN626、SN628、SN630、SN632 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|

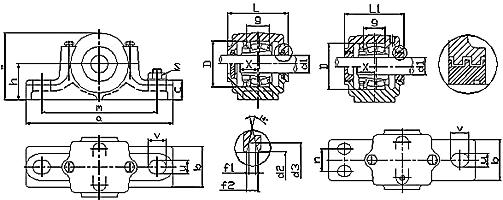

Housing
No. |
Shaft Dia
d1 |
Dimensions(mm) |
Housing
Wt
(kg) |
Bearing No. |
Adapter Sleeve |
Locating Ring |
|
mm |
in |
D
H8 |
a |
b |
c |
g
H12 |
h
h12 |
L |
L1 |
W |
m |
n |
u |
v |
s |
d2
H12 |
d3
H12 |
f1
H12 |
f2 |
Number |
QTY |
|
SN605 |
20 |
3/4 |
62 |
185 |
52 |
22 |
34 |
50 |
80 |
83 |
90 |
150 |
25 |
15 |
20 |
M12 |
21.5 |
31 |
3 |
4.2 |
2.1 |
1305K
2305K |
|
H305
H2305 |
HE305
HE2305 |
SR62x8.5
SR62x10 |
2
1 |
|
SN606 |
25 |
1 |
72 |
185 |
52 |
22 |
37 |
50 |
82 |
85 |
95 |
150 |
25 |
15 |
20 |
M12 |
26.5 |
38 |
4 |
5.4 |
3.1 |
1306K
2306K |
|
H306
H2306 |
HE306
HE2306 |
SR72x9
SR72x10 |
2
1 |
|
SN607 |
30 |
1-1/8 |
80 |
205 |
60 |
25 |
41 |
60 |
90 |
93 |
110 |
170 |
30 |
15 |
20 |
M12 |
31.5 |
43 |
4 |
5.4 |
3.73 |
1307K
2307K |
|
H307
H2307 |
HE307
HE2307 |
SR80x10
SR80x10 |
2
1 |
|
SN608 |
35 |
1-1/4 |
90 |
205 |
60 |
25 |
43 |
60 |
95 |
100 |
115 |
170 |
30 |
15 |
20 |
M12 |
36.5 |
48 |
4 |
5.4 |
4.6 |
1308K
2308K |
21308K
22308K |
H308
H2308 |
HE308
HE2308 |
SR90x10
SR90x10 |
2
1 |
|
SN609
SSN609 |
40 |
1-1/2 |
100 |
255 |
70 |
28 |
46 |
70 |
105 |
110 |
130 |
210 |
35 |
18 |
23 |
M16 |
41.5 |
53 |
4 |
5.4 |
5.7
8.0 |
1309K
2309K |
21309K
22309K |
H309
H2309 |
HE309
HE2309 |
SR100x10.5
SR100x10 |
2
1 |
|
SN610
SSN610 |
45 |
1-3/4 |
110 |
255 |
70 |
30 |
50 |
70 |
115 |
120 |
135 |
210 |
35 |
18 |
23 |
M16 |
46.5 |
58 |
4 |
5.4 |
6.5
9.0 |
1310K
2310K |
21310K
22310K |
H310
H2310 |
HE310
HE2310 |
SR110x11.5
SR110x10 |
2
1 |
|
SN611
SSN611 |
50 |
2 |
120 |
275 |
80 |
30 |
53 |
80 |
120 |
125 |
150 |
230 |
40 |
18 |
23 |
M16 |
51.5 |
67 |
5 |
6.9 |
6.8
9.5 |
1311K
2311K |
21311K
22311K |
H311
H2311 |
HE311
HE2311 |
SR120x12
SR120x10 |
2
1 |
|
SN612
SSN612 |
55 |
2-1/8 |
130 |
280 |
80 |
30 |
56 |
80 |
125 |
130 |
155 |
230 |
40 |
18 |
23 |
M16 |
56.5 |
72 |
5 |
6.9 |
8.6
11 |
1312K
2312K |
21312K
22312K |
H312
H2312 |
HE312
HE2312 |
SR130x12.5
SR130x10 |
2
1 |
|
SN613
SSN613 |
60 |
2-1/4 |
140 |
315 |
90 |
32 |
58 |
95 |
130 |
135 |
175 |
260 |
50 |
22 |
27 |
M20 |
62 |
77 |
5 |
6.8 |
11.1
14 |
1313K
2313K |
21313K
22313K |
H313
H2313 |
HE313
HE2313 |
SR140x12.5
SR140x10 |
2
1 |
|
SN615
SSN615 |
65 |
2-1/2 |
160 |
345 |
100 |
35 |
65 |
100 |
140 |
145 |
195 |
290 |
50 |
22 |
27 |
M20 |
67 |
82 |
5 |
6.8 |
15.2
19.1 |
1315K
2315K |
21315K
22315K |
H315
H2315 |
HE315
HE2315 |
SR160x14
SR160x10 |
2
1 |
|
SN616
SSN616 |
70 |
2-3/4 |
170 |
345 |
100 |
35 |
68 |
112 |
145 |
150 |
212 |
290 |
50 |
22 |
27 |
M20 |
72 |
89 |
6 |
8.1 |
17.8
21.2 |
1316K
2316K |
21316K
22316K |
H316
H2316 |
HE316
HE2316 |
SR170x14.5
SR170x10 |
2
1 |
|
SN617
SSN617 |
75 |
3 |
180 |
380 |
110 |
40 |
70 |
112 |
155 |
160 |
218 |
320 |
60 |
26 |
32 |
M24 |
77 |
94 |
6 |
8.1 |
19.5
25 |
1317K
2317K |
21317K
22317K |
H317
H2317 |
HE317
HE2317 |
SR180x14.5
SR180x10 |
2
1 |
|
SN618
SSN618 |
80 |
3-1/4 |
190 |
400 |
110 |
33 |
74 |
112 |
160 |
165 |
230 |
320 |
60 |
26 |
35 |
M24 |
82 |
99 |
6 |
8.1 |
25.3
29.3 |
1318K
2318K |
22318K |
H318
H2318 |
HE318
HE2318 |
SR190x15.5
SR190x10 |
2
1 |
|
SN619
SSN619 |
85 |
|
200 |
420 |
120 |
36 |
77 |
125 |
170 |
175 |
245 |
350 |
70 |
26 |
35 |
M24 |
87 |
104 |
6 |
8.1 |
27
32.3 |
1319K
2319K |
22319K |
H319
H2319 |
HE319
HE2319 |
SR200x16
SR200x10 |
2
1 |
|
SN620
SSN620 |
90 |
3-1/2 |
215 |
420 |
120 |
38 |
83 |
140 |
175 |
180 |
280 |
350 |
70 |
26 |
35 |
M24 |
92 |
111 |
7 |
9.3 |
32
36 |
1320K
2320K |
22320K |
H320
H2320 |
HE320
HE2320 |
SR215x18
SR215x10 |
2
1 |
|
SN622
SSN622 |
100 |
4 |
240 |
460 |
130 |
40 |
90 |
150 |
190 |
195 |
300 |
390 |
70 |
28 |
38 |
M24 |
102 |
125 |
8 |
10.8 |
43.4
51 |
1322K
2322K |
22322K |
H322
H2322 |
HE322
HE2322 |
SR240x20
SR240x10 |
2
1 |
|
SN624
SSN624 |
110 |
4-1/4 |
260 |
540 |
160 |
50 |
96 |
160 |
205 |
210 |
325 |
450 |
90 |
33 |
42 |
M30 |
113 |
135 |
8 |
10.7 |
54.6
64 |
|
22324K |
H2324 |
HE2324 |
SR260x10 |
2
1 |
|
SN626
SSN626 |
115 |
4-1/2 |
280 |
560 |
160 |
50 |
103 |
170 |
215 |
220 |
350 |
470 |
90 |
33 |
42 |
M30 |
118 |
140 |
8 |
10.7 |
67.2
78 |
|
22326K |
H2326 |
HE2326 |
SR280x10 |
2
1 |
|
SN628
SSN628 |
125 |
5 |
300 |
630 |
170 |
55 |
112 |
180 |
235 |
240 |
375 |
520 |
90 |
35 |
45 |
M30 |
128 |
154 |
9 |
12.2 |
92.6
105 |
|
22328K |
H2328 |
HE2328 |
SR300x10 |
2
1 |
|
SN630
SSN630 |
135 |
5-1/4 |
320 |
680 |
180 |
55 |
118 |
190 |
245 |
250 |
395 |
560 |
90 |
35 |
45 |
M30 |
138 |
164 |
9 |
12.2 |
101.5
113.0 |
|
22330K |
H2330 |
HE2330 |
SR320x10 |
2
1 |
|
SN632
SSN632 |
140 |
5-1/2 |
340 |
710 |
190 |
60 |
124 |
200 |
255 |
260 |
415 |
580 |
100 |
42 |
52 |
M36 |
143 |
173 |
10 |
13.7 |
122.3
135.6 |
|
22332K |
H2332 |
HE2332 |
SR340x10 |
2
1 | |
|
|
|
|
|
|
|
