| 剖分式轴承座SD3134、SD3136、SD3138、SD3140、SD3144、SD3148、SD3152、SD3156、SD3160、SD3164、SD3168、SD3172、SD3176、SD3180 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|

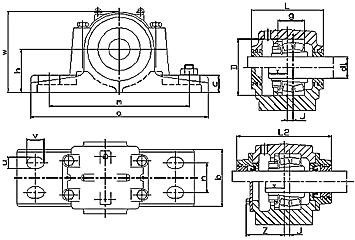

Housing
No. |
Shaft dia
d1(mm) |
Dimensions(mm) |
Housing
Wt (kg) |
Bearing
No. |
Adapter
Sleeve |
Locating Ring |
|
D
H8 |
a |
b |
c |
g
H12 |
h
h12 |
L |
L2 |
W |
m |
n |
J |
X |
Z |
S |
Number |
QTY |
|
SD3134 |
150 |
280 |
510 |
180 |
70 |
108 |
170 |
230 |
308 |
335 |
430 |
100 |
14 |
65 |
120 |
M24 |
70 |
23134K |
H3134 |
HE3134 |
SR280x10 |
2 |
|
SD3136 |
160 |
300 |
530 |
190 |
75 |
116 |
180 |
240 |
318 |
355 |
450 |
110 |
15 |
68 |
130 |
M24 |
79 |
23136K |
H3136 |
HE3136 |
SR300x10 |
2 |
|
SD3138 |
170 |
320 |
560 |
210 |
80 |
124 |
190 |
260 |
336 |
375 |
480 |
120 |
10 |
80 |
140 |
M24 |
100 |
23138K |
H3138 |
HE3138 |
SR320x10 |
2 |
|
SD3140 |
180 |
340 |
610 |
230 |
85 |
132 |
210 |
280 |
356 |
410 |
510 |
130 |
10 |
82 |
150 |
M30 |
130 |
23140K |
H3140 |
HE3140 |
SR340x10 |
2 |
|
SD3144 |
200 |
370 |
640 |
240 |
90 |
140 |
220 |
290 |
368 |
435 |
540 |
140 |
12 |
90 |
155 |
M30 |
146 |
23144K |
H3144 |
|
SR370x10 |
2 |
|
SD3148 |
220 |
400 |
700 |
260 |
95 |
148 |
240 |
310 |
388 |
475 |
600 |
150 |
12 |
100 |
160 |
M30 |
190 |
23148K |
H3148 |
|
SR400x10 |
2 |
|
SD3152 |
240 |
440 |
770 |
280 |
100 |
164 |
260 |
320 |
400 |
515 |
650 |
160 |
13 |
105 |
170 |
M36 |
230 |
23152K |
H3152 |
|
SR440x10 |
2 |
|
SD3156 |
260 |
460 |
790 |
280 |
105 |
166 |
280 |
320 |
400 |
550 |
670 |
160 |
16 |
105 |
170 |
M36 |
260 |
23156K |
H3156 |
|
SR460x10 |
2 |
|
SD3160 |
280 |
500 |
830 |
310 |
110 |
180 |
300 |
350 |
426 |
590 |
710 |
190 |
22 |
110 |
190 |
M36 |
320 |
23160K |
H3160 |
|
SR500x10 |
2 |
|
SD3164 |
300 |
540 |
880 |
330 |
115 |
196 |
320 |
370 |
448 |
630 |
750 |
200 |
23 |
120 |
200 |
M36 |
350 |
23164K |
H3164 |
|
SR540x10 |
2 |
|
SD3168 |
320 |
580 |
965 |
380 |
120 |
210 |
340 |
390 |
488 |
670 |
840 |
240 |
25 |
135 |
220 |
M45 |
550 |
23168K |
H3168 |
|
SR580x10 |
2 |
|
SD3172 |
340 |
600 |
1040 |
390 |
130 |
212 |
360 |
390 |
498 |
720 |
890 |
255 |
22 |
145 |
225 |
M50 |
560 |
23172K |
H3172 |
|
SR600x10 |
2 |
|
SD3176 |
360 |
620 |
1120 |
400 |
135 |
214 |
380 |
405 |
520 |
750 |
980 |
255 |
22 |
145 |
240 |
M55 |
780 |
23176K |
H3176 |
|
SR620x10 |
2 |
|
SD3180 |
380 |
650 |
1245 |
420 |
140 |
220 |
400 |
405 |
552 |
790 |
1050 |
270 |
22 |
150 |
260 |
M60 |
885 |
23180K |
H3180 |
|
SR650x10 |
2 | |
|
|
|
|
|
|
|
