SQZ5C、SQZ6C、SQZ8C、SQZ10C、SQZ12C、SQZ14C、SQZ16C、SQZ18C、SQZ20C、SQZ22C杆端轴承目录 |
|
| 生产厂家: | 南京哈宁轴承制造有限公司 |
| | | 公司地址: | 江苏省南京市莫愁路195号 |
| | | 联系电话: | 025-86629730、52217447、52251441 |
| | | 公司传真: | 025-52300551 |
| | | 联 系 人: | 刘长岭 |
| | | 联系邮件: | lcl@8767.com |
| | | 产品价格: | ¥.00 |
| | | 网上报价: | ¥.00 |
| |
|

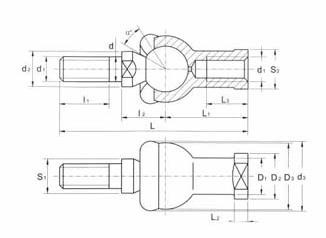

SQZ
轴承型号Bearings
number |
尺寸Dimensions (mm) |
额定静载荷 Static loadRatings (KN) |
a° |
重量 Weigh(kg) |
d |
d1 |
d2 |
d3 |
l1 |
l2 |
S1 |
L |
L1 |
L2 |
L3 |
D1 |
D2 |
D3 |
S2 |
SQZ5-C |
5 |
M5×0.8 |
9 |
20 |
8 |
11 |
7 |
46 |
24 |
4 |
12 |
9 |
11 |
17 |
9 |
2.8 |
15 |
0.025 |
SQZ6-C |
6 |
M6×1 |
10 |
20 |
11 |
12.2 |
8 |
55.2 |
28 |
5 |
15 |
10 |
13 |
20 |
11 |
3.7 |
15 |
0.041 |
SQZ8-C |
8 |
M8×1.25 |
12 |
24 |
12 |
16 |
10 |
65 |
32 |
5 |
16 |
12.5 |
16 |
24 |
14 |
5.8 |
15 |
0.075 |
SQZ10-C |
10 |
M10×1.25 |
14 |
30 |
15 |
19.5 |
11 |
74.5 |
35 |
6.5 |
18 |
15 |
19 |
28 |
17 |
8.4 |
15 |
0.12 |
SQZ12-C |
12 |
M12×1.25 |
17 |
32 |
17 |
21 |
15 |
84 |
40 |
6.5 |
20 |
17.5 |
22 |
32 |
19 |
11 |
15 |
0.18 |
SQZ14-C |
14 |
M14×1.5 |
19 |
38 |
22 |
23.5 |
17 |
103 |
45 |
8 |
25 |
20 |
25 |
36 |
22 |
15 |
11 |
0.27 |
SQZ16-C |
16 |
M16×1.5 |
22 |
44 |
23 |
25.5 |
19 |
112 |
50 |
8 |
27 |
22 |
27 |
40 |
22 |
15 |
11 |
0.36 |
SQZ18-C |
18 |
M18×1.5 |
23 |
45 |
25 |
31 |
20 |
130.5 |
58 |
10 |
32 |
25 |
31 |
45 |
27 |
19 |
11 |
0.54 |
SQZ20-C |
20 |
M20×1.5 |
27 |
50 |
25 |
29 |
24 |
133 |
63 |
10 |
38 |
27.5 |
34 |
45 |
30 |
19 |
7.5 |
0.57 |
SQZ22-C |
22 |
M22×1.5 |
27 |
52 |
26 |
33 |
24 |
145 |
70 |
12 |
43 |
30 |
37 |
50 |
32 |
23 |
7.5 |
0.76 | |
|
|
|
|
|
|
|
