SPS15SL、SPS20SL、SPS25SL、SPS30SL、SPS35SL直线导轨滑块轴承 |
|
| 生产厂家: | 南京哈宁轴承制造有限公司 |
| | | 公司地址: | 江苏省南京市莫愁路195号 |
| | | 联系电话: | 025-86629730、52217447、52251441 |
| | | 公司传真: | 025-52300551 |
| | | 联 系 人: | 刘长岭 |
| | | 联系邮件: | lcl@8767.com |
| | | 产品价格: | ¥.00 |
| | | 网上报价: | ¥.00 |
| |
|
|

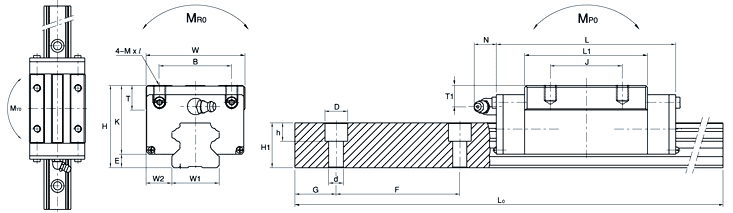

型号 |
安装尺寸 |
滑块尺寸 |
高度 H |
E |
W2 |
宽度 W |
长度 L |
安装孔尺寸 |
L1 |
K |
T |
注油嘴 |
B×J |
M×l |
安装孔 |
T1 |
N |
SPS15SL |
24 |
2.65 |
9.5 |
34 |
58.8 |
26×26 |
M4×5 |
38.8 |
21.35 |
6 |
Ø3.5 |
4 |
5 |
SPS20SL |
28 |
3.5 |
12 |
44 |
77.2 |
32×32 |
M5×7 |
50.8 |
24.5 |
7.5 |
M6×0.75 |
5 |
9.8 |
SPS20SLL |
28 |
3.5 |
12 |
44 |
93.2 |
32×50 |
M5×7 |
66.8 |
24.5 |
7.5 |
M6×0.75 |
5 |
9.8 |
SPS25SL |
33 |
5 |
12.5 |
48 |
86.9 |
35×35 |
M6×8 |
59.5 |
28 |
8 |
M6×0.75 |
5.2 |
9.8 |
SPS25SLL |
33 |
5 |
12.5 |
48 |
106.4 |
35×50 |
M6×8 |
79 |
28 |
8 |
M6×0.75 |
5.2 |
9.8 |
SPS25HL |
36 |
5 |
12.5 |
48 |
86.9 |
35×35 |
M6×8 |
59.5 |
31 |
11 |
M6×0.75 |
8.2 |
9.8 |
SPS25HLL |
36 |
5 |
12.5 |
48 |
106.4 |
35×50 |
M6×8 |
79 |
31 |
11 |
M6×0.75 |
8.2 |
9.8 |
SPS30SL |
42 |
6.5 |
16 |
60 |
98 |
40×40 |
M8×10 |
70.4 |
35.5 |
12 |
M6×0.75 |
8.5 |
10.7 |
SPS30SLL |
42 |
6.5 |
16 |
60 |
120.5 |
40×60 |
M8×10 |
92.9 |
35.5 |
12 |
M6×0.75 |
8.5 |
10.7 |
SPS35SL |
48 |
7.5 |
18 |
70 |
109.5 |
50×50 |
M8×12 |
80.4 |
40.5 |
15 |
M6×0.75 |
9.5 |
10.7 |
SPS35SLL |
48 |
7.5 |
18 |
70 |
135 |
50×72 |
M8×12 |
105.9 |
40.5 |
15 |
M6×0.75 |
9.5 |
10.7 | |
|
|
滑轨尺寸 |
负载能力
|
重量 |
宽度 W1 |
高度 H |
孔间距 F |
安装孔尺寸 d×D×h |
G |
导轨最大 长度 LOMAX |
动负载 C(N) |
静负载 CO(N) |
静态扭矩 (kgf·m) |
滑块 (kg) |
滑轨 (kg/m) |
MRO |
MPO |
MYO |
SPS15SL |
15 |
15 |
60 |
4.5×7.5×5.3 |
20 |
3000 |
8330 |
13426 |
7 |
5 |
5 |
0.2 |
1.45 |
SPS20SL |
20 |
17.5 |
60 |
6×9.5×8.5 |
20 |
4000 |
14210 |
25088 |
22 |
18 |
18 |
0.33 |
2.20 |
SPS20SLL |
20 |
17.5 |
60 |
6×9.5×8.5 |
20 |
4000 |
16905 |
36554 |
29 |
32 |
32 |
0.45 |
2.20 |
SPS25SL |
23 |
21.8 |
60 |
7×11×9 |
20 |
4000 |
20972 |
39200 |
36 |
32 |
31 |
0.56 |
3.10 |
SPS25SLL |
23 |
21.8 |
60 |
7×11×9 |
20 |
4000 |
24667 |
48069 |
44 |
50 |
49 |
0.73 |
3.10 |
SPS25HL |
23 |
21.8 |
60 |
7×11×9 |
20 |
4000 |
20972 |
39200 |
36 |
32 |
31 |
0.56 |
3.10 |
SPS25HLL |
23 |
21.8 |
60 |
7×11×9 |
20 |
4000 |
24667 |
48069 |
44 |
50 |
49 |
0.73 |
3.10 |
SPS30SL |
28 |
25 |
80 |
9×14×12 |
20 |
4000 |
29204 |
53802 |
60 |
50 |
49 |
0.98 |
4.45 |
SPS30SLL |
28 |
25 |
80 |
9×14×12 |
20 |
4000 |
35300 |
67904 |
75 |
81 |
80 |
1.28 |
4.45 |
SPS35SL |
34 |
29 |
80 |
9×14×12 |
20 |
4000 |
38808 |
68698 |
96 |
75 |
73 |
1.63 |
6.40 |
SPS35SLL |
34 |
29 |
80 |
9×14×12 |
20 |
4000 |
46070 |
90405 |
126 |
133 |
131 |
2.12 |
6.40 | | |
|
|
|
|
|
|
|
