长圆柱滚子滚针轴承目录-第二页-南京轴承厂

长圆柱滚子滚针轴承目录-第二页

生产厂家：

南京哈宁轴承制造有限公司

公司地址：

江苏省南京市莫愁路195号

联系电话：

025-86629730

公司传真：

025-52300551

联系人：

刘长岭

联系邮件：

lcl@8767.com

产品价格：

~~￥.00~~

网上报价：

￥.00

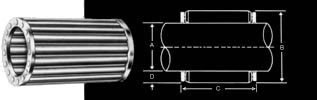

Bearing

Number

Shaft

Dia.

A

Outside

Dia.

B

Operating

Space

C

Roller

Dia.

D

Rating

at

100RPM

93310 .7500 1.1250 .625 .1875 930

93312 .7500 1.1250 .750 .1875 1170

93314 .7500 1.1250 .875 .1875 1390

93316 .7500 1.1250 1.000 .1875 1600

93318 .7500 1.1250 1.125 .1875 1810

93320 .7500 1.1250 1.250 .1875 2000

93322 .7500 1.1250 1.375 .1875 2200

93323 .7500 1.1250 1.437 .1875 2290

93324 .7500 1.1250 1.500 .1875 2380

93326 .7500 1.1250 1.625 .1875 2570

93328 .7500 1.1250 1.750 .1875 2750

93330 .7500 1.1250 1.875 .1875 2930

93332 .7500 1.1250 2.000 .1875 3100

93334 .7500 1.1250 2.125 .1875 3270

93336 .7500 1.1250 2.250 .1875 3400

93340 .7500 1.1250 2.500 .1875 3770

93342 .7500 1.1250 2.625 .1875 3930

93344 .7500 1.1250 2.750 .1875 4090

93348 .7500 1.1250 3.000 .1875 4400

93350 .7500 1.1250 3.125 .1875 4560

94312 .7500 1.2500 .750 .2500 1250

94316 .7500 1.2500 1.000 .2500 1710

94320 .7500 1.2500 1.250 .2500 2140

94322 .7500 1.2500 1.375 .2500 2350

94324 .7500 1.2500 1.500 .2500 2550

94328 .7500 1.2500 1.750 .2500 2940

94330 .7500 1.2500 1.875 .2500 3130

94332 .7500 1.2500 2.000 .2500 3310

94336 .7500 1.2500 2.250 .2500 3680

94338 .7500 1.2500 2.375 .2500 3860

94340 .7500 1.2500 2.500 .2500 4030

94348 .7500 1.2500 3.000 .2500 4710

95312 .7500 1.3750 .750 .3125 1420

95316 .7500 1.3750 1.000 .3125 1940

95320 .7500 1.3750 1.250 .3125 2430

95324 .7500 1.3750 1.500 .3125 2890

95328 .7500 1.3750 1.750 .3125 3330

95330 .7500 1.3750 1.875 .3125 3550

95332 .7500 1.3750 2.000 .3125 3760

95336 .7500 1.3750 2.250 .3125 4170

95340 .7500 1.3750 2.500 .3125 4750

95344 .7500 1.3750 2.750 .3125 4960

95348 .7500 1.3750 3.000 .3125 5340

95350 .7500 1.3750 3.125 .3125 5530

95352 .7500 1.3750 3.250 .3125 5710

95360 .7500 1.3750 3.750 .3125 6440

96316 .7500 1.5000 1.000 .3750 1870

96324 .7500 1.5000 1.500 .3750 2780

96332 .7500 1.5000 2.000 .3750 3620

96336 7500 1.5000 2.250 .3750 4010

96340 .7500 1.5000 2.500 .3750 4400

96348 .7500 1.5000 3.000 .3750 5140

130412 .8125 1.3125 .750 .2500 1370

130416 8125 1.3125 1.000 .2500 1870

130420 .8125 1.3125 1.250 .2500 2340

130422 .8125 1.3125 1.375 .2500 2570

130424 .8125 1.3125 1.500 .2500 2790

130428 .8125 1.3125 1.750 .2500 3210

130432 .8125 1.3125 2.000 .2500 3620

130436 .8125 1.3125 2.250 .2500 4010

130440 .8125 1.3125 2.500 .2500 4400

93412 .8750 1.2500 .750 .1875 1170

93416 .8750 1.2500 1.000 .1875 1600

93420 .8750 1.2500 1.250 .1875 2000

93424 .8750 1.2500 1.500 .1875 2380

93426 .8750 1.2500 1.625 .1875 2570

93428 .8750 1.2500 1.750 .1875 2750

93432 .8750 1.2500 2.000 .1875 3100

93436 .8750 1.2500 2.250 .1875 3440

93440 .8750 1.2500 2.500 .1875 3770

93444 .8750 1.2500 2.750 .1875 4090

93448 .8750 1.2500 3.000 .1875 4400

94412 .8750 1.3750 .750 .2500 1380

94416 .8750 1.3750 1.000 .2500 1890

94420 .8750 1.3750 1.250 .2500 2360

94424 .8750 1.3750 1.500 .2500 2810

94426 .8750 1.3750 1.625 .2500 3030

94428 .8750 1.3750 1.750 .2500 3240

94430 .8750 1.3750 1.875 .2500 3450

94432 .8750 1.3750 2.000 .2500 3650

94436 .8750 1.3750 2.250 .2500 4050

94440 .8750 1.3750 2.500 .2500 4440

94444 .8750 1.3750 2.750 .2500 4820

94448 .8750 1.3750 3.000 .2500 5190

95416 .8750 1.5000 1.000 .3125 2180

95420 .8750 1.5000 1.250 .3125 2730

95424 .8750 1.5000 1.500 .3125 3240

95428 .8750 1.5000 1.750 .3125 3740

95432 .8750 1.5000 2.000 .3125 4210

95436 .8750 1.5000 2.250 .3125 4670

95440 .8750 1.5000 2.500 .3125 5120

95444 .8750 1.5000 2.750 .3125 5560

95448 .8750 1.5000 3.000 .3125 5990

150316 .9375 1.3125 1.000 .1875 1800

150324 .9375 1.3125 1.500 .1875 2680

150340 .9375 1.3125 2.500 .1875 4230

150416 .9375 1.4375 1.000 .2500 1890

150420 .9375 1.4375 1.250 .2500 2360

150424 .9375 1.4375 1.500 .2500 2810

150428 .9375 1.4375 1.750 .2500 3240

150432 .9375 1.4375 2.000 .2500 3650

150440 .9375 1.4375 2.500 .2500 4440

93516 1.0000 1.3750 1.000 .1875 1800

93520 1.0000 1.3750 1.250 .1875 2250

93524 1.0000 1.3750 1.500 .1875 2680

93528 1.0000 1.3750 1.750 .1875 3090

93532 1.0000 1.3750 2.000 .1875 3480

93534 1.0000 1.3750 2.125 .1875 3670

93536 1.0000 1.3750 2.250 .1875 3860

93540 1.0000 1.3750 2.500 .1875 4230

93544 1.0000 1.3750 2.750 .1875 4590

93548 1.0000 1.3750 3.000 .1875 4940

93552 1.0000 1.3750 3.250 .1875 5290

94512 1.0000 1.5000 .750 .2500 1490

94516 1.0000 1.5000 1.000 .2500 2050

94518 1.0000 1.5000 1.125 .2500 2310

94520 1.0000 1.5000 1.250 .2500 2560

94522 1.0000 1.5000 1.375 .2500 2800

94524 1.0000 1.5000 1.500 .2500 3040

94526 1.0000 1.5000 1.625 .2500 3280

94528 1.0000 1.5000 1.750 .2500 3510

94532 1.0000 1.5000 2.000 .2500 3950

94536 1.0000 1.5000 2.250 .2500 4390

94540 1.0000 1.5000 2.500 .2500 4810

94544 1.0000 1.5000 2.750 .2500 5220

94548 1.0000 1.5000 3.000 .2500 5620

94556 1.0000 1.5000 3.500 .2500 6400

95512 1.0000 1.6250 .750 .3125 1740

95516 1.0000 1.6250 1.000 .3125 2380

95520 1.0000 1.6250 1.250 .3125 2980

95524 1.0000 1.6250 1.500 .3125 3540

95528 1.0000 1.6250 1.750 .3125 4080

95532 1.0000 1.6250 2.000 .3125 4600

95536 1.0000 1.6250 2.250 .3125 5100

95540 1.0000 1.6250 2.500 .3125 5590

95544 1.0000 1.6250 2.750 .3125 6070

95548 1.0000 1.6250 3.000 .3125 6540

95556 1.0000 1.6250 3.500 .3125 7440

95564 1.0000 1.6250 4.000 .3125 8320

96516 1.0000 1.7500 1.000 .3750 2160

96524 1.0000 1.7500 1.500 .3750 3210

96528 1.0000 1.7500 1.750 .3750 3700

96532 1.0000 1.7500 2.000 .3750 4170

96536 1.0000 1.7500 2.250 .3750 4630

96540 1.0000 1.7500 2.500 .3750 5070

96544 1.0000 1.7500 2.750 .3750 5500

96548 1.0000 1.7500 3.000 .3750 5930

96556 1.0000 1.7500 3.500 .3750 6750

96564 1.0000 1.7500 4.000 .3750 7540

97532 1.0000 1.8750 2.000 .4375 5390

97540 1.0000 1.8750 2.500 .4375 6560

97548 1.0000 1.8750 3.000 .4375 7660

98516 1.0000 2.0000 1.000 .5000 2860

98524 1.0000 2.0000 1.500 .5000 4260

98532 1.0000 2.0000 2.000 .5000 5530

98540 1.0000 2.0000 2.500 .5000 6720

98548 1.0000 2.0000 3.000 .5000 7860

98564 1.0000 2.0000 4.000 .5000 10000

170824 1.0625 2.0625 1.500 .5000 3830

170828 1.0625 2.0625 1.750 .5000 4410

170832 1.0625 2.0625 2.000 .5000 4970

170840 1.0625 2.0625 2.500 .5000 6040

170848 1.0625 2.0625 3.000 .5000 7060

170864 1.0625 2.0625 4.000 .5000 8990

170880 1.0625 2.0625 5.000 .5000 10810

99061 1.0937 1.6875 1.750 .2969 3890

93612 1.1250 1.5000 .750 .1875 1370

93616 1.1250 1.5000 1.000 .1875 1800

93620 1.1250 1.5000 1.250 .1875 2350

93624 1.1250 1.5000 1.500 .1875 2800

93628 1.1250 1.5000 1.750 .1875 3200

93632 1.1250 1.5000 2.000 .1875 3630

93636 1.1250 1.5000 2.250 .1875 4030

93640 1.1250 1.5000 2.500 .1875 4420

93644 1.1250 1.5000 2.750 .1875 4790

93648 1.1250 1.5000 3.000 .1875 5160

94612 1.1250 1.6250 .750 .2500 1590

94616 1.1250 1.6250 1.000 .2500 2180

94620 1.1250 1.6250 1.250 .2500 2730

94622 1.1250 1.6250 1.375 .2500 2990

94624 1.1250 1.6250 1.500 .2500 3250

94626 1.1250 1.6250 1.625 .2500 3500

94628 1.1250 1.6250 1.750 .2500 3740

94632 1.1250 1.6250 2.000 .2500 4220

94636 1.1250 1.6250 2.250 .2500 4680

94640 1.1250 1.6250 2.500 .2500 5130

94644 1.1250 1.6250 2.750 .2500 5570

94648 1.1250 1.6250 3.000 .2500 6000

94656 1.1250 1.6250 3.500 .2500 6830

94664 1.1250 1.6250 4.000 .2500 7640

95616 1.1250 1.7500 1.000 .3125 2400

95620 1.1250 1.7500 1.250 .3125 3000

95624 1.1250 1.7500 1.500 .3125 3570

95628 1.1250 1.7500 1.750 .3125 4110

95632 1.1250 1.7500 2.000 .3125 4640

95636 1.1250 1.7500 2.250 .3125 5150

95640 1.1250 1.7500 2.500 .3125 5640

95644 1.1250 1.7500 2.750 .3125 6120

95648 1.1250 1.7500 3.000 .3125 6590

95656 1.1250 1.7500 3.500 .3125 7510

95664 1.1250 1.7500 4.000 .3125 8390

95680 1.1250 1.7500 5.000 .3125 10090

97624 1.1250 2.0000 1.500 .4375 4190

97632 1.1250 2.0000 2.000 .4375 5440

97640 1.1250 2.0000 2.500 .4375 6610

97648 1.1250 2.0000 3.000 .4375 7730

97664 1.1250 2.0000 4.000 .4375 9840

190424 1.1875 1.6875 1.500 .2500 3250

190532 1.1875 1.8125 2.000 .3125 4980

190540 1.1875 1.8125 2.500 .3125 6060

190548 1.1875 1.8125 3.000 .3125 7080

190556 1.1875 1.8125 3.500 .3125 8060

190564 1.1875 1.8125 4.000 .3125 9010

190640 1.1875 1.9375 2.500 .3750 6800

190824 1.1875 2.1875 1.500 .5000 4330

190832 1.1875 2.1875 2.000 .5000 5630

190840 1.1875 2.1875 2.500 .5000 6850

190848 1.1875 2.1875 3.000 .5000 8000

190864 1.1875 2.1875 4.000 .5000 10190

190880 1.1875 2.1875 5.000 .5000 12240

93716 1.2500 1.6250 1.000 .1875 1970

93720 1.1250 1.6250 1.250 .1875 2470

93724 1.2500 1.6250 1.500 .1875 2930

93728 1.2500 1.6250 1.750 .1875 3380

93732 1.2500 1.6250 2.000 .1875 3810

93736 1.2500 1.6250 2.250 .1875 4230

93740 1.2500 1.6250 2.500 .1875 4640

93744 1.2500 1.6250 2.750 .1875 5030

93748 1.2500 1.6250 3.000 .1875 5420

94712 1.2500 1.7500 .750 .2500 1690

94716 1.2500 1.7500 1.000 .2500 2320

94720 1.2500 1.7500 1.250 .2500 2900

94724 1.2500 1.7500 1.500 .2500 3450

94726 1.2500 1.7500 1.625 .2500 3710

94728 1.2500 1.7500 1.750 .2500 3980

94732 1.2500 1.7500 2.000 .2500 4480

94736 1.2500 1.7500 2.250 .2500 4970

94740 1.2500 1.7500 2.500 .2500 5450

94744 1.2500 1.7500 2.750 .2500 5910

94748 1.2500 1.7500 3.000 .2500 6370

94756 1.2500 1.7500 3.500 .2500 7250

94764 1.2500 1.7500 4.000 .2500 8110
