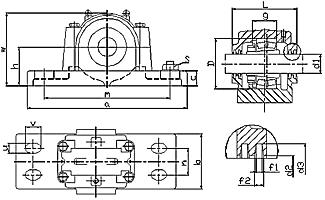

| 剖分式轴承座SD534、SD536、SD538、SD540、SD544、SD548、SD552、SD556、SD560、SD564 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
Housing No. |
Shaft dia
d1(mm) |
Dimensions(mm) |
Housing
Wt
(kg) |
Bearing No. |
Adapter
Sleeve |
Locating Ring |
Housing
No. |
|
D
H8 |
a |
b |
c |
g
H12 |
h
h12 |
L |
W |
m |
n |
u |
v |
s |
d2
H12 |
d3
H12 |
f1
H13 |
f2 |
Number |
QTY |
|
SD534 |
150 |
310 |
620 |
230 |
60 |
106 |
180 |
270 |
360 |
510 |
140 |
36 |
52 |
M30 |
153 |
183 |
10 |
13.8 |
92 |
22234K |
H3134 |
SR310x10 |
2 |
SD534 |
|
SD536 |
160 |
320 |
650 |
240 |
60 |
106 |
190 |
280 |
380 |
540 |
150 |
36 |
52 |
M30 |
163 |
193 |
10 |
13.8 |
105 |
22236K |
H3136 |
SR320x10 |
2 |
SD536 |
|
SD538 |
170 |
340 |
700 |
260 |
65 |
112 |
200 |
290 |
400 |
570 |
160 |
36 |
55 |
M30 |
173 |
203 |
10 |
13.8 |
125 |
22238K |
H3138 |
SR340x10 |
2 |
SD538 |
|
SD540 |
180 |
360 |
740 |
270 |
65 |
118 |
210 |
300 |
420 |
610 |
170 |
36 |
55 |
M30 |
183 |
213 |
10 |
13.8 |
140 |
22240K |
H3140 |
SR360x10 |
2 |
SD540 |
|
SD544 |
200 |
400 |
820 |
300 |
70 |
128 |
240 |
330 |
475 |
680 |
190 |
43 |
62 |
M36 |
203 |
240 |
11 |
15.7 |
200 |
22244K |
H3144 |
SR400x10 |
2 |
SD544 |
|
SD548 |
220 |
440 |
880 |
310 |
85 |
140 |
260 |
340 |
515 |
740 |
200 |
43 |
62 |
M36 |
223 |
260 |
11 |
15.7 |
230 |
22248K |
H3148 |
SR440x10 |
2 |
SD548 |
|
SD552 |
240 |
480 |
940 |
340 |
85 |
150 |
280 |
370 |
560 |
790 |
210 |
43 |
62 |
M36 |
243 |
286 |
12 |
17.4 |
300 |
22252K |
H3152 |
SR480x10 |
2 |
SD552 |
|
SD556 |
260 |
500 |
990 |
370 |
100 |
150 |
300 |
390 |
590 |
830 |
230 |
50 |
70 |
M42 |
263 |
306 |
12 |
17.4 |
350 |
22256K |
H3156 |
SR500x10 |
2 |
SD556 |
|
SD560 |
280 |
540 |
1060 |
390 |
100 |
160 |
325 |
410 |
640 |
890 |
250 |
50 |
70 |
M42 |
283 |
332 |
13 |
19.1 |
450 |
22260K |
H3160 |
SR540x10 |
2 |
SD560 |
|
SD564 |
300 |
580 |
1110 |
420 |
110 |
170 |
355 |
440 |
690 |
930 |
270 |
58 |
77 |
M48 |
303 |
352 |
13 |
19.1 |
550 |
22264K |
H3164 |
SR580x10 |
2 |
SD564 | |
|
|
|
|
|
|
|
