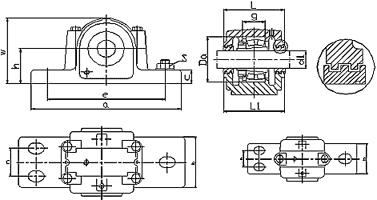

Housing
No. |
Shaft dia
d1
(in) |
Dimensions(mm) |
Housing
Wt (kg) |
Bearing
No. |
Adapter
Sleeve |
Locating Ring |
Housing
No. |
|
|
D
H8 |
g
H12 |
h
h12 |
w |
L |
(L1) |
a |
b |
c |
e
max |
e
min |
n |
S |
|
|
Number |
QTY |
|
|
SAF609 |
1-7/16 |
100 |
46 |
69.9 |
135 |
105 |
108 |
245 |
70 |
25 |
200.2 |
187.5 |
|
M16
(2) |
7.2 |
1309K
2309K
21309K
22309K |
HA309
HA2309
HA309
HA2309 |
FR100x10.5
FR100x10
FR100x10.5
FR100x10 |
2
1
2
1 |
SAF609 |
|
|
SAF610 |
1-11/16 |
110 |
51 |
76.2 |
148 |
114 |
118 |
270 |
70 |
29 |
228.6 |
196.9 |
|
M16
(2) |
9.2 |
1310K
2310K
21310K
22310K |
HA310
HA2310
HA310
HA2310 |
FR110x11.5
FR110x10
FR110x11.5
FR110x10 |
2
1
2
1 |
SAF610 |
|
|
SAF611 |
1-15/16 |
120 |
53 |
82.6 |
157 |
121 |
124 |
279 |
80 |
30 |
241.3 |
206.5 |
|
M16
(2) |
11 |
1311K
2311K
21311K
22311K |
HA311
HA2311
HA311
HA2311 |
FR120x12
FR120x10
FR120x12
FR120x10 |
2
1
2
1 |
SAF611 |
|
|
FSAF611 |
1-15/16 |
120 |
53 |
82.6 |
157 |
121 |
124 |
279 |
80 |
30 |
241.3 |
206.5 |
51 |
M12
(4) |
11 |
1311K
2311K
21311K
22311K |
HA311
HA2311
HA311
HA2311 |
FR120x12
FR120x10
FR120x12
FR120x10 |
2
1
2
1 |
FSAF611 |
|
|
SAF613 |
2-3/16 |
140 |
58 |
88.9 |
176 |
133 |
137 |
330 |
90 |
32 |
279.4 |
244.6 |
|
M20
(2) |
13.3 |
1313K
2313K
21313K
22313K |
HA313
HA2313
HA313
HA2313 |
FR140x12.5
FR140x10
FR140x12.5
FR140x10 |
2
1
2
1 |
SFA613 |
|
|
FSAF613 |
2-3/16 |
140 |
58 |
88.9 |
176 |
133 |
137 |
330 |
90 |
32 |
279.4 |
244.6 |
54 |
M16
(4) |
13.3 |
1313K
2313K
21313K
22313K |
HA313
HA2313
HA313
HA2313 |
FR140x12.5
FR140x10
FR140x12.5
FR140x10 |
2
1
2
1 |
FSAF613 |
|
|
SAF615 |
2-7/16 |
160 |
65 |
101.6 |
197 |
149 |
159 |
349 |
100 |
33 |
295.4 |
263.7 |
|
M20
(2) |
21 |
1315K
2315K
21315K
22315K |
HA315
HA2315
HA315
HA2315 |
FR160x14
FR160x10
FR160x14
FR160x10 |
2
1
2
1 |
SAF615 |
|
|
FSAF615 |
2-7/16 |
160 |
65 |
101.6 |
197 |
149 |
159 |
349 |
100 |
33 |
295.4 |
263.7 |
54 |
M16
(4) |
21 |
1315K
2315K
21315K
22315K |
HA315
HA2315
HA315
HA2315 |
FR160x14
FR160x10
FR160x14
FR160x10 |
2
1
2
1 |
FSAF615 |
|
|
SAF616 |
2-11/16 |
170 |
68 |
108 |
210 |
156 |
165 |
362 |
100 |
33 |
320.8 |
270 |
|
M20
(2) |
24 |
1316K
2316K
21316K
22316K |
HA316
HA2316
HA316
HA2316 |
FR170x14.5
FR170x10
FR170x14.5
FR170x10 |
2
1
2
1 |
SAF616 |
|
|
FSAF616 |
2-11/16 |
170 |
68 |
108 |
210 |
156 |
165 |
362 |
100 |
33 |
320.8 |
270 |
54 |
M16
(4) |
24 |
1316K
2316K
21316K
22316K |
HA316
HA2316
HA316
HA2316 |
FR170x14.5
FR170x10
FR170x14.5
FR170x10 |
2
1
2
1 |
FSAF616 |
|
|
SAF617 |
2-15/16 |
180 |
70 |
114.3 |
222 |
165 |
172 |
387 |
111 |
45 |
333.5 |
295.4 |
|
M24
(2) |
27 |
1317K
2317K
21317K
22317K |
HA317
HA2317
HA317
HA2317 |
FR180x14.5
FR180x10
FR180x14.5
FR180x10 |
2
1
1
1 |
SAF617 |
|
|
FSAF617 |
2-15/16 |
180 |
70 |
114.3 |
222 |
165 |
172 |
387 |
111 |
45 |
333.5 |
295.4 |
61 |
M20
(4) |
27 |
1317K
2317K
21317K
22317K |
HA317
HA2317
HA317
HA2317 |
FR180x14.5
FR180x10
FR180x14.5
FR180x10 |
2
1
1
1 |
FSAF617 |
|
|
SAF618 |
3-3/16 |
190 |
74 |
120.7 |
233 |
168 |
175 |
394 |
111 |
51 |
342.9 |
304.8 |
57 |
M20
(4) |
29.5 |
1318K
2318K
21318K
20318K
22318K |
HA318
HA2318
HA318
HA318
HA2318 |
FR190x11.5
FR190x10
FR190x15.5
FR190x15.5
FR190x10 |
2
1
2
2
1 |
SAF618 |
|
|
SAF620 |
3-7/16 |
215 |
83 |
133.3 |
260 |
181 |
187 |
419 |
121 |
54 |
368.3 |
336.6 |
70 |
M20
(4) |
42 |
1320K
2320K
20320K
21320K
22320K |
HA320
HA2320
HA320
HA320
HA2320 |
FR215x18
FR215x10
FR215x18
FR215x18
FR215x10 |
2
1
2
2
1 |
SAF620 |
|
|
SAF622 |
3-15/16 |
240 |
90 |
152.4 |
292 |
197 |
203 |
467 |
130 |
61 |
406.4 |
371.6 |
83 |
M20
(4) |
50 |
1322K
20322K
21322K
22322K |
HA322
HA322
HA322
HA2322 |
FR240x20
FR240x20
FR240x20
FR240x10 |
2
2
2
1 |
SAF622 |
|
|
SAF624 |
4-3/16 |
260 |
96 |
160.4 |
318 |
207 |
213 |
540 |
160 |
64 |
463.6 |
431.8 |
95 |
M24
(4) |
72 |
20324K
22324K |
HA3124
HA2324 |
FR260x20.5
FR260x10 |
2
1 |
SAF624 |
|
|
SAF626 |
4-7/16 |
280 |
103 |
169.9 |
338 |
216 |
222 |
559 |
160 |
67 |
489 |
441.5 |
95 |
M24
(4) |
77.7 |
20326K
22326K |
HA3126
HA2326 |
FR280x22.5
FR280x10 |
2
1 |
SAF626 |
|
|
SAF628 |
4-15/16 |
300 |
112 |
179.4 |
360 |
235 |
238 |
629 |
172 |
70 |
549.4 |
492.3 |
108 |
M24
(4) |
95 |
20328K
22328K |
HA3128
HA2328 |
FR300x25
FR300x10 |
2
1 |
SAF628 |
|
|
SAF630 |
5-3/16 |
320 |
118 |
190.5 |
378 |
245 |
248 |
680 |
181 |
76 |
600.2 |
530.4 |
117.6 |
M24
(4) |
118 |
20330K
22330K |
HA3130
HA2330 |
FR320x26.5
FR320x10 |
2
1 |
SAF630 |
|
|
SAF632 |
5-7/16 |
340 |
124 |
200 |
398 |
267 |
270 |
711 |
191 |
80 |
619.3 |
549.4 |
114.3 |
M30
(4) |
128 |
20332K
22332K |
HA3132
HA2332 |
FR340x28
FR340x10 |
2
1 |
SAF632 |
|
|
SAF634 |
5-15/16 |
360 |
130 |
209.6 |
419 |
279 |
286 |
749 |
203 |
86 |
635 |
571.5 |
127 |
M30
(4) |
150 |
22334K |
HA2334 |
FR360x10 |
1 |
SAF634 |
|
|
SAF636 |
6-7/16 |
380 |
136 |
225.4 |
451 |
282 |
289 |
794 |
210 |
89 |
676 |
610 |
133 |
M30
(4) |
170.2 |
22336K |
HA2336 |
FR380x10 |
1 |
SAF636 |
|
|
SAF638 |
6-15/16 |
400 |
142 |
241.3 |
473 |
298 |
305 |
832 |
222 |
95 |
708.2 |
628.7 |
133.4 |
M30
(4) |
198 |
22338K |
HA2338 |
FR400x10 |
1 |
SAF638 |
|
|
SAF640 |
7-3/16 |
420 |
148 |
250.8 |
508 |
299 |
306 |
870 |
229 |
102 |
749 |
667 |
140 |
M30
(4) |
255 |
22340K |
HA2340 |
FR420x10 |
1 |
SAF640 |
|
