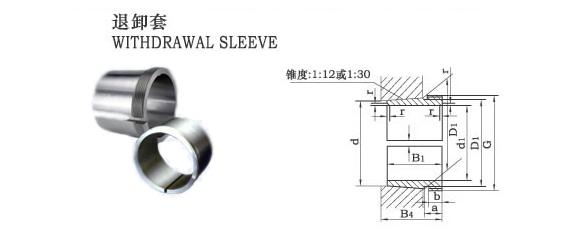

退卸套 JB/T7919.2-1999

退卸套对装在轴端，经常拆卸、规格较大的圆锥孔轴承（调心球轴承，调心滚子轴承，双列圆柱滚子轴承）装拆维修特别方便，广泛用于轻工、冶金、轧机等机械设备上。

退卸套AH39系列参数
型号	螺纹	尺 寸（mm）			螺母型号	适用轴承
		d	d1	B1		调心滚子轴承
AH3934	M180X3	170	160	59	KML36	23934K
AH3936	M190X3	180	170	66	KML38	23936K
AH3938	M200X3	190	180	66	KML40	23938K
AH3940	Tr210X4	200	190	77	KML42	23940K
AH3944	Tr230X4	220	200	77	KML46	23944K
AH3948	Tr250X4	240	220	77	KML50	23945K
AH3952	Tr280X4	260	240	94	KML56	23952K
AH3956	Tr300X4	280	260	94	KML60	23956K
AH3960	Tr320X5	300	280	112	KML64	23960K
AH3964	Tr340X5	320	300	112	KML68	23964K
AH3968	Tr360X5	340	320	112	KML72	23968K
AH3972	Tr380X5	360	340	112	KML76	23972K
AH3976	Tr400X5	380	360	130	KML80	23976K
AH3980	Tr420X5	400	380	130	KML84	23980K
AH3984	Tr440X5	420	400	130	KML88	23984K
AH3988	Tr460X5	440	420	1454	KML92	23988K
AH3992	Tr480X5	460	440	145	KML96	23992K
AH3996	Tr500X5	480	460	158	KML/500	23996K
AH39/500	Tr530X6	500	480	162	KML/530	239/500K
AH39/530	Tr560X6	530	500	175	KML/560	239/530K
AH39/560	Tr600X6	560	530	180	KML/600	239/560K
AH39/600	Tr630X6	600	570	192	KML/630	239/600K
AH39/630	Tr670X6	630	600	210	KML/670	239/630K
AH39/670	Tr710X7	670	630	216	KML/710	239/670K
AH39/710	Tr750X7	710	670	228	KML/750	239/710K
AH39/750	Tr800X7	750	710	234	KML/800	239/750K
AH39/800	Tr850X7	800	750	245	KML/850	239/800K
AH39/850	Tr900X7	850	800	258	KML/900	239/850K
AH39/900	Tr950X8	900	850	265	KML/950	239/900K
AH39/950	Tr1000X8	950	900	282	KML/1000	239/950K
AH39/1000	Tr1060X8	1000	950	296	KML/1060	239/1000K
AH39/1060	Tr1120X8	1060	1000	310	KML/1120	239/1060K

AH241系列退卸套基本尺寸和参数

型号 尺寸(mm) 适用的轴承号 重量(kg) d d1 B3 G 调心球子轴承 AH24122 110 105 82 M115×2 24112K AH24124 120 115 93 M130×2 24124K AH24126 130 125 94 M140×2 24126K AH24128 140 135 99 M150×2 24128K AH24130 150 145 115 M160×3 24130K AH24132 160 150 124 M170×3 24132K AH24134 170 160 125 M180×3 24134K AH24136 180 170 134 M190×3 24136K AH24138 190 180 146 M200×3 24138K AH24140 200 190 158 Tr210×4 24140K AH24144 220 200 170 Tr230×4 24144K AH24148 240 220 180 Tr260×4 24148K AH24152 260 240 202 Tr280×4 24152K AH24156 280 260 202 Tr300×4 24156K AH24160 300 280 224 Tr320×5 24160K AH24164 320 300 242 Tr340×5 24164K AH24168 340 320 269 Tr360×5 24168K AH24172 360 340 269 Tr380×5 24172K AH24176 380 360 271 Tr400×5 24176K AH24180 400 380 278 Tr420×5 24180K AH24184 420 400 310 Tr440×5 24184K AH24188 440 420 310 Tr460×5 24188K AH24192 460 440 332 Tr480×5 24192K AH24196 480 460 340 Tr500×5 24196K AH214/500 500 480 360 Tr530×6 241/500K30 AH214/530 530 500 370 Tr560×6 241/530K30 AH214/560 560 530 393 Tr600×6 241/560K30 AH214/600 600 570 413 Tr630×6 241/600K30 AH214/630 630 600 440 Tr670×6 241/630K30 AH214/670 670 630 452 Tr710×7 241/670K30 AH214/710 710 670 483 Tr750×7 241/710K30 AH214/750 750 710 520 Tr800×7 241/750K30 AH214/800 800 750 525 Tr850×7 241/800K30 AH214/850 850 800 560 Tr900×7 241/850K30 AH214/900 900 850 575 Tr950×8 241/900K30 AH214/950 950 900 605 Tr1000×8 241/950K30 AH214/1000 1000 950 645 Tr1060×8 241/1000K30 AH214/1060 1060 1000 665 Tr1120×8 241/1060K30
