| 凸台圆形座UCWFC201、UCWFC202、UCWFC203、UCFC201、UCFC202、UCFC203、UCFC204、UCFC205、UCFC206、UCFC207、UCFC208、UCFC209、UCFC210、UCFC211、UCFC212、UCFC213、UCFC214、UCFC215、UCFC216、UCFC217、UCFC218 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
带座轴承代号 |

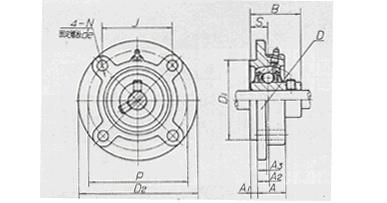

外形尺寸(mm) |
带座轴承重量(kg) |
配用轴承代号 |
配用轴承座代号 |
|
新代号 |
旧代号 |
D |
B |
S |
D1 |
D2 |
J |
P |
A |
A1 |
A2 |
A3 |
N |
ds |
新代号 |
旧代号 |
新代号 |
旧代号 |
|
UCWFC201 |
TY90501 |
40 |
27.4 |
11.5 |
58 |
97 |
53.0 |
75 |
19 |
4 |
9 |
6 |
12 |
M10 |
0.6 |
UCW201 |
90501 |
FC203 |
TY503 |
|
UCWFC202 |
TY90502 |
40 |
27.4 |
11.5 |
58 |
97 |
53.0 |
75 |
19 |
4 |
9 |
6 |
12 |
M10 |
0.5 |
UCW202 |
90502 |
FC203 |
TY503 |
|
UCWFC203 |
TY90503 |
40 |
27.4 |
11.5 |
58 |
97 |
53.0 |
75 |
19 |
4 |
9 |
6 |
12 |
M10 |
0.5 |
UCW203 |
90503 |
FC203 |
TY503 |
|
UCFC201 |
TY90501Y |
47 |
31.0 |
12.7 |
62 |
100 |
55.1 |
78 |
20.5 |
5 |
10 |
7 |
12 |
M10 |
0.8 |
UC201 |
90501Y |
FC204 |
TY504 |
|
UCFC202 |
TY90502Y |
47 |
31.0 |
12.7 |
62 |
100 |
55.1 |
78 |
20.5 |
5 |
10 |
7 |
12 |
M10 |
0.8 |
UC202 |
90502Y |
FC204 |
TY504 |
|
UCFC203 |
TY90503Y |
47 |
31.0 |
12.7 |
62 |
100 |
55.1 |
78 |
20.5 |
5 |
10 |
7 |
12 |
M10 |
0.7 |
UC203 |
90503Y |
FC204 |
TY504 |
|
UCFC204 |
TY90504 |
47 |
31.0 |
12.7 |
62 |
100 |
55.1 |
78 |
20.5 |
5 |
10 |
7 |
12 |
M10 |
0.7 |
UC204 |
90504 |
FC204 |
TY504 |
|
UCFC205 |
TY90505 |
52 |
34.1 |
14.3 |
70 |
115 |
63.6 |
90 |
21 |
6 |
10 |
7 |
12 |
M10 |
1.0 |
UC205 |
90505 |
FC205 |
TY505 |
|
UCFC206 |
TY90506 |
62 |
38.1 |
15.9 |
80 |
125 |
70.7 |
100 |
23 |
8 |
10 |
8 |
12 |
M10 |
1.3 |
UC206 |
90506 |
FC206 |
TY506 |
|
UCFC207 |
TY90507 |
72 |
42.9 |
17.5 |
90 |
135 |
77.8 |
110 |
26 |
8 |
11 |
9 |
14 |
M12 |
1.6 |
UC207 |
90507 |
FC20 |
TY507 |
|
UCFC208 |
TY90508 |
80 |
49.2 |
19.0 |
100 |
145 |
84.8 |
120 |
26 |
10 |
11 |
9 |
14 |
M12 |
2.1 |
UC208 |
90508 |
FC20 |
TY508 |
|
UCFC209 |
TY90509 |
85 |
49.2 |
19.0 |
105 |
160 |
93.3 |
132 |
28 |
12 |
10 |
14 |
16 |
M14 |
2.7 |
UC209 |
90509 |
FC209 |
TY509 |
|
UCFC210 |
TY90510 |
90 |
51.6 |
19.0 |
110 |
165 |
97.6 |
138 |
31 |
12 |
10 |
14 |
16 |
M14 |
3.1 |
UC210 |
90510 |
FC210 |
TY510 |
|
UCFC211 |
TY90511 |
100 |
55.6 |
22.2 |
125 |
185 |
106.1 |
150 |
36 |
12 |
13 |
15 |
19 |
M16 |
4.2 |
UC211 |
90511 |
FC211 |
TY511 |
|
UCFC212 |
TY90512 |
110 |
65.1 |
25.4 |
135 |
195 |
113.1 |
160 |
36 |
12 |
17 |
15 |
19 |
M16 |
5.3 |
UC212 |
90512 |
FC212 |
TY512 |
|
UCFC213 |
TY90513 |
120 |
65.1 |
25.4 |
145 |
205 |
120.2 |
170 |
40 |
14 |
16 |
15 |
19 |
M16 |
6.0 |
UC213 |
90513 |
FC213 |
TY513 |
|
UCFC214 |
TY90514 |
125 |
74.6 |
30.2 |
150 |
215 |
125.1 |
177 |
40 |
14 |
17 |
18 |
19 |
M16 |
7.0 |
UC214 |
90514 |
FC214 |
TY514 |
|
UCFC215 |
TY90515 |
130 |
77.8 |
33.3 |
160 |
220 |
130.1 |
184 |
42 |
16 |
18 |
18 |
19 |
M16 |
7.8 |
UC215 |
90515 |
FC215 |
TY515 |
|
UCFC216 |
TY90516 |
140 |
82.6 |
33.3 |
170 |
240 |
141.1 |
200 |
45 |
16 |
18 |
18 |
23 |
M16 |
9.3 |
UC216 |
90516 |
FC216 |
TY516 |
|
UCFC217 |
TY90517 |
150 |
85.7 |
34.1 |
180 |
250 |
147.1 |
208 |
50 |
18 |
18 |
20 |
23 |
M20 |
11.0 |
UC217 |
90517 |
FC217 |
TY517 |
|
UCFC218 |
TY90518 |
160 |
56.0 |
39.7 |
190 |
265 |
155.5 |
220 |
50 |
18 |
22 |
20 |
23 |
M20 |
13.0 |
UC218 |
90518 |
FC218 |
TY518 | |
|
|
|
|
|
|
|
