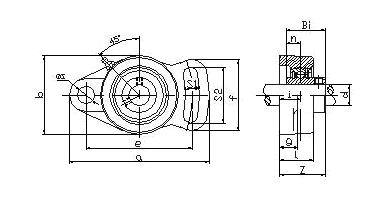

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)													Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
	(in)	(mm)	a	e	i	g	l	S	S1	S2	b	f	z	Bi	n	mm	in
UCFA201-8 UCFA202-9 UCFA202-10 UCFA203-11 UCFA204-12 UCFA201 UCFA202 UCFA203 UCFA204	1/2 9/16 5/8 11/16 3/4	12 15 17 20	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	M8	5/16	UC201-8 UC202-9 UC202-10 UC203-11 UC204-12 UC201 UC202 UC203 UC204	FA204	0.3
UCFA205-13 UCFA205-14 UCFA205-15 UCFA205-16 UCFA205	13/16 7/8 15/16 1	25	125	98	16	14	27	12	13	51	68	65	35.7	34	14.3	M10	3/8	UC205-13 UC205-14 UC205-15 UC205-16 UC205	FA205	0.5
UCFA206-17 UCFA206-18 UCFA206-19 UCFA206-20 UCFA206	1-1/16 1-1/8 1-3/16 1-1/4	30	144	117	18	14	31	12	13	58	80	72	40.2	38.1	15.9	M10	3/8	UC206-17 UC206-18 UC206-19 UC206-20 UC206	FA206	0.65
UCFA207-20 UCFA207-21 UCFA207-22 UCFA207-23 UCFA207	1-1/4 1-5/16 1-3/8 1-7/16	35	161	130	19	16	34	14	15	66	90	82	44.4	42.9	17.5	M12	7/16	UC207-20 UC207-21 UC207-22 UC207-23 UC207	FA207	0.9
UCFA208-24 UCFA208-25 UCFA208	1-1/2 1-9/16	40	175	144	21	16	36	14	15	71	100	87	51.2	49.2	19	M12	7/16	UC208-24 UC208-25 UC208	FA208	1
UCFA209-26 UCFA209-27 UCFA209-28 UCFA209	1-5/8 1-11/16 1-3/4	45	181	148	22	18	38	16	17	72	108	90	52.2	49.2	19	M14	1/2	UC209-26 UC209-27 UC209-28 UC209	FA209	1.2
UCFA210-29 UCFA210-30 UCFA210-31 UCFA210-32 UCFA210	1-13/16 1-7/8 1-15/16 2	50	190	157	22	18	40	16	17	76	115	94	54.6	51.6	19	M14	1/2	UC210-29 UC210-30 UC210-31 UC210-32 UC210	FA210	1.4
UCFA211-32 UCFA211-33 UCFA211-34 UCFA211-35 UCFA211	2 2-1/16 2-1/8 2-3/16	55	219	184	25	20	43	16	17	86	130	104	58.4	55.6	22.2	M14	1/2	UC211-32 UC211-33 UC211-34 UC211-35 UC211	FA211	2.3
UCFA212-36 UCFA212-37 UCFA212-38 UCFA212-39 UCFA212	2-1/4 2-5/16 2-3/8 2-7/16	60	240	202	29	18	48	18	19	100	140	120	68.7	65.1	25.4	M16	5/8	UC212-36 UC212-37 UC212-38 UC212-39 UC212	FA212	2.75
UCFA213-40 UCFA213-41 UCFA213	2-1/2 2-9/16	65	248	210	30	20	49	18	19	106	152	126	69.7	65.1	25.4	M16	5/8	UC213-40 UC213-41 UC213	FA213	3.35
