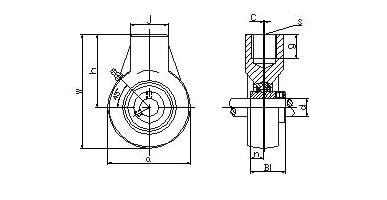

Bearing Unit NO. |
Shaft Dia d |
Dimensions(mm) |
Bearing No. |
Housing No. |
Weight (kg) |
|
|
(in) |
(mm) |
a |
w |
h |
j |
s |
g |
Bi |
n |
c |
|
|
UCECH201-8
UCECH202-9
UCECH202-10
UCECH203-11
UCECH204-12
UCECH201
UCECH202
UCECH203
UCECH204 |
1/2
9/16
5/8
11/16
3/4
|
12
15
17
20 |
64 |
96 |
64 |
40 |
PF3/4 |
19 |
31 |
12.7 |
0 |
UC201-8
UC202-9
UC202-10
UC203-11
UC204-12
UC201
UC202
UC203
UC204 |
ECH204 |
0.5 |
|
|
|
|
UCECH205-13
UCECH205-14
UCECH205-15
UCECH205-16
UCECH205 |
13/16
7/8
15/16
1 |
25 |
78 |
103 |
64 |
40 |
PF3/4 |
19 |
34 |
14.3 |
0 |
UC205-13
UC205-14
UC205-15
UC205-16
UC205 |
ECH205 |
0.5 |
|
|
UCECH206-17
UCECH206-18
UCECH206-19
UCECH206-20
UCECH206 |
1-1/16
1-1/8
1-3/16
1-1/4 |
30 |
78 |
103 |
64 |
40 |
PF3/4 |
19 |
38.1 |
15.9 |
0 |
UC206-17
UC206-18
UC206-19
UC206-20
UC206 |
ECH206 |
0.5 |
|
|
UCECH207-20
UCECH207-21
UCECH207-22
UCECH207-23
UCECH207 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35 |
92 |
116 |
70 |
40 |
PF3/4 |
19.1 |
42.9 |
17.5 |
0 |
UC207-20
UC207-21
UC207-22
UC207-23
UC207 |
ECH207 |
0.6 |
|
|
UCECH208-24
UCECH208-25
UCECH208 |
1-1/2
1-9/16 |
40 |
96 |
121 |
73 |
40 |
PF3/4 |
19 |
49.2 |
19 |
2 |
UC208-24
UC208-25
UC208 |
ECH208 |
0.5 |
|
|
UCECH209-26
UCECH209-27
UCECH209-28
UCECH209 |
1-5/8
1-11/16
1-3/4 |
45 |
108 |
136 |
82 |
48 |
PF3/4 |
21 |
49.2 |
19 |
5 |
UC209-26
UC209-27
UC209-28
UC209 |
ECH209 |
1.4 |
|
|
UCECH210-29
UCECH210-30
UCECH210-31
UCECH210-32
UCECH210 |
1-13/16
1-7/8
1-15/16
2 |
50 |
118 |
142 |
83 |
48 |
PF1 |
21 |
51.6 |
19 |
5 |
UC210-29
UC210-30
UC210-31
UC210-32
UC210 |
ECH210 |
1.8 |
|
|
UCECH211-32
UCECH211-33
UCECH211-34
UCECH211-35
UCECH211 |
2
2-1/16
2-1/8
2-3/16 |
55 |
126 |
158 |
95 |
60 |
PF1-1/4 |
25 |
55.6 |
22.2 |
7 |
UC211-32
UC211-33
UC211-34
UC211-35
UC211 |
ECH211 |
1.85 |
|
|
UCECH212-36
UCECH212-37
UCECH212-38
UCECH212-39
UCECH212 |
2-1/4
2-5/16
2-3/8
2-7/16 |
60 |
142 |
173 |
102 |
60 |
PF1-1/4 |
28 |
65.1 |
25.4 |
9 |
UC212-36
UC212-37
UC212-38
UC212-39
UC212 |
ECH212 |
2.87 |
|
|
UCECH213-40
UCECH213-41
UCECH213 |
2-1/2
2-9/16 |
65 |
166 |
200 |
117 |
70 |
PF1-1/2 |
32 |
65.1 |
25.4 |
9.5 |
UC213-40
UC213-41
UC213 |
ECH213 |
4.75 |
|
|
UCECH214-42
UCECH214-43
UCECH214-44
UCECH214 |
2-5/8
2-11/16
2-3/4 |
70 |
166 |
200 |
117 |
70 |
PF1-1/2 |
32 |
74.6 |
30.2 |
9.5 |
UC214-42
UC214-43
UC214-44
UC214 |
ECH214 |
4.75 |
|
|
UCECH215-45
UCECH215-46
UCECH215-47
UCECH215-48
UCECH215 |
2-13/16
2-7/8
2-15/16
3 |
75 |
166 |
200 |
117 |
70 |
PF1-1/2 |
32 |
77.8 |
33.2 |
9.5 |
UC215-45
UC215-46
UC215-47
UC215-48
UC215 |
ECH215 |
4.75 |
|
