Bearing Unit NO. |
Shaft Dia
d |

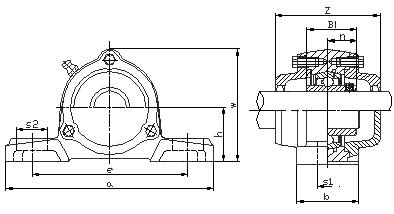

Dimensions(mm) |
Bolt Used |
Bearing
No. |
Housing
No. |
Housing
Wt (kg) |
|
|
(in) |
(mm) |
h |
a |
e |
b |
s1 |
s2 |
W |
Z |
Bi |
n |
mm |
in |
|
|
UCCP201C-8
UCCP202C-9
UCCP202C-10
UCCP203C-11
UCCP201C
UCCP202C
UCCP203C |
1/2
9/16
5/8
11/16 |
12
15
17 |
30.2 |
127 |
95 |
38 |
13 |
19 |
66 |
62 |
31 |
12.7 |
M10 |
3/8 |
UC201-8
UC202-9
UC202-10
UC203-11
UC201
UC202
UC203 |
CP201
CP202
CP203
|
0.89 |
|
|
|
|
UCCP204C-12
UCCP204C |
3/4 |
20 |
33.3 |
127 |
95 |
38 |
13 |
19 |
69 |
62 |
31 |
12.7 |
M10 |
3/8 |
UC204-12
UC204 |
CP204 |
0.89 |
|
|
UCCP205C-13
UCCP205C-14
UCCP205C-15
UCCP205C-16
UCCP205C |
13/16
7/8
15/16
1 |
25 |
36.5 |
140 |
105 |
38 |
13 |
19 |
76 |
70 |
34 |
14.3 |
M10 |
3/8 |
UC205-13
UC205-14
UC205-15
UC205-16
UC205 |
CP205 |
1.21 |
|
|
UCCP206C-17
UCCP206C-18
UCCP206C-19
UCCP206C-20
UCCP206C |
1-1/16
1-1/8
1-3/16
1-1/4 |
30 |
42.9 |
165 |
121 |
48 |
17 |
21 |
87 |
74 |
38.1 |
15.9 |
M14 |
1/2 |
UC206-17
UC206-18
UC206-19
UC206-20
UC206 |
CP206 |
1.69 |
|
|
UCCP207C-20
UCCP207C-21
UCCP207C-22
UCCP207C-23
UCCP207C |
1-1/4
1-5/16
1-3/8
1-7/16 |
35 |
47.6 |
167 |
127 |
48 |
17 |
21 |
97 |
80 |
42.9 |
17.5 |
M14 |
1/2 |
UC207-20
UC207-21
UC207-22
UC207-23
UC207 |
CP207 |
2.01 |
|
|
UCCP208C-24
UCCP208C-25
UCCP208C |
1-1/2
1-9/16 |
40 |
49.2 |
184 |
137 |
54 |
17 |
25 |
104 |
90 |
49.2 |
19 |
M14 |
1/2 |
UC208-24
UC208-25
UC208 |
CP208 |
2.37 |
|
|
UCCP209C-26
UCCP209C-27
UCCP209C-28
UCCP209C |
1-5/8
1-11/16
1-3/4 |
45 |
54 |
190 |
146 |
54 |
17 |
22 |
114 |
90 |
49.2 |
19 |
M14 |
1/2 |
UC209-26
UC209-27
UC209-28
UC209 |
CP209 |
2.72 |
|
|
UCCP210C-29
UCCP210C-30
UCCP210C-31
UCCP210C-32
UCCP210C |
1-13/16
1-7/8
1-15/16
2 |
50 |
57.2 |
206 |
159 |
60 |
20 |
25 |
120 |
98 |
51.6 |
19 |
M16 |
5/8 |
UC210-29
UC210-30
UC210-31
UC210-32
UC210 |
CP210 |
3.31 |
|
|
UCCP211C-32
UCCP211C-33
UCCP211C-34
UCCP211C-35
UCCP211C |
2
2-1/16
2-1/8
2-3/16 |
55 |
63.5 |
219 |
171 |
60 |
20 |
25 |
133 |
100 |
55.6 |
22.2 |
M16 |
5/8 |
UC211-32
UC211-33
UC211-34
UC211-35
UC211 |
CP211 |
4.06 |
|
|
UCCP212C-36
UCCP212C-37
UCCP212C-38
UCCP212C-39
UCCP212C |
2-1/4
2-5/16
2-3/8
2-7/16 |
60 |
69.8 |
241 |
184 |
70 |
20 |
25 |
145 |
114 |
65.1 |
25.4 |
M16 |
5/8 |
UC212-36
UC212-37
UC212-38
UC212-39
UC212 |
CP212 |
5.34 |
|
|
UCCP213C-40
UCCP213C-41
UCCP213C |
2-1/2
2-9/16 |
65 |
76.2 |
265 |
203 |
70 |
25 |
29 |
156 |
118 |
65.1 |
25.4 |
M22 |
7/8 |
UC213-40
UC213-41
UC213 |
CP213 |
6.17 |
|
|
UCCP214C-42
UCCP214C-43
UCCP214C-44
UCCP214C |
2-5/8
2-11/16
2-3/4 |
70 |
79.4 |
266 |
210 |
72 |
25 |
31 |
162 |
134 |
74.6 |
30.2 |
M22 |
7/8 |
UC214-42
UC214-43
UC214-44
UC214 |
CP214 |
7.36 |
|
|
UCCP215C-45
UCCP215C-46
UCCP215C-47
UCCP215C-48
UCCP215C |
2-13/16
2-7/8
2-15/16
3 |
75 |
82.6 |
275 |
217 |
74 |
25 |
31 |
167 |
136 |
77.8 |
33.3 |
M22 |
7/8 |
UC215-45
UC215-46
UC215-47
UC215-48
UC215 |
CP215 |
7.46 |
|
|
UCCP216C-50
UCCP216C |
3-1/8 |
80 |
88.9 |
292 |
232 |
78 |
25 |
31 |
188 |
146 |
82.6 |
33.3 |
M22 |
7/8 |
UC216-50
UC216 |
CP216 |
9.48 |
|
|
UCCP217C-52
UCCP217C |
3-1/4 |
85 |
95.2 |
310 |
247 |
83 |
25 |
31 |
199 |
150 |
85.7 |
34.1 |
M22 |
7/8 |
UC217-52
UC217 |
CP217 |
10.97 |
|
|
UCCP218C-56
UCCP218C |
3-1/2 |
90 |
101.6 |
327 |
262 |
88 |
27 |
33 |
211 |
164 |
96 |
39.7 |
M24 |
1 |
UC218-56
UC218 |
CP218 |
14.03 |
|
