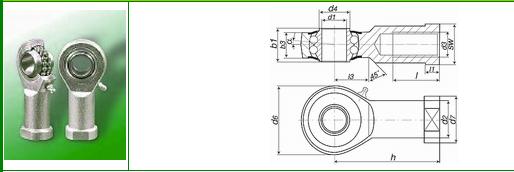

| 双列球滚子内螺纹杆端关节轴承BRI6、BRI8、BRI10、BRI12、BRI14、BRI16、BRI18、BRI20、BRI22、BRI25、BRI30 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
|
Nr. |
d1 |
d2 |
d3 |
d4 |
d6 |
d7 |
b1 |
b3 |
h |
l |
l1 |
l3 |
SW |
α |
weight |
nmax |
C |
C0 |
|
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
[°] |
[kg] |
min-1 |
[N] |
[N] |
|
BRI |
6 |
6 |
10 |
M 6 |
9 |
20 |
13 |
9 |
6.75 |
30 |
12 |
5 |
10 |
11 |
8 |
0.024 |
1350 |
2750 |
650 |
|
BRI |
8 |
8 |
12.5 |
M 8 |
10.5 |
24 |
16 |
12 |
9 |
36 |
16 |
5 |
12 |
14 |
8.5 |
0.044 |
1300 |
4000 |
1000 |
|
BRI |
10 |
10 |
15 |
M 10 |
12 |
28 |
19 |
14 |
10.5 |
43 |
20 |
6.5 |
15 |
17 |
8 |
0.072 |
1225 |
4450 |
1450 |
|
BRI |
12 |
12 |
17.5 |
M 12 |
14.5 |
32 |
22 |
16 |
12 |
50 |
22 |
6.5 |
16 |
19 |
7.5 |
0.107 |
1125 |
4950 |
1800 |
|
BRI |
14 |
14 |
20 |
M 14 |
17 |
36 |
25 |
19 |
13.5 |
57 |
25 |
8 |
20 |
22 |
6 |
0.16 |
1025 |
5600 |
2000 |
|
BRI |
16 |
16 |
22 |
M 16 |
19 |
42 |
27 |
21 |
15 |
64 |
28 |
8 |
22 |
22 |
8 |
0.224 |
975 |
6250 |
2350 |
|
BRI |
18 |
18 |
25 |
M 18 x 1,5 |
21.5 |
46 |
31 |
23 |
16.5 |
71 |
32 |
10 |
24 |
27 |
8.5 |
0.293 |
900 |
7100 |
2900 |
|
BRI |
20 |
20 |
27.5 |
M 20 x 1,5 |
24.5 |
50 |
34 |
25 |
18 |
77 |
33 |
10 |
26 |
30 |
7 |
0.367 |
825 |
7900 |
3450 |
|
BRI |
22 |
22 |
30 |
M 22 x 1,5 |
26 |
54 |
38 |
28 |
20 |
84 |
37 |
12 |
26 |
32 |
8 |
0.48 |
725 |
9300 |
3980 |
|
BRI |
25 |
25 |
30 |
M 24 x 2 |
29.5 |
64 |
35 |
31 |
22 |
94 |
42 |
10 |
32 |
30 |
5 |
0.572 |
600 |
11030 |
5680 |
|
BRI |
30 |
30 |
40 |
M 30 x 2 |
34.5 |
70 |
50 |
37 |
25 |
110 |
51 |
15 |
35 |
41 |
7.5 |
0.978 |
450 |
14150 |
7450 | |
|
|
|
|
|
|
