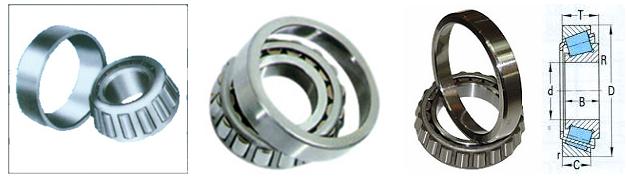

| 单列英制圆锥滚子轴承：内径266.7-45.618 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
基 本 尺 寸 mm |
现 代 号 |
作 用 点
Function point |
基本额定负荷 kN |
极 限 转 速 rpm
Speed ratings |
重 量
Weight |
|
Principal dimension |
Basic load ratings |
|
d |
D |
T |
Designations |
a |
动dyc |
静stc |
脂润滑 Grease |
油润滑 Oil |
Kg |
|
mm |
英寸Inch |
mm |
英寸Inch |
mm |
英寸Inch |
Cr |
Cor |
|
266.7 |
10.5 |
393.7 |
15.5 |
130.175 |
5.125 |
KEE275105/K275155 |
75 |
700 |
1400 |
750 |
1000 |
27.8 |
|
273.05 |
10.75 |
393.7 |
15.5 |
130.175 |
5.125 |
KEE275108/K275155 |
75 |
700 |
1400 |
750 |
1000 |
26.3 |
|
288.925 |
11.375 |
406.4 |
16 |
77.788 |
3.0625 |
M255449/M255410 |
72 |
1140 |
1900 |
670 |
900 |
30.5 |
|
304.8 |
12 |
393.7 |
15.5 |
50.8 |
2 |
KL357049/KL357010 |
64 |
530 |
1210 |
670 |
900 |
14.6 |
|
304.8 |
12 |
406.4 |
16 |
63.5 |
2.5 |
LM757049/LM757010 |
79 |
2000 |
2800 |
670 |
900 |
21.2 |
|
607.72 |
23.926 |
787.4 |
31 |
93.662 |
3.6875 |
EE649239/649310 |
124 |
2000 |
2800 |
340 |
450 |
108 |
|
760* |
29.9213 |
889 |
35 |
88.9 |
3.5 |
L183448/L183410 |
127 |
2000 |
3200 |
260 |
360 |
93.5 |
|
762 |
30 |
889 |
35 |
88.9 |
3.5 |
L183449/L183410 |
127 |
2000 |
3200 |
260 |
360 |
91.9 |
|
17.462 |
0.6875 |
39.878 |
1.57 |
13.843 |
0.545 |
LM11749/LM11710 |
9 |
25.6 |
28 |
9000 |
13000 |
0.0758 |
|
19.05 |
0.75 |
45.237 |
1.781 |
15.494 |
0.61 |
LM11949/LM11910 |
10 |
28 |
32 |
8500 |
1200 |
0.123 |
|
19.05 |
0.75 |
49.225 |
1.938 |
21.209 |
0.835 |
K09067/K09196 |
15 |
34 |
37 |
8500 |
1200 |
0.195 |
|
19.05 |
0.75 |
49.225 |
1.938 |
23.02 |
0.9063 |
K09074/K09194 |
16 |
34 |
37 |
8500 |
1200 |
0.201 |
|
21.43 |
0.8437 |
50.005 |
1.9687 |
17.526 |
0.69 |
M12649/M12610 |
11 |
43 |
55 |
8000 |
11000 |
0.169 |
|
21.43 |
0.8437 |
50.005 |
1.9687 |
17.526 |
0.69 |
K2M12649/K2M12610 |
11 |
56 |
72 |
8000 |
11000 |
0.169 |
|
22 |
0.8653 |
45.237 |
1.781 |
15.494 |
0.61 |
LM12749/LM12710 |
13 |
32.5 |
40 |
8000 |
11000 |
0.116 |
|
25.4 |
1 |
50.292 |
1.98 |
14.224 |
0.56 |
L44643/L44610 |
11 |
26.8 |
34 |
7500 |
10000 |
0.128 |
|
25.4 |
1 |
57.15 |
2.25 |
19.431 |
0.765 |
KM84548/KM84510 |
16 |
38 |
49 |
7500 |
10000 |
0.237 |
|
26* |
|
57.15 |
2.25 |
17.462 |
0.6875 |
K15579X/K15520 |
19 |
34.5 |
43.5 |
7500 |
10000 |
0.207 |
|
26.988 |
1.0625 |
50.292 |
1.98 |
14.224 |
0.56 |
L44649/L44610 |
11 |
26.8 |
34 |
7500 |
10000 |
0.126 |
|
26.988 |
1.0625 |
63.5 |
2.5 |
20.638 |
0.8125 |
K15106/K15250X |
15 |
42 |
53 |
7500 |
10000 |
0.316 |
|
28.575 |
1.125 |
73.025 |
2.875 |
22.225 |
0.875 |
K02872/K02820 |
19 |
50 |
65.5 |
7000 |
9000 |
0.825 |
|
29 |
1.1417 |
50.292 |
1.98 |
14.224 |
0.56 |
L45449/L45410 |
11 |
26.8 |
34 |
7000 |
9000 |
0.118 |
|
30 |
1.811 |
72.085 |
2.838 |
22.385 |
0.8813 |
K14118/K14283 |
17 |
42 |
55.5 |
7000 |
9000 |
0.202 |
|
31.75 |
1.25 |
59.131 |
2.328 |
15.875 |
0.625 |
LM67048/LM67010 |
13 |
40 |
50 |
6300 |
8500 |
0.175 |
|
31.75 |
1.25 |
62 |
2.4409 |
18.161 |
0.715 |
K15123/K15245 |
13 |
51.5 |
62 |
6300 |
8500 |
0.242 |
|
33.338 |
1.3125 |
68.262 |
2.6875 |
22.225 |
0.875 |
KM88048/KM88010 |
19 |
50.9 |
70.4 |
6300 |
8500 |
0.382 |
|
34.925 |
1.375 |
65.088 |
2.5625 |
18.034 |
0.71 |
KLM48548/KLM48510 |
14 |
44.5 |
60 |
5600 |
7500 |
0.26 |
|
34.925 |
1.375 |
65.088 |
2.5625 |
21.082 |
0.83 |
KLM48548A/KLM48511A |
14 |
44.5 |
60 |
5600 |
7500 |
0.291 |
|
34.925 |
1.375 |
69.012 |
2.717 |
19.845 |
0.7813 |
K14138A/K14274 |
14 |
42 |
55.5 |
5600 |
7500 |
0.32 |
|
34.925 |
1.375 |
73.025 |
2.875 |
23.812 |
0.9375 |
25877/25821 |
14 |
65 |
85 |
5600 |
7500 |
0.475 |
|
35* |
|
59.131 |
2.328 |
15.875 |
0.625 |
L68149/L68110 |
13 |
31 |
36 |
5600 |
7500 |
0.166 |
|
38.1 |
1.5 |
65.088 |
2.5625 |
18.034 |
0.71 |
KLM29749/KLM29710 |
12 |
40 |
57 |
5000 |
7000 |
0.237 |
|
38.1 |
1.5 |
72.238 |
2.844 |
20.638 |
0.8125 |
K16150/K16284 |
17 |
45 |
61 |
5000 |
7000 |
0.345 |
|
38.1 |
1.5 |
76.2 |
3 |
23.812 |
0.9375 |
K2788/K2720 |
17 |
82 |
110 |
5000 |
7000 |
0.507 |
|
38.1 |
1.5 |
79.375 |
3.125 |
29.37 |
1.1563 |
K3490/K3420 |
20 |
79.1 |
104 |
5000 |
7000 |
0.653 |
|
38.1 |
1.5 |
82.55 |
3.25 |
29.37 |
1.1563 |
HM801346X/HM801310 |
25 |
89 |
127 |
5000 |
7000 |
0.77 |
|
38.1 |
1.5 |
88.5 |
3.4843 |
26.988 |
1.0625 |
418/414 |
18 |
90.5 |
113 |
5000 |
7000 |
0.843 |
|
39.688 |
1.5625 |
73.025 |
2.875 |
23.812 |
0.9375 |
K2789/K2735X |
17 |
82 |
110 |
4500 |
6000 |
0.413 |
|
41* |
|
68* |
2.6772 |
17.5 |
0.689 |
KLM300849/KLM300811 |
14 |
46.5 |
60 |
4500 |
6000 |
0.241 |
|
41.275 |
1.625 |
73.431 |
2.891 |
19.558 |
0.77 |
LM501349/LM501310 |
15 |
61 |
73.5 |
4500 |
6000 |
0.353 |
|
41.275 |
1.625 |
73.431 |
2.891 |
21.43 |
0.8437 |
KLM501349/KLM501314 |
17 |
61 |
73.5 |
4500 |
6000 |
0.36 |
|
41.275 |
1.625 |
80.167 |
3.1562 |
29.37 |
1.1563 |
K3384/K3320 |
17 |
88 |
114 |
4500 |
6000 |
0.63 |
|
41.275 |
1.625 |
82.55 |
3.25 |
26.543 |
1.045 |
KM802048/KM802011 |
23 |
76.5 |
105 |
4500 |
6000 |
0.623 |
|
41.275 |
1.625 |
87.312 |
3.4375 |
30.162 |
1.1875 |
K3585/K3525 |
24 |
117 |
175 |
4500 |
6000 |
0.861 |
|
42.875 |
1.688 |
82.931 |
3.265 |
26.988 |
1.0625 |
K25577/K25523 |
19 |
71 |
101 |
4500 |
6000 |
0.646 |
|
44.45 |
1.75 |
82.931 |
3.265 |
23.812 |
0.9375 |
K25580/K25520 |
18 |
70 |
100 |
4500 |
6000 |
0.573 |
|
44.45 |
1.75 |
90.119 |
3.548 |
23 |
0.9055 |
K355X/K352 |
18 |
65 |
85 |
4500 |
6000 |
0.668 |
|
45.242 |
1.7812 |
73.431 |
2.891 |
19.558 |
0.77 |
LM102949/LM102910 |
14 |
47 |
70 |
4500 |
6000 |
0.318 |
|
45.618 |
1.796 |
82.931 |
3.265 |
23.812 |
0.9375 |
25590/25520 |
18 |
70 |
100 |
4500 |
6000 |
0.556 |
|
45.618 |
1.796 |
82.931 |
3.265 |
26.988 |
1.0625 |
K25590/K25523 |
18 |
70 |
100 |
4500 |
6000 |
0.589 | |
|
|
|
|
|
|
|
