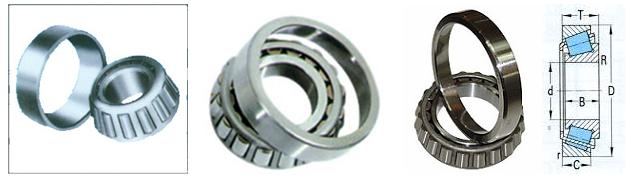

| 单列英制圆锥滚子轴承：内径85.725-266.7 |
|
 | 生产厂家： | 南京哈宁轴承制造有限公司 |
| | | 公司地址： | 江苏省南京市莫愁路195号 |
| | | 联系电话： | 025-86629730 |
| | | 公司传真： | 025-52300551 |
| | | 联 系 人： | 刘长岭 |
| | | 联系邮件： | lcl@8767.com |
| | | 产品价格： | ￥.00 |
| | | 网上报价： | ￥.00 |
| |
|
|
基 本 尺 寸 mm |
现 代 号 |
作 用 点
Function point |
基本额定负荷 kN |
极 限 转 速 rpm
Speed ratings |
重 量
Weight |
|
Principal dimension |
Basic load ratings |
|
d |
D |
T |
Designations |
a |
动dyc |
静stc |
脂润滑 Grease |
油润滑 Oil |
Kg |
|
mm |
英寸Inch |
mm |
英寸Inch |
mm |
英寸Inch |
Cr |
Cor |
|
85.725 |
3.375 |
133.35 |
5.25 |
30.162 |
1.1875 |
K497/K492A |
23 |
122 |
198 |
2200 |
3200 |
1.47 |
|
88.9 |
3.5 |
118.618 |
4.67 |
39.688 |
1.5625 |
HM518445/KM518410 |
33 |
260 |
350 |
2000 |
3000 |
2.86 |
|
88.9 |
3.5 |
152.4 |
6 |
39.688 |
1.5625 |
K593A/K592A |
39 |
167 |
286 |
1800 |
2700 |
2.8 |
|
88.9 |
3.5 |
190.5 |
7.5 |
57.15 |
2.25 |
HH221434/HH221410 |
24 |
405 |
610 |
1700 |
2400 |
7.87 |
|
90* |
3.5433 |
147* |
5.7874 |
40 |
|
KHM218248/KHM218210 |
31 |
250 |
320 |
2200 |
3200 |
2.51 |
|
92.075 |
3.625 |
150 |
9.9055 |
35.992 |
1.417 |
598A/593X |
34 |
167 |
286 |
1900 |
2800 |
2.37 |
|
92.075 |
3.625 |
152.4 |
6 |
39.688 |
1.5625 |
598A/592A |
34 |
211 |
315 |
1900 |
2800 |
2.67 |
|
95.25 |
3.75 |
152.4 |
6 |
39.688 |
1.5625 |
594A/592A |
34 |
207 |
310 |
1900 |
2800 |
2.54 |
|
95.25 |
3.75 |
152.4 |
6 |
39.688 |
1.5625 |
K594A/K592A |
34 |
207 |
310 |
1900 |
2800 |
2.54 |
|
95.25 |
3.75 |
152.4 |
6 |
39.688 |
1.5625 |
K594/K592A |
34 |
167 |
286 |
1900 |
2800 |
2.54 |
|
96.838 |
3.8125 |
148.43 |
5.8437 |
28.575 |
1.125 |
K42381/K42584 |
32 |
133 |
230 |
1900 |
2800 |
1.68 |
|
100* |
|
155* |
|
36 |
|
KJM720249/KJM720210 |
36 |
210 |
260 |
1900 |
2800 |
2.34 |
|
101.6 |
4 |
190.5 |
7.5 |
57.15 |
2.25 |
HH221449/HH221410 |
24 |
405 |
610 |
1800 |
2600 |
7.87 |
|
101.6 |
4 |
212.275 |
8.3573 |
66.675 |
2.625 |
HH224335/HH224310 |
48 |
595 |
900 |
1800 |
2600 |
11.1 |
|
110* |
|
165* |
|
35 |
|
KJM822049/KJM822010 |
39 |
177 |
320 |
1900 |
2800 |
2.63 |
|
110* |
|
180* |
|
47 |
|
JHM522649/JHM522610 |
40 |
290 |
510 |
1900 |
2800 |
4.56 |
|
110* |
|
180* |
|
47 |
|
KJM522649/KJM522610 |
40 |
290 |
510 |
1900 |
2800 |
4.56 |
|
114.3 |
4.5 |
228.6 |
9 |
53.975 |
2.125 |
KHM926740/KHM926710 |
69 |
365 |
590 |
1700 |
2400 |
9.78 |
|
120.65 |
4.75 |
273.05 |
10.75 |
82.55 |
3.25 |
HH926749/HH926710 |
76 |
740 |
940 |
1700 |
2400 |
22.1 |
|
127 |
5 |
234.95 |
9.25 |
63.5 |
2.5 |
K95500/K95925 |
51 |
470 |
810 |
1700 |
2400 |
11.6 |
|
133.35 |
5.25 |
196.85 |
7.75 |
46.038 |
1.8125 |
67390/67322 |
40 |
345 |
420 |
1600 |
2200 |
4.71 |
|
133.35 |
5.25 |
234.95 |
9.25 |
63.5 |
2.5 |
95525/95925 |
51 |
470 |
810 |
1500 |
2000 |
11.1 |
|
139.7 |
5.5 |
254 |
10 |
66.675 |
2.625 |
99550/99100 |
54 |
650 |
1100 |
1400 |
1900 |
14 |
|
152.4 |
6 |
268.288 |
10.5625 |
74.612 |
2.9375 |
KEE107060/K107105 |
58 |
610 |
1070 |
1200 |
1700 |
16.8 |
|
152.4 |
6 |
307.975 |
12.125 |
88.9 |
3.5 |
HH234048/HH234010 |
63 |
1080 |
1350 |
1100 |
1600 |
30.9 |
|
158.75 |
6.25 |
225.425 |
8.875 |
41.275 |
1.625 |
K46780/K46720 |
44 |
237 |
440 |
1100 |
1600 |
5.24 |
|
165.1 |
6.5 |
225.425 |
8.875 |
41.275 |
1.625 |
K46790/K46720 |
44 |
237 |
440 |
1100 |
1600 |
4.64 |
|
165.1 |
6.5 |
336.55 |
13.25 |
92.075 |
3.625 |
KHH437549/KHH437510 |
72 |
1200 |
1500 |
900 |
1300 |
37.4 |
|
170* |
|
230* |
|
39 |
|
KJM534149/KJM534110 |
44 |
263 |
550 |
1100 |
1600 |
4.45 |
|
171* |
|
240* |
|
46 |
|
JM734449/JM734410 |
49 |
325 |
675 |
1000 |
1400 |
6.28 |
|
172* |
|
240* |
|
46 |
|
KJM734449/KJM734410 |
52 |
325 |
675 |
1000 |
1400 |
6.28 |
|
174.625 |
6.875 |
288.925 |
11.375 |
63.5 |
2.5 |
HM237542/HM237510 |
54 |
740 |
850 |
1000 |
1400 |
16.9 |
|
174.625 |
6.875 |
288.925 |
11.375 |
63.5 |
2.5 |
KHM237542/KHM237510 |
54 |
740 |
850 |
1000 |
1400 |
16.9 |
|
177.8 |
7 |
247.65 |
9.75 |
47.625 |
1.875 |
67790/67720 |
52 |
380 |
520 |
1000 |
1400 |
7.12 |
|
177.8 |
7 |
260.35 |
10.25 |
53.975 |
2.125 |
M236849/M236810 |
47 |
460 |
560 |
1000 |
1400 |
9.08 |
|
177.8 |
7 |
288.925 |
11.375 |
63.5 |
2.5 |
KHM237545/KHM237510 |
54 |
740 |
850 |
900 |
1300 |
16.7 |
|
184.15 |
7.25 |
266.7 |
10.5 |
47.625 |
1.875 |
67883CL4/67820CL4 |
46 |
440 |
520 |
900 |
100 |
8.34 |
|
200* |
|
300* |
|
65 |
|
JHM840449/JHM840410 |
72 |
560 |
1240 |
850 |
1200 |
15.5 |
|
206.375 |
8.125 |
336.55 |
13.25 |
98.425 |
3.875 |
KH242649/KH242610 |
52 |
880 |
1400 |
850 |
1200 |
33 |
|
209.55 |
8.25 |
317.5 |
12.5 |
63.5 |
2.5 |
93825/93125 |
73 |
550 |
920 |
850 |
1200 |
16.6 |
|
209.55 |
8.25 |
317.5 |
12.5 |
63.5 |
2.5 |
K93825/K93125 |
73 |
550 |
1130 |
850 |
1200 |
16.6 |
|
237.33 |
9.3437 |
336.55 |
13.25 |
65.088 |
2.5625 |
KM246949/KM246910 |
61 |
640 |
1360 |
850 |
1200 |
17.5 |
|
241.3 |
9.5 |
444.5 |
17.5 |
101.6 |
4 |
EE923095/923175 |
83 |
1220 |
2000 |
750 |
1000 |
65.9 |
|
241.3 |
9.5 |
508 |
20 |
117.475 |
4.625 |
EE390095/390200 |
132 |
1220 |
2000 |
670 |
900 |
96.4 |
|
247.65 |
9.75 |
346.075 |
13.625 |
63.5 |
2.5 |
KM348449/KM348410 |
61 |
610 |
1310 |
850 |
1200 |
17.4 |
|
254* |
|
324.975* |
|
39 |
|
1-7009 |
71 |
315 |
700 |
850 |
1200 |
8.06 |
|
255* |
|
324.975* |
|
39 |
|
1-7009S |
71 |
315 |
580 |
850 |
1200 |
8.06 |
|
257.175 |
10.125 |
342.9 |
13.5 |
57.15 |
2.25 |
M349549/M349510 |
80 |
660 |
880 |
850 |
1200 |
14 |
|
260.35 |
10.25 |
422.275 |
16.625 |
86.121 |
3.3906 |
HM252348/HM252310 |
78 |
1000 |
1800 |
900 |
1300 |
42.8 |
|
266.7 |
10.5 |
355.6 |
14 |
57.15 |
2.25 |
LM451349/LM451310 |
62 |
650 |
800 |
850 |
1200 |
15.1 | |
|
|
|
|
|
|
|
