K25X30X13滚针轴承、K25X30X20滚针轴承、K25X30X25滚针轴承
|
轴径 |
轴承型号 |
重量 |
外形尺寸 |
额定负荷 |
极限转速 |
|
Bearing Designation |
Mass |
BoundaryDimensions |
BasicLoadRating |
Limiting Speed |
|
Shaft |
现型号 |
原型号 |
Approx |

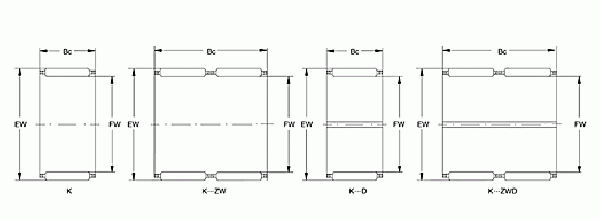

Fw |
EW |
BC |
动 |
静 |
油润滑 Oil |
|
CurrentCode |
OriginalCode |
Dynamic |
Static |
|
mm |
g |
mm |
N |
rpm |
|
15 |
K15X18X14 |
|
5.3 |
15 |
18 |
14 |
7500 |
11000 |
23000 |
|
K15X18X17 |
|
6.4 |
15 |
18 |
17 |
9600 |
15900 |
23000 |
|
K15X19X10 |
29242/15 |
5.1 |
15 |
19 |
10 |
7200 |
9000 |
22000 |
|
K15X19X13 |
39241/15 |
7 |
15 |
19 |
13 |
8300 |
9800 |
22000 |
|
K15X19X17 |
59241/15 |
8.8 |
15 |
19 |
17 |
10300 |
15000 |
22000 |
|
K15X19X24 ZW |
79241/15 |
10.5 |
15 |
19 |
24 |
12800 |
20100 |
22000 |
|
K15X22X13 |
29242/15 |
8.9 |
15 |
22 |
13 |
9700 |
11000 |
22000 |
|
K15X22X12 |
19243/15 |
10 |
15 |
22 |
12 |
10000 |
13000 |
22000 |
|
K15X21X15 |
39242/15 |
13 |
15 |
21 |
15 |
13800 |
16000 |
22000 |
|
K15X21X21 |
|
18.2 |
15 |
21 |
21 |
18000 |
24000 |
22000 |
|
16 |
K16X20X10 |
29241/16 |
5.7 |
16 |
20 |
10 |
7600 |
9700 |
22000 |
|
K16X20X13 |
39241/16 |
7.1 |
16 |
20 |
13 |
8700 |
11300 |
22000 |
|
K16X20X17 |
59241/16 |
9.2 |
16 |
20 |
17 |
11200 |
16300 |
22000 |
|
K16X21X10 |
19242/16 |
3.7 |
16 |
21 |
10 |
9000 |
12000 |
22000 |
|
K16X22X12 |
19243/16 |
10.4 |
16 |
22 |
12 |
11000 |
12000 |
21000 |
|
K16X22X13 |
|
11.9 |
16 |
22 |
13 |
12000 |
13400 |
21000 |
|
K16X22X16 |
|
13.7 |
16 |
22 |
16 |
14300 |
17000 |
21000 |
|
K16X22X20 |
49243/16 |
16.7 |
16 |
22 |
20 |
18000 |
22300 |
21000 |
|
K16X23X14 |
19244/16 |
20 |
16 |
23 |
14 |
19000 |
21000 |
19000 |
|
K16X24X20 |
19245/16 |
24.9 |
16 |
24 |
20 |
21100 |
23000 |
20000 |
|
17 |
K17X21X10 |
29241/17 |
5.6 |
17 |
21 |
10 |
7900 |
10100 |
21000 |
|
K17X21X13 |
39241/17 |
7.5 |
17 |
21 |
13 |
10000 |
14100 |
21000 |
|
K17X21X17 |
59241/17 |
9.5 |
17 |
21 |
17 |
12000 |
17400 |
21000 |
|
K17X23X14 |
29243/17 |
11.5 |
17 |
23 |
14 |
11000 |
15000 |
21000 |
|
18 |
K18X22X10 |
29241/18 |
6.1 |
18 |
22 |
10 |
8200 |
9900 |
20000 |
|
K18X22X13 |
39241/18 |
7.7 |
18 |
22 |
13 |
9000 |
12100 |
20000 |
|
K18X22X17 |
59241/18 |
10.8 |
18 |
22 |
17 |
11900 |
17600 |
20000 |
|
K18X24X12 |
19243/18 |
11.6 |
18 |
24 |
12 |
11200 |
12900 |
20000 |
|
K18X24X13 |
|
12.6 |
18 |
24 |
13 |
12900 |
14900 |
20000 |
|
K18X24X13.5 |
|
13 |
18 |
24 |
13.5 |
12900 |
14900 |
20000 |
|
K18X24X20 |
49243/18 |
19 |
18 |
24 |
20 |
20000 |
26500 |
20000 |
|
K18X25X14 |
|
14.9 |
18 |
25 |
14 |
16500 |
18800 |
20000 |
|
K18X25X22 |
|
24.3 |
18 |
25 |
22 |
22900 |
28400 |
20000 |
|
K18X26X14 |
|
19 |
18 |
26 |
14 |
18000 |
20000 |
18000 |
|
K18X28X16 |
19244/18 |
24 |
18 |
28 |
16 |
19000 |
18400 |
19000 |
|
19 |
K19X23X13 |
|
8.2 |
19 |
23 |
13 |
9300 |
13000 |
20000 |
|
K19X23X17 |
|
11.1 |
19 |
23 |
17 |
12000 |
18600 |
20000 | |
