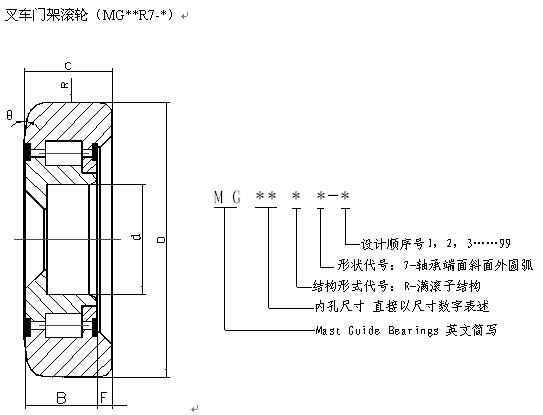

MG28R7-1叉车轴承、MG28R7-1门架滚轮轴承、MG28R7-1叉车门架滚轮轴承
|
|
|
轴承型号 |
尺 寸（ mm ） |
额定载荷（ KN ） |
|
d |
D |
C |
B |
F |
R |
θ /r |
Cr |
Cor |
|
MG28R7-1 |
28 |
77.5 |
27 |
22.5 |
3 |
500 |
11 ° |
54.9 |
62.8 |
|
MG30R7-1 |
30 |
75.2 |
24 |
20 |
3 |
500 |
10 ° |
57.1 |
67.1 |
|
MG30R7-2 |
30 |
75.45 |
24 |
20 |
3 |
500 |
10 ° |
57.1 |
67.1 |
|
MG30R7-3 |
30 |
75.95 |
24 |
20 |
3 |
500 |
10 ° |
57.1 |
67.1 |
|
MG30R7-6 |
30 |
78.4 |
24 |
20.5 |
3 |
500 |
10 ° |
57.1 |
67.1 |
|
MG30R7-7 |
30 |
78.6 |
24 |
20.5 |
3 |
500 |
10 ° |
57.1 |
67.1 |
|
MG30R7-8 |
30 |
78.8 |
24 |
20.5 |
3 |
500 |
10 ° |
57.1 |
67.1 |
|
MG36R7-1 |
36 |
90 |
29 |
23.5 |
5 |
500 |
8 ° |
63.1 |
79.7 |
|
MG36R7-2 |
36 |
90.2 |
29 |
23.5 |
5 |
500 |
8 ° |
63.1 |
79.7 |
|
MG36R7-3 |
36 |
90.5 |
29 |
23.5 |
5 |
500 |
8 ° |
63.1 |
79.7 |
|
MG42R7-1 |
42 |
107.5 |
34 |
28 |
5.5 |
500 |
8 ° |
95.6 |
115.3 |
|
MG42R7-2 |
42 |
110 |
29.5 |
27 |
1 |
500 |
16 ° |
95.6 |
115.3 |
|
MG42R7-5 |
42 |
106.2 |
34 |
28 |
5.5 |
500 |
8 ° |
95.6 |
115.3 |
|
MG44R7-1 |
44 |
107.5 |
34 |
33.5 |
|
500 |
r5 |
116 |
141 | | |
