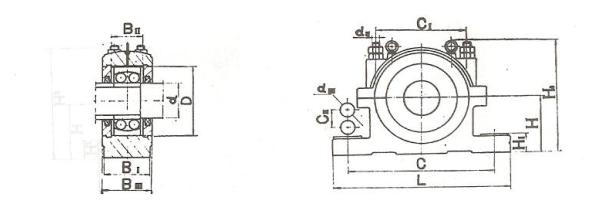

GZQ4-360部分式轴承座参数
轴承座 |
基本尺寸 |
型号 |
d |
D |
BⅡ |
BⅢ |
B1 |
H |
H1 |
H0 |
L |
C |
C1 |
CⅡ |
dⅡ |
dⅢ |
1 |
2 |
3 |
4 |
5 |
GZQ4-130 |
46 |
56 |
71 |
82 |
|
130 |
118 |
145 |
130 |
125 |
40 |
295 |
350 |
300 |
175 |
60 |
20 |
22 |
GZQ4-140 |
51 |
61 |
77 |
87 |
|
140 |
118 |
145 |
130 |
125 |
40 |
295 |
350 |
300 |
175 |
60 |
20 |
22 |
GZQ4-150 |
56 |
66 |
82 |
97 |
|
150 |
118 |
145 |
130 |
140 |
50 |
320 |
400 |
340 |
205 |
60 |
20 |
22 |
GZQ4-160 |
61 |
71 |
87 |
97 |
|
160 |
118 |
145 |
130 |
140 |
50 |
320 |
400 |
340 |
205 |
60 |
20 |
22 |
GZQ4-170 |
77 |
92 |
102 |
|
|
170 |
118 |
145 |
130 |
140 |
50 |
320 |
400 |
340 |
205 |
60 |
20 |
22 |
GZQ4-180 |
66 |
82 |
97 |
102 |
|
180 |
122 |
155 |
140 |
160 |
60 |
360 |
460 |
400 |
240 |
65 |
24 |
26 |
GZQ4-190 |
71 |
87 |
97 |
|
|
190 |
122 |
155 |
140 |
160 |
60 |
360 |
460 |
400 |
240 |
65 |
24 |
26 |
GZQ4-200 |
77 |
92 |
102 |
112 |
122 |
200 |
122 |
155 |
140 |
160 |
60 |
360 |
460 |
400 |
240 |
65 |
24 |
26 |
GZQ4-215 |
97 |
112 |
|
|
|
215 |
152 |
185 |
165 |
180 |
70 |
395 |
530 |
460 |
280 |
80 |
30 |
32 |
GZQ4-230 |
122 |
|
|
|
|
230 |
152 |
185 |
165 |
180 |
70 |
395 |
530 |
460 |
280 |
80 |
30 |
32 |
GZQ4-240 |
92 |
102 |
153 |
|
|
240 |
157 |
190 |
170 |
200 |
70 |
345 |
560 |
485 |
310 |
80 |
30 |
32 |
GZQ4-250 |
97 |
132 |
143 |
|
|
250 |
157 |
190 |
170 |
200 |
70 |
345 |
560 |
485 |
310 |
80 |
30 |
32 |
GZQ4-260 |
97 |
112 |
163 |
|
|
260 |
157 |
190 |
170 |
200 |
70 |
345 |
560 |
485 |
310 |
80 |
30 |
32 |
GZQ4-270 |
143 |
153 |
|
|
|
270 |
164 |
205 |
185 |
220 |
80 |
475 |
650 |
570 |
350 |
92 |
36 |
40 |
GZQ4-280 |
102 |
122 |
163 |
173 |
|
280 |
164 |
205 |
185 |
220 |
80 |
475 |
650 |
570 |
350 |
92 |
36 |
40 |
GZQ4-290 |
153 |
183 |
|
|
|
290 |
164 |
205 |
185 |
220 |
80 |
475 |
650 |
570 |
350 |
92 |
36 |
40 |
GZQ4-300 |
132 |
173 |
|
|
|
300 |
164 |
205 |
185 |
240 |
90 |
529 |
680 |
600 |
380 |
92 |
36 |
40 |
GZQ4-310 |
112 |
163 |
183 |
|
|
310 |
164 |
205 |
185 |
240 |
90 |
529 |
680 |
600 |
380 |
92 |
36 |
40 |
GZQ4-320 |
143 |
173 |
|
|
|
320 |
164 |
205 |
185 |
240 |
90 |
529 |
680 |
600 |
380 |
92 |
36 |
40 |
GZQ4-340 |
122 |
153 |
173 |
203 |
|
340 |
189 |
230 |
210 |
275 |
100 |
599 |
780 |
680 |
435 |
108 |
42 |
46 |
GZQ4-360 |
132 |
163 |
183 |
223 |
|
360 |
189 |
230 |
210 |
275 |
100 |
599 |
780 |
680 |
435 |
108 |
42 |
46 |
GZQ4-380 |
143 |
173 |
|
|
|
380 |
224 |
265 |
240 |
300 |
110 |
644 |
880 |
770 |
485 |
128 |
48 |
54 |
GZQ4-400 |
153 |
173 |
203 |
223 |
243 |
400 |
224 |
265 |
240 |
300 |
110 |
644 |
880 |
770 |
485 |
128 |
48 |
54 |
|
|
|
