UCPH208外球面轴承带座、UCPH209外球面轴承带座、UCPH210外球面轴承带座、UCPH211外球面轴承带座、UCPH212外球面轴承带座
|
Bearing No |
shaft
d(mm) |

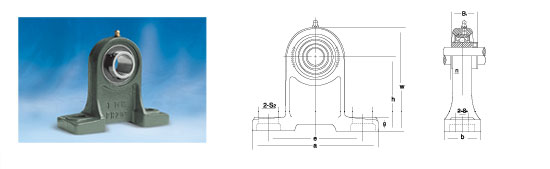

Dimensions (mm) |
Boltsize (mm) |
Weight
(kg)
|
|
h |
a |
e |
b |
S1 |
S2 |
g |
w |
Bi |
n |
|
UCPH202 |
15 |
70 |
127 |
95 |
40 |
13 |
19 |
15 |
100 |
27.4 |
11.5 |
10 |
0.96 |
|
UCPH203 |
17 |
70 |
127 |
95 |
40 |
13 |
19 |
15 |
100 |
27.4 |
11.5 |
10 |
0.96 |
|
UCPH204 |
20 |
70 |
127 |
95 |
40 |
13 |
19 |
15 |
101 |
31 |
12.7 |
10 |
0.96 |
|
UCPH205 |
25 |
80 |
140 |
105 |
50 |
13 |
19 |
16 |
114 |
34.11 |
14.3 |
10 |
1.20 |
|
UCPH206 |
30 |
90 |
165 |
121 |
50 |
17 |
21 |
18 |
130 |
38.1 |
15.9 |
14 |
1.60 |
|
UCPH207 |
35 |
95 |
167 |
127 |
60 |
17 |
21 |
19 |
140 |
42.9 |
17.5 |
14 |
2.00 |
|
UCPH208 |
40 |
100 |
184 |
137 |
70 |
17 |
25 |
19 |
149 |
49.2 |
19.0 |
14 |
2.70 |
|
UCPH209 |
45 |
105 |
190 |
146 |
70 |
17 |
25 |
20 |
157 |
49.2 |
19.0 |
14 |
3.00 |
|
UCPH210 |
50 |
110 |
206 |
159 |
70 |
20 |
25 |
22 |
165 |
51.6 |
19.0 |
16 |
3.50 |
|
UCPH211 |
55 |
120 |
219 |
171 |
75 |
20 |
25 |
23 |
181 |
55.6 |
22.2 |
16 |
5.47 |
|
UCPH212 |
60 |
130 |
235 |
186 |
85 |
20 |
25 |
24 |
197 |
65.1 |
25.4 |
16 |
6.31 |
|
