UCWP201外球面轴承带座、UCWP202外球面轴承带座、UCWP203外球面轴承带座、UCP201外球面轴承带座、UCP202外球面轴承带座、UCP203外球面轴承带座、UCP204外球面轴承带座

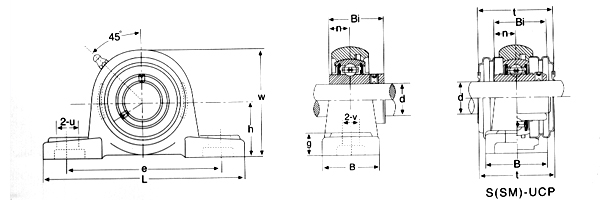

Bearing No	Shaft d(mm)	Dimensions (mm)											bolt sitemm	Weight (kg)
		h	L	e	B	v	u	g	w	Bi	n	t
UCWP201	12	30.2	125	95	32	13	19	13	57	27.4	11.5	M10	M10	0.72
UCWP202	15	30.2	125	95	32	13	19	13	57	27.4	11.5	M10	M10	0.66
UCWP203	17	30.2	125	95	32	13	19	13	57	27.4	11.5	M10	M10	0.66
UCP201	12	30.2	127	95	38	13	19	15	61	31	12.7	M10	M10	0.76
UCP202	15	30.2	127	95	38	13	19	15	61	31	12.7	M10	M10	0.74
UCP203	17	30.2	127	95	38	13	19	15	61	31	12.7	M10	M10	0.72
UCP204	20	33.3	127	95	37	13	19	14	64	31	12.7	M10	M10	0.7
UCP205	25	36.5	140	105	38	13	19	15	69.5	34.1	14.3	M10	M10	0.76
UCP206	30	42.9	160	121	44	17	21	16	82	38.1	15.9	M12	M12	1.25
UCP207	35	47.6	167	127	48	17	21	17	92	42.9	17.5	M12	M12	1.55
UCP208	40	49.2	180	137	52	17	21	18	98	49.2	19	M12	M12	1.9
UCP209	45	54	189	146	54	17	21	20	106	49.2	19	M12	M12	2.2
UCP210	50	57.2	204	159	60	20	25	21	112	51.6	19	M16	M16	2.75
UCP211	55	63.5	217	171	60	20	25	22	125	55.6	22.2	M16	M16	3.3
UCP212	60	69.9	238	184	70	20	25	24	137	65.1	25.4	M16	M16	4.7
UCP213	65	76.2	262	203	70	25	30	26	149	65.1	25.4	M20	M20	5.6
UCP214	70	79.4	266	210	72	25	30	27	155	74.6	30.2	M20	M20	6.6
UCP215	75	82.6	274	217	74	25	30	28	162	77.8	33.3	M20	M20	7.3
UCP216	80	88.9	292	232	78	25	30	30	174	82.6	33.3	M20	M20	9
UCP217	85	95.2	310	247	83	25	30	32	186	85.7	34.1	M20	M20	10.8
UCP218	90	101.6	326	262	88	27	33	33	198	96	39.7	M22	M22	13
