滑动轴承座ZHC2-120,ZHC2-130,ZHC2-140,ZHC2-160

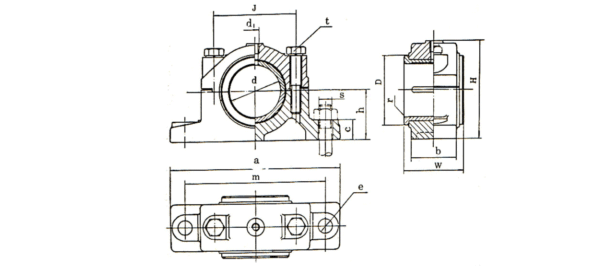

型号	d H8	D	W	h h12	b	a	m	c	H	J	U	v	t	r	s	重量 （公斤）
ZHC2-30	30	50	60	50	40	180	140	25	85	65	13	17	M10	2.0	M12	2.5
ZHC2-35	35	55	60	60	40	210	160	30	100	75	18	24	M12	2.5	M16	3.3
ZHC2-40	40	60	70	60	50	210	160	30	102	75	18	24	M12	2.5	M16	4.0
ZHC2-45	45	65	70	70	50	240	180	35	118	80	18	24	M12	2.5	M16	5.7
ZHC2-50	50	70	80	70	55	240	180	35	118	85	18	24	M12	2.5	M16	6.5
ZHC2-55	55	75	80	80	55	270	210	35	140	100	22	30	M16	2.5	M20	8.9
ZHC2-60	60	80	80	80	55	270	210	35	140	100	22	30	M16	2.5	M20	8.9
ZHC2-65	65	95	80	90	55	300	240	45	150	115	22	30	M16	2.5	M20	10.8
ZHC2-70	70	100	90	90	65	300	240	45	155	120	22	30	M16	2.5	M20	12.0
ZHC2-75	75	105	90	100	65	330	270	45	168	130	26	35	M16	4.0	M24	14.0
ZHC2-80	80	110	90	100	65	330	270	45	172	135	26	35	M20	4.0	M24	14.0
ZHC2-85	85	115	100	100	75	360	300	45	175	140	26	35	M20	4.0	M24	18.5
ZHC2-90	90	120	100	100	75	360	300	45	178	150	26	35	M20	4.0	M24	19.5
ZHC2-95	95	130	110	110	80	380	310	50	188	160	26	36	M20	4.0	M24	23.2
ZHC2-100	100	140	110	110	80	380	310	50	195	170	26	36	M24	4.0	M24	23.8
ZHC2-110	110	150	120	110	90	400	330	50	200	180	26	36	M24	5.0	M24	27.3
ZHC2-120	120	160	130	120	100	430	340	55	215	190	26	36	M24	5.0	M24	39.7
ZHC2-130	130	175	140	120	100	460	360	55	220	200	27	39	M24	5.0	M24	42.6
ZHC2-140	140	190	150	130	110	480	380	60	250	220	33	48	M24	5.0	M30	56.3
ZHC2-160	160	210	170	130	130	590	460	70	288	250	39	59	M30	5.0	M36	98.3
