轴承F3-8M、轴承F4-9M、轴承F4-10M、轴承F5-10M、轴承F5-11M、轴承F5-12M、轴承F6-12M、轴承F6-14M

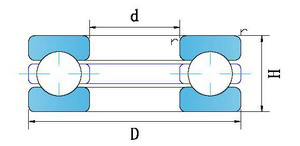

FM系列（带沟道）
型号 |
内轮内径d |
外轮外径D |
外轮内径d1 |
内轮外径D1 |
高度H |
基本额定动负荷 Cr(N) |
基本额定静负荷 Cor(N) |
极限转速 |
钢球 |
| rpm |
| 脂润滑 |
油润滑 |
个数 |
直径 |
| F3-8M |
3 |
8 |
3.2 |
7.8 |
3.5 |
600 |
480 |
11000 |
15000 |
6 |
1.588 |
| F4-9M |
4 |
9 |
4.2 |
8.8 |
4 |
800 |
520 |
8000 |
12000 |
6 |
1.588 |
| F4-10M |
4 |
10 |
4.2 |
9.8 |
4 |
658 |
580 |
6000 |
10000 |
6 |
1.588 |
| F5-10M |
5 |
10 |
5.2 |
9.8 |
4 |
950 |
830 |
5100 |
8100 |
7 |
1.588 |
| F5-11M |
5 |
11 |
5.2 |
10.8 |
4.5 |
988 |
880 |
5000 |
8000 |
7 |
1.588 |
| F5-12M |
5 |
12 |
5.2 |
11.8 |
4 |
988 |
880 |
5000 |
8000 |
7 |
1.588 |
| F6-12M |
6 |
12 |
6.2 |
11.8 |
4.5 |
1600 |
1255 |
5000 |
7000 |
8 |
2 |
| F6-14M |
6 |
14 |
6.25 |
13.8 |
5 |
1800 |
1588 |
4000 |
7000 |
8 |
2.381 |
| F7-13M |
7 |
13 |
7.2 |
16.8 |
4.5 |
1422 |
1255 |
4000 |
7000 |
9 |
2 |
| F7-15M |
7 |
15 |
7.2 |
14.8 |
5 |
2200 |
2000 |
3600 |
7100 |
8 |
2.5 |
| F7-17M |
7 |
17 |
7.2 |
16.8 |
6 |
2600 |
2256 |
3500 |
7000 |
8 |
2.381 |
| F8-16M |
8 |
16 |
8.2 |
15.8 |
5 |
2500 |
3000 |
4000 |
8000 |
9 |
3 |
| F8-19M |
8 |
19 |
8.2 |
18.8 |
7 |
3452 |
3000 |
3000 |
5000 |
8 |
3.175 |
| F9-20M |
9 |
20 |
9.2 |
19.8 |
7 |
3356 |
2999 |
2500 |
4500 |
8 |
3.175 |
| F10-18M |
10 |
18 |
10.2 |
17.8 |
5.5 |
2230 |
2721 |
2500 |
4500 |
10 |
2.381 | |
